4.8 Maintenance
The page displays the following tabs relative to system configurations as Figure 4-7-1 is shown below:.

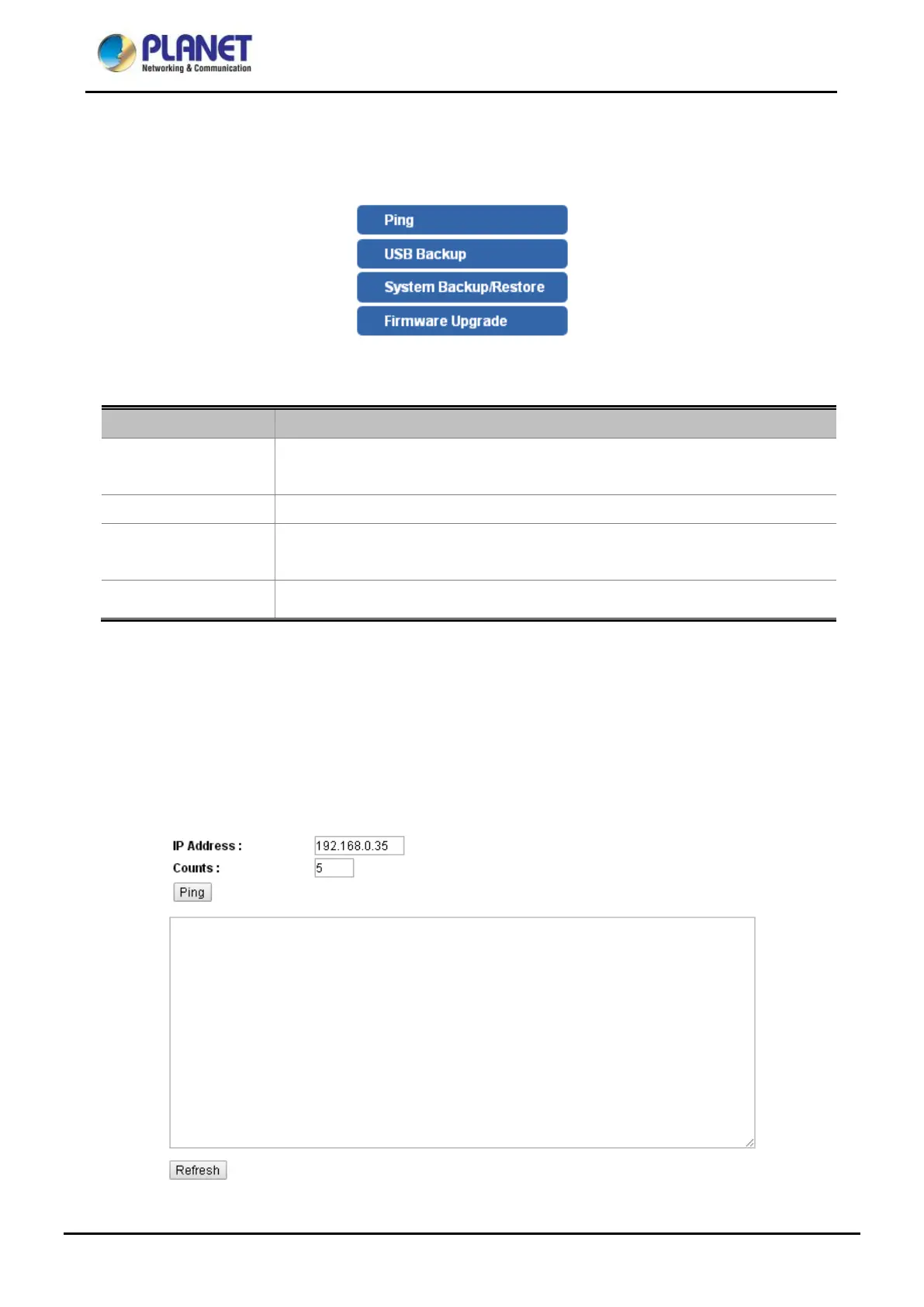

Figure 4-7-1: Maintenance Function Menu
The page includes the following information:
Object Description
Ping
Allow you to issue ICMP PING packets to troubleshoot IP. Explained in
section 4.7.1.
USB Backup Backup and restore setting file via USB HDD. Explained in section 4.7.2.
System
Backup/Restoration
Backup and restore setting file via PC. Explained in section 4.7.3.
Firmware Firmware upgrade. Explained in section 4.7.4.
4.8.1 Ping
This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues.
After you press “Ping”, 5 ICMP packets are transmitted, and the sequence number and roundtrip time are
displayed upon reception of a reply. The page refreshes automatically until responses to all packets are
received, or until a timeout occurs. The ICMP Ping screen in Figure 4-7-2 appears. Table 4-7-1 describes the
ICMP Ping Objects Screen of Renewable Energy Switch.
Figure 4-7-2: ICMP Ping Web Page Screen

Planet Switch Specifications

General

Form Factor	Desktop
Port Speed	10/100/1000 Mbps
MAC Address Table	8K
Switching Capacity	16 Gbps
Operating Temperature	0 to 50°C
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
