User Manual of WNAP-6325
-20-

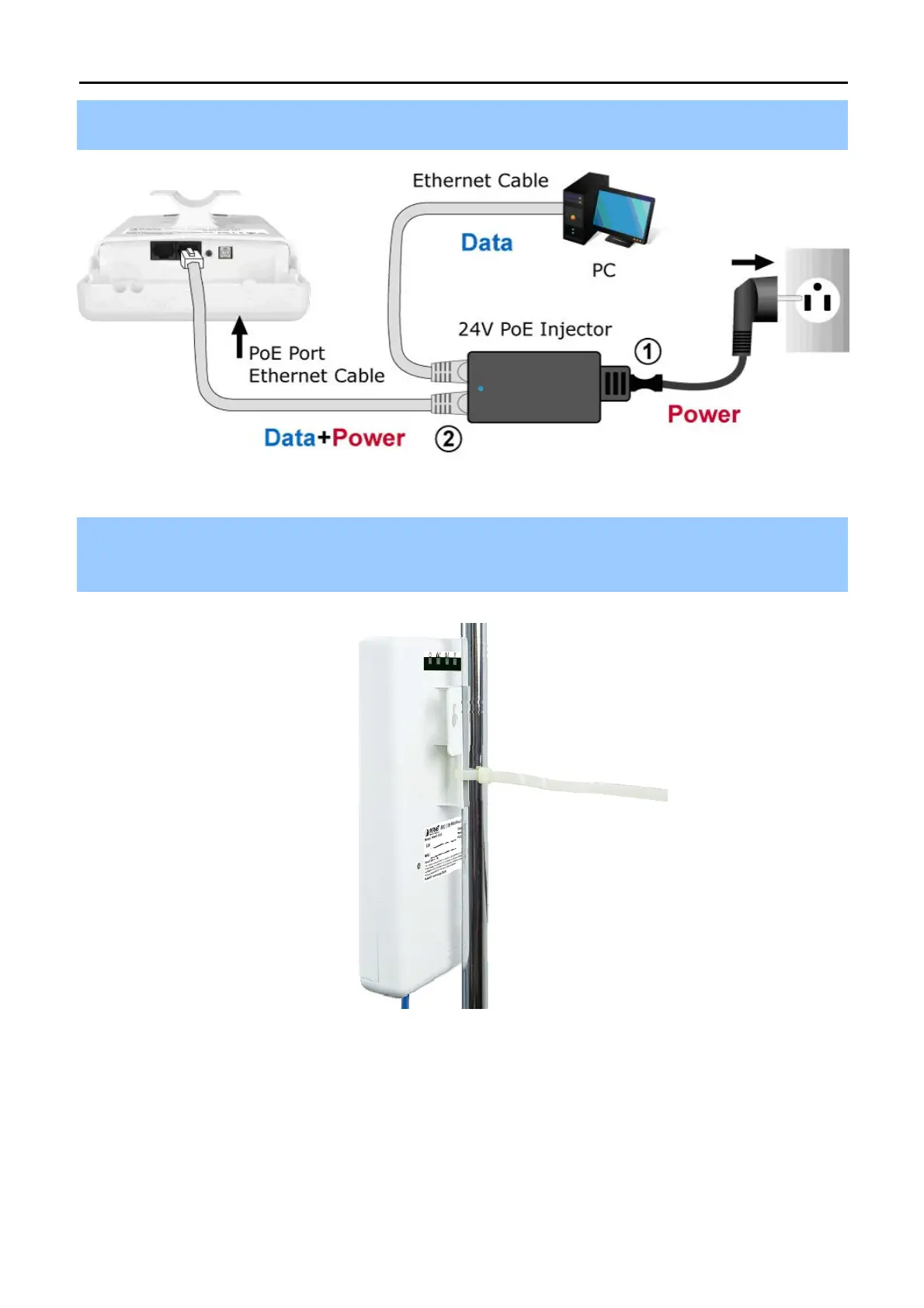

Step 3. Plug the power cord into the DC port and the other end into the AC socket. Then, plug the RJ45 cable
(as shown in picture 4 under Step 1) into the POE port of the PoE injector.
Figure 3-3 Connect the PoE injector
Step 4. Pole Mounting:
Place the strap through the slot on the back of the WNAP-6325 and then around the pole. Tighten the strap to
secure the WNAP-6325.
Figure 3-4 Pole Mounting
