Planet WNAP-6325 User Manual

User Manual of WNAP-6325
-14-

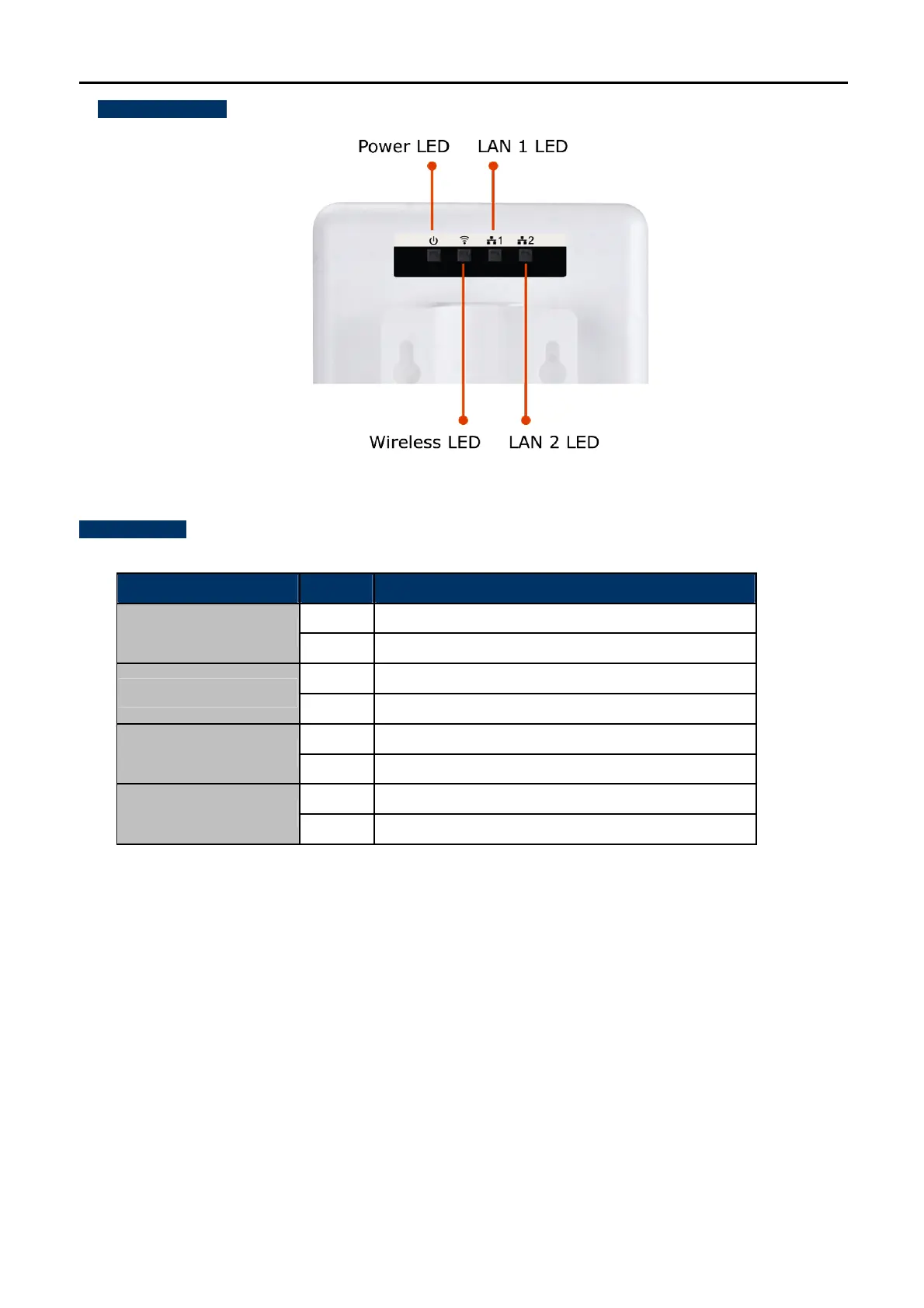

Rear Panel – LED
Figure 2-2 LED
LED Definition
LED State Meaning
On System On
Power
Off System Off
On Wi-Fi On
Wireless
Off Wi-Fi Off
On Port linked.
LAN 1
Off No link.
On Port linked.
LAN 2
Off No link.
Table 2-1 The LED indication
2.1.1 The Bottom Panel – Port
The Bottom panel provides the physical connectors connected to the power adapter and any other network
device. Figure 2-3 shows the bottom panel of the WNAP-7325.

Planet WNAP-6325 Specifications

General

Brand	Planet
Model	WNAP-6325
Category	Wireless Access Point
Language	English
