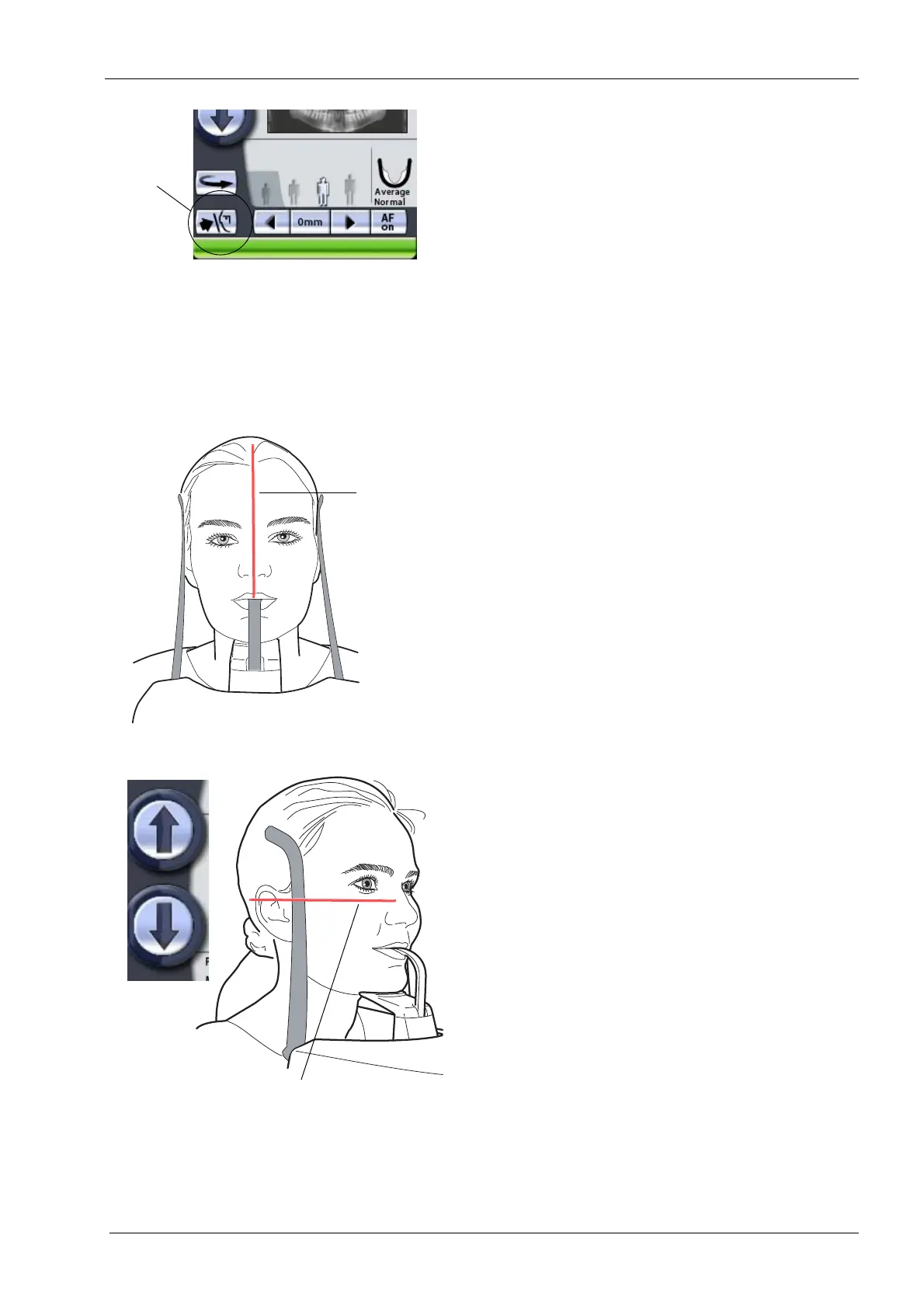

Close the temple supports by touching the temple support
button.
The three patient positioning lights will automatically
switch on when you select the exposure program. They
will switch off after four minutes. If the lights go out before
you have positioned the patient, you can touch either of
the target position arrows to switch the lights back on.
Stand behind the patient and make sure that the patient’s
shoulders are level and the neck muscles relaxed.
Position the patient’s head so that the midsagittal plane
coincides with the midsagittal plane light beam. Make
sure that the patient is looking straight ahead as the light
may appear to be correctly positioned but the patient’s
head could be turned slightly to one side.
Position the patient’s head so that the Frankfort plane
coincides with the Frankfort plane light beam.
To do this support the back of the patient’s head with your
hand and then adjust the tilt of the patient’s head by
raising or lowering the unit with the height adjusting
buttons. The patient’s back should be straight. If
necessary, stretch and straighten the patient’s neck by
moving the unit up slightly.
Temple
support
button
ProOne_004.eps
Midsagittal
plane light
Frankfort plane light
Height
adjusting
buttons
