Planmeca ProOne - Configuring Post-Exposure Functions (P2300)

14 SETTINGS
86 Planmeca ProOne User’s Manual
14.2.3 Functions after exposure (P2300)

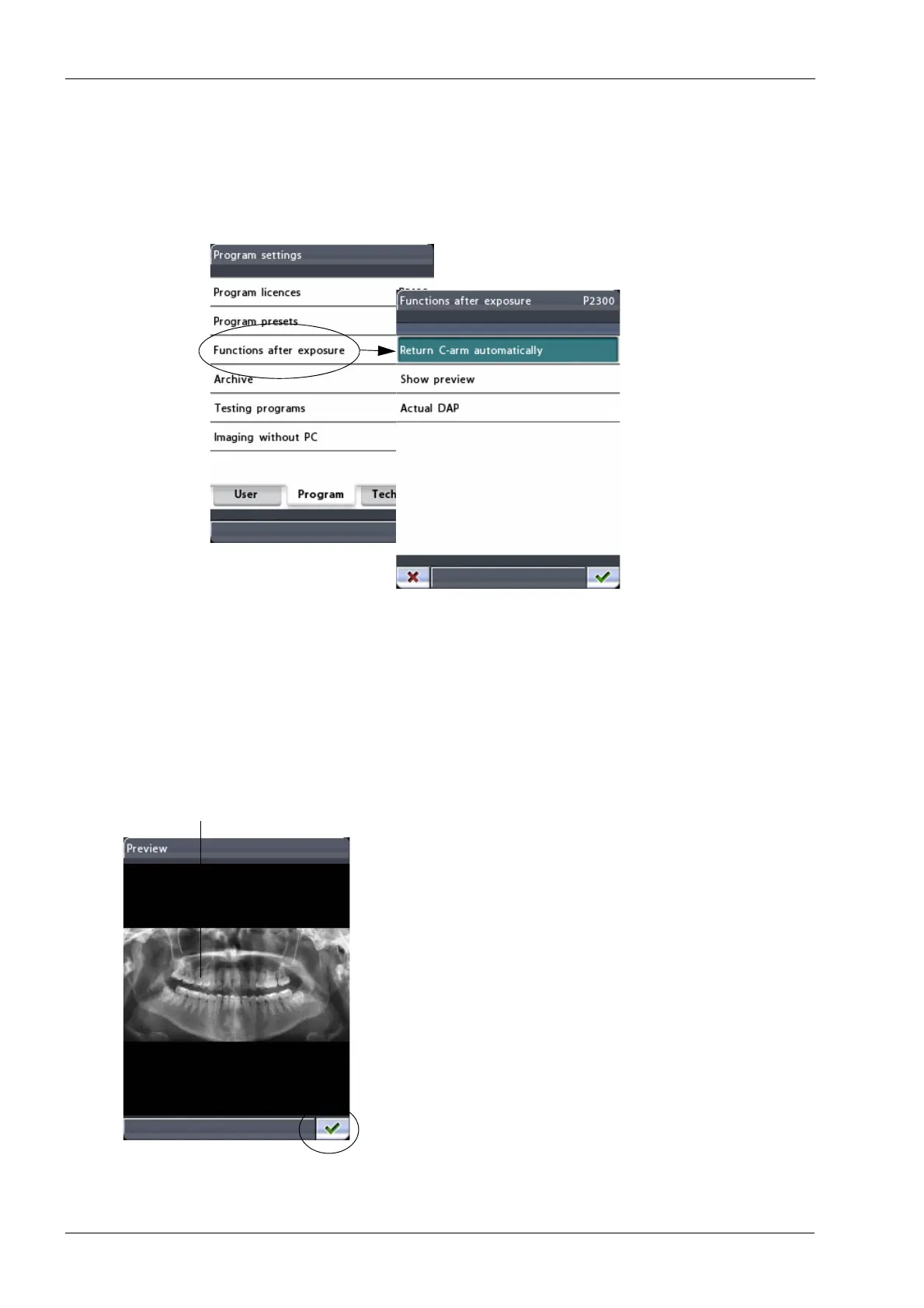

On the Program settings display, select the option
Functions after exposure (P2300) . The Functions after
exposure (P2300)
display will appear. Here you can
specify how the X-ray unit will function after an exposure
has been taken.
• Return C-arm automatically
Touch the
Return C-arm automatically field to set the X-
ray unit so that the C-arm will automatically return to the
patient entry position at the end of an exposure cycle.
Note, however, that the automatic function works only if
the exposure button is pressed and held down for the
entire duration of the exposure.
The
Return C-arm automatically field is highlighted when
the function is switched on. To switch off the function,
touch the field again.
• Show preview
Touch the
Show preview field to set the X-ray unit so that
a preview of the image is shown on the control panel after
exposure. This option allows you to evaluate the image
immediately after you have taken it.
The
Show preview field is highlighted when the function is
switched on. To switch off the function, touch the field
again.
The preview image can be zoomed in and out to resize it,
or dragged to move the image on the display. Touching
the image will zoom in and show you the image in more
detail at the point that was touched. Touching the image
again will zoom out and bring you back to the original
size. Dragging the zoomed image with your finger will
move the image in the desired direction on the display.
Touch the green check mark button in the bottom right
corner of the
Preview display to return to the main display.
Drag = Move zoomed image along display
Touch = Zoom in
Touch again = Zoom out
