INSTALLING THE PYLON AND ARM ACCESSORIES
96 Planmeca Sovereign
Installation manual
Planmeca Vision monitor: attaching the covers and connecting the cables

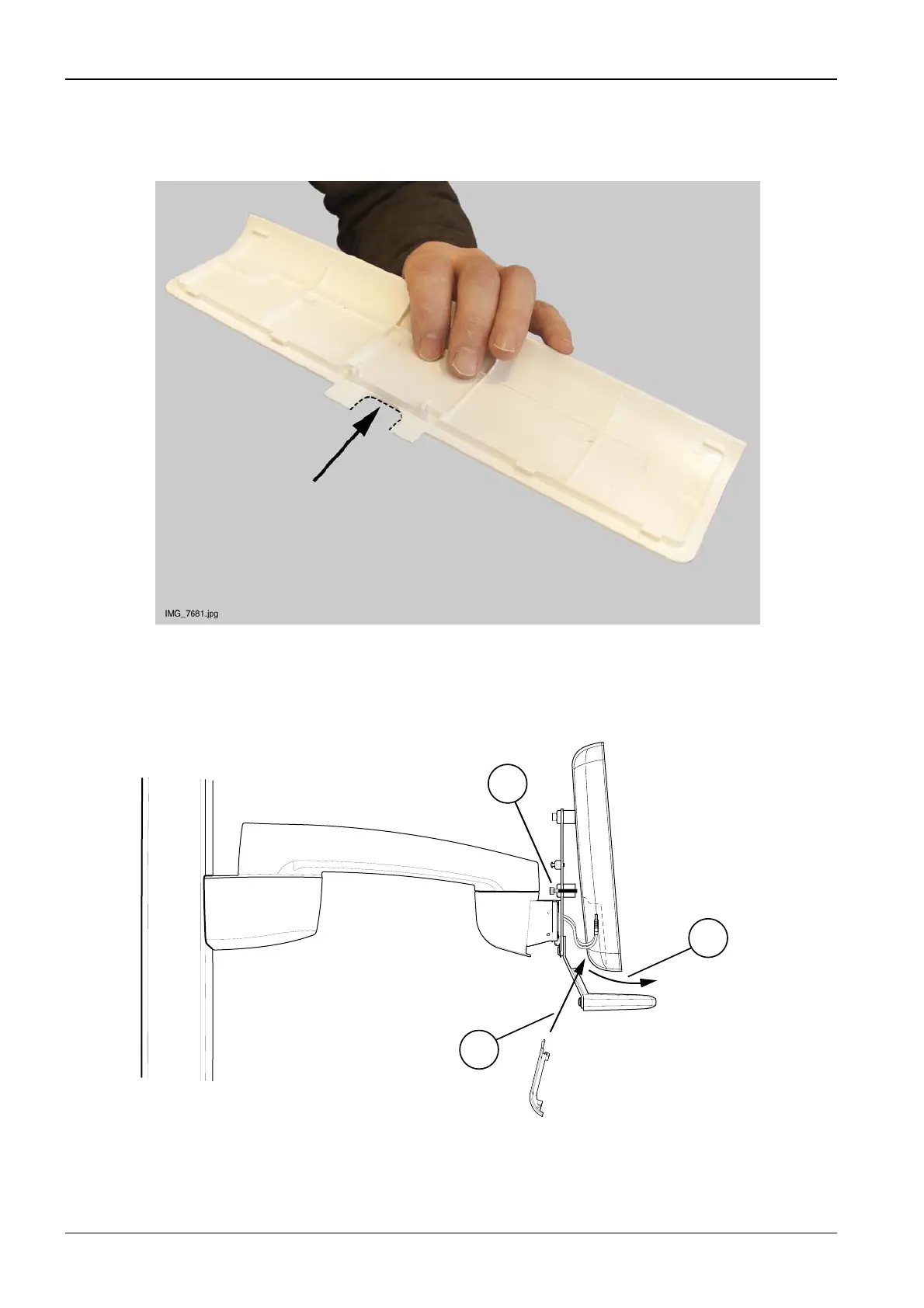

Cut an opening to the monitor back cover as shown on the figure below.
Attach the monitor back cover to its position as follows. Loosen the lower attachment screws
(1) and turn the monitor slightly upwards (2). Attach the cover plate to its position with one
attachment screw.
Sov_Barco_cover.eps
1
2
3
