Planmeca Sovereign - Patient Chair Installation; Chair Attachment to Cuspidor

Planmeca Sovereign 125
INSTALLING THE ASSISTANT ELEMENT
Installation manual

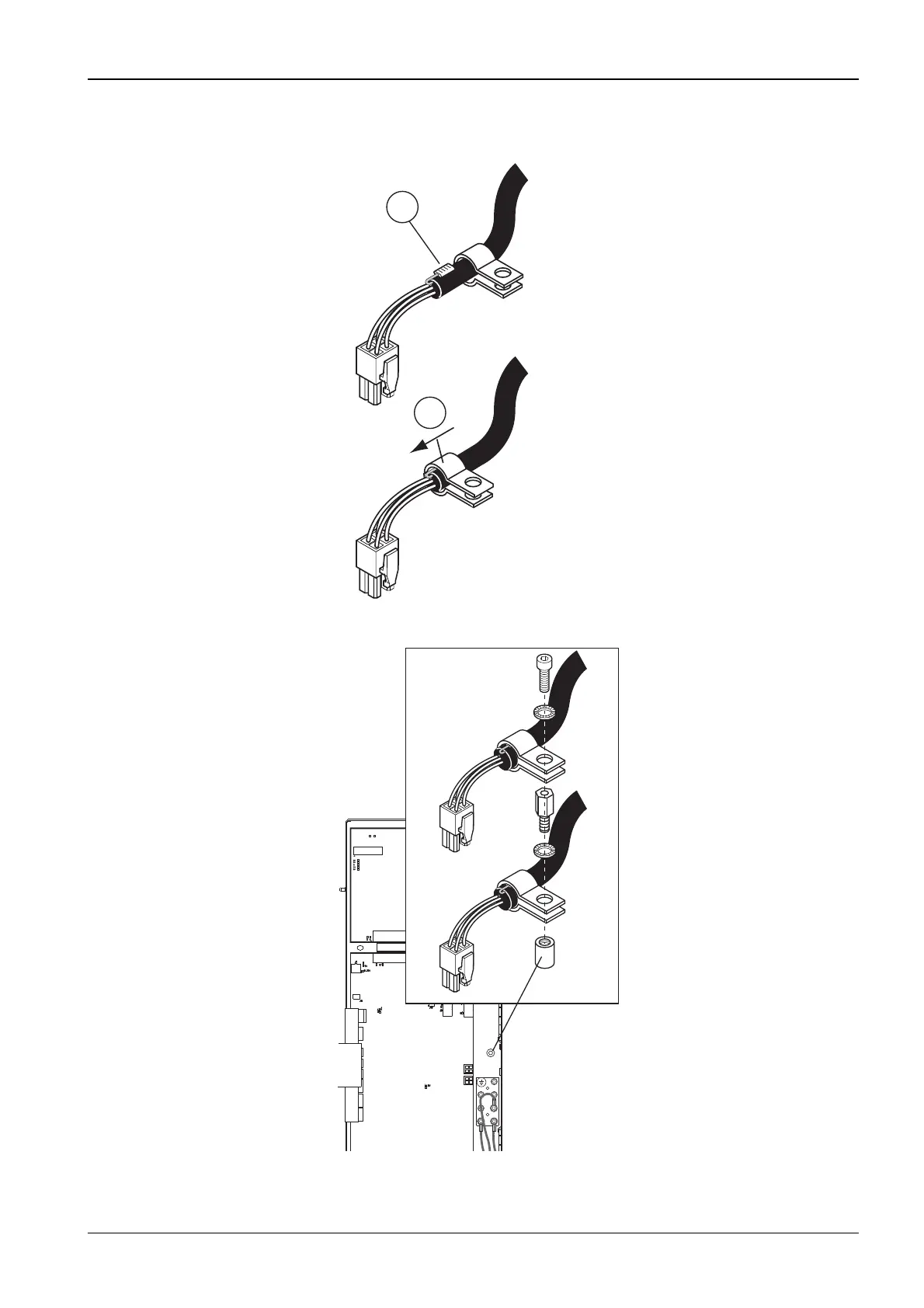

Check that the ground clip is correctly positioned (1) and slide the grounding collar over the
clip (2).
Secure the Selv cable connected to connector J2 as shown on the figure below.
1
2
S254.eps
J14
J2
J2
J14
S137_1 .eps
OP-Arm SELV Cable
Assistant-Arm
SELV Cable
