Planmeca Sovereign - Page 33

Planmeca Sovereign 29
INSTALLING THE CUSPIDOR
Installation manual

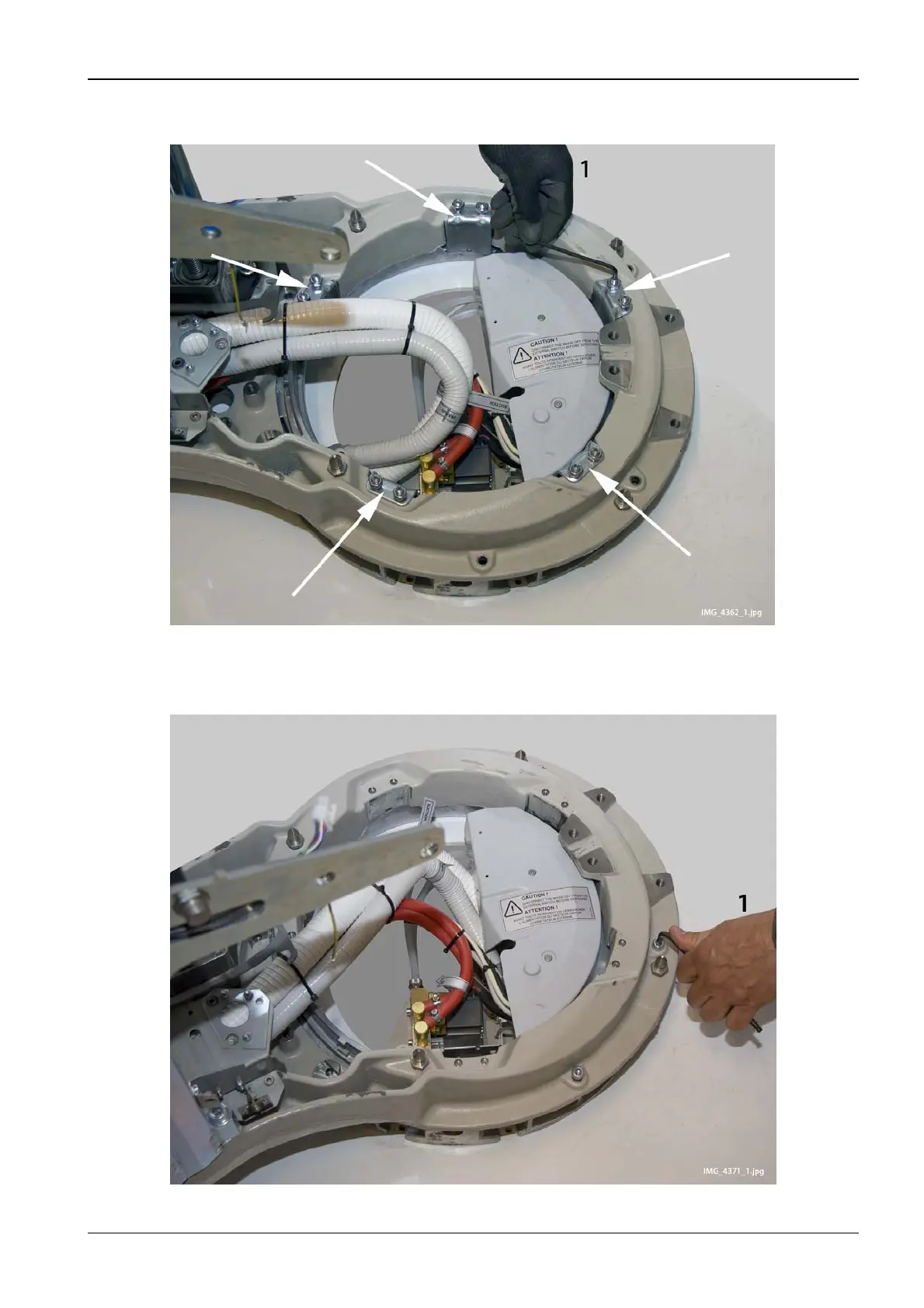

4. In CR2 position attach the cuspidor to the base with metal hooks and attachment screws (1).
5. In position CL1 attach the cuspidor to the base with six attachment screws (four on the frame
and two beside the cuspidor).
Position CL2
Position CL1
