INSTALLING THE PYLON AND ARMS
62 Planmeca Sovereign
Installation manual

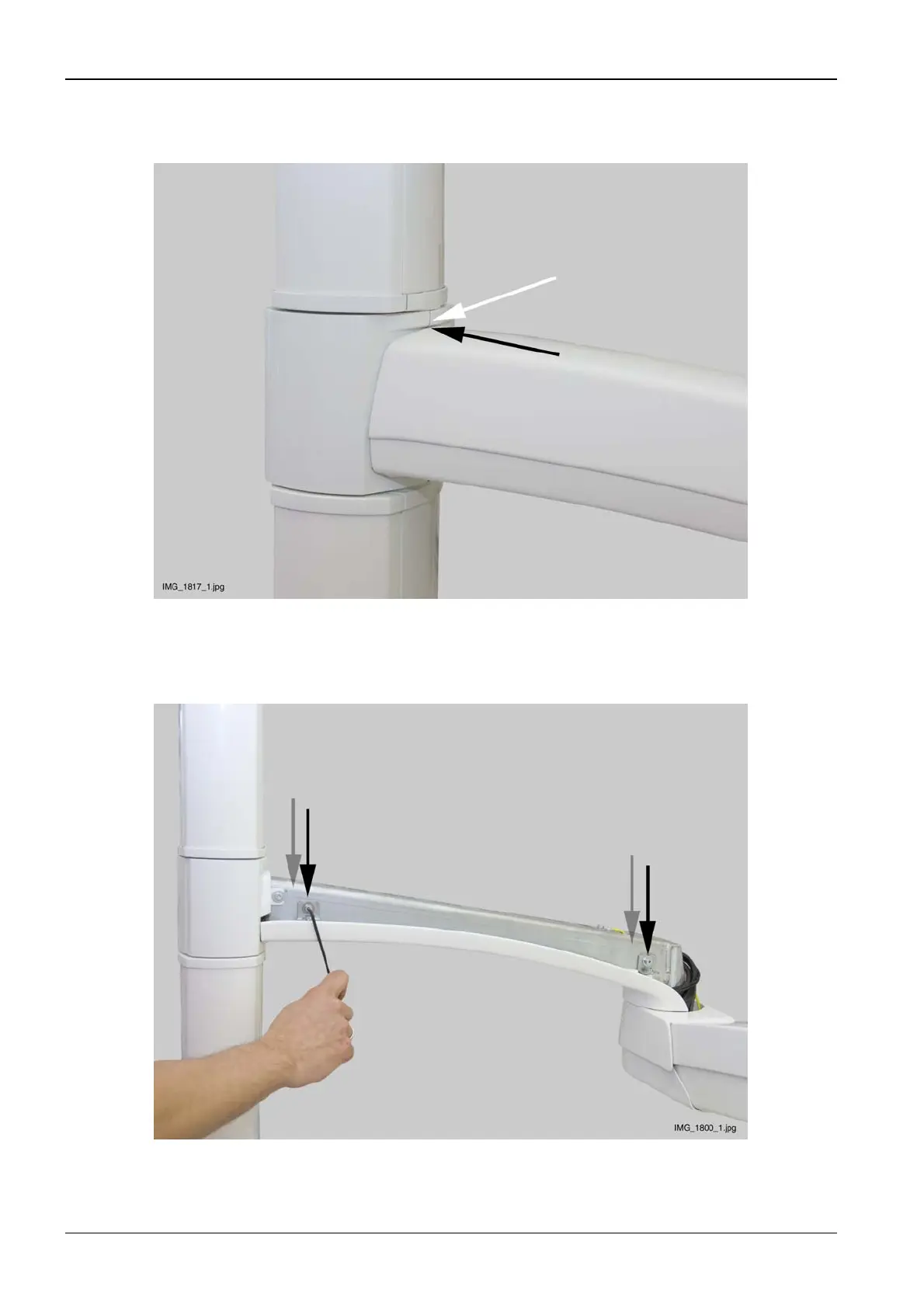

Place the bracket arm upper cover to its position. Check that the cover (black arrow) is below
the joint step (white arrow) and that the covers fit to each other.
If needed, remove the upper cover and adjust the lower cover position so that the cover fit to
each other. Adjust the vertical position as follows. Loosen four screws which attach the angle
plate on the arm side using a 3 mm Allen key and move the cover. Tighten the screws.
