Planmeca Sovereign 63
INSTALLING THE PYLON AND ARMS
Installation manual
Adjust the sideways position as follows. Loosen four cover screws using a 3 mm Allen key
and move the cover. Tighten the screws

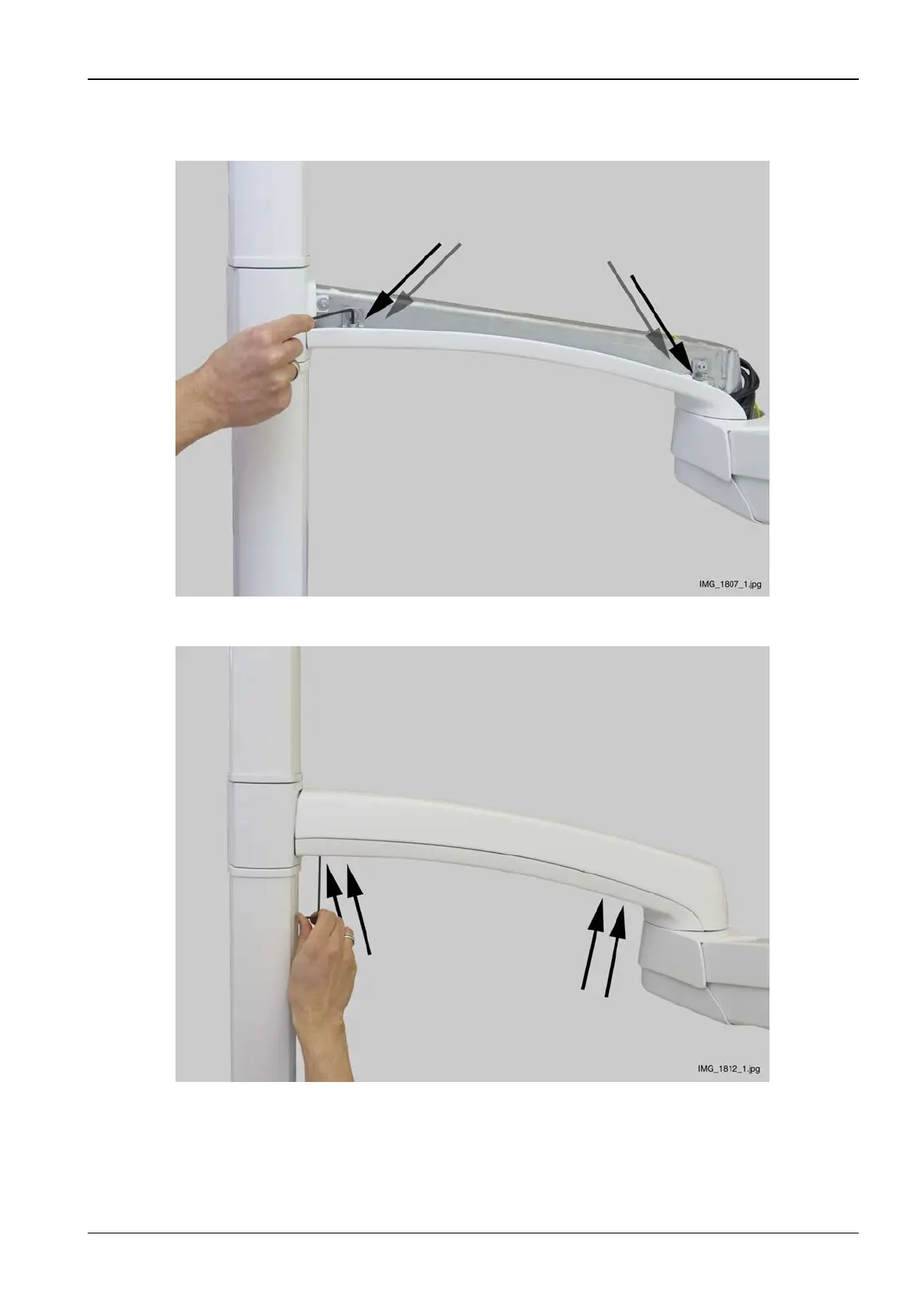

Attach the upper cover to its position with four screws using a 3 mm Allen key.
Check that there is approx. 3 mm gap between the lower cover and middle joint upper cover.
Attach the other OP delivery arm covers according to the instructions given in section 8.6
“Attaching the OP delivery arm covers” on page 81.
