INSTALLING THE PYLON AND ARMS
66 Planmeca Sovereign
Installation manual

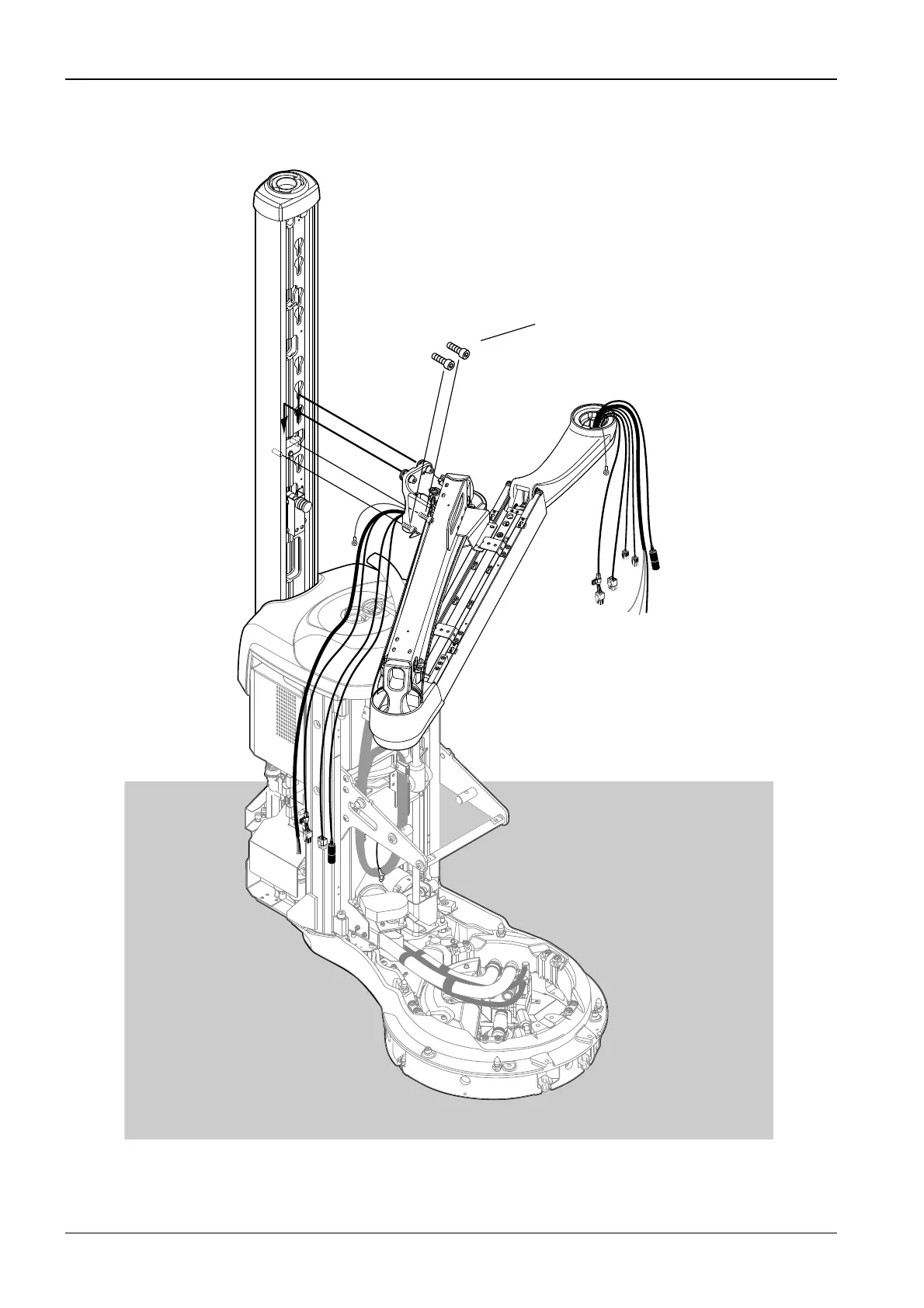

Lift the OP delivery arm to its position. The arm attachment screws must go into the openings
on the pylon as shown on the figure below. Make sure that the attachment screws are
loosened so that the they go into the openings on the pylon.
S11_2_mod.eps
Lower attachment screws
