INSTALLING THE PYLON AND ARMS
Installation manual

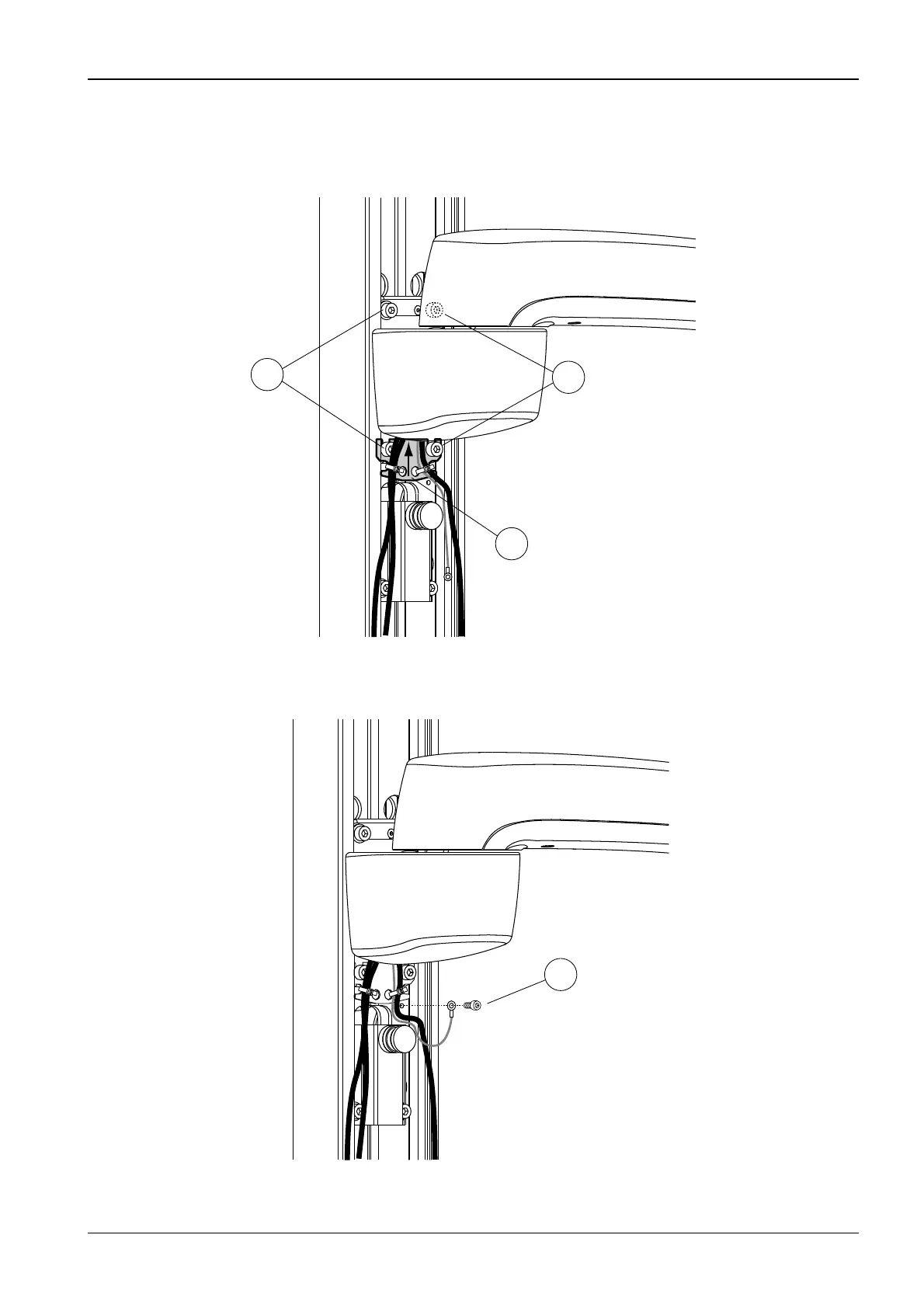

Attach the OP delivery arm to its position. First attach the lower attachment screws and slide
the cable support plate under the screws (1). Tighten the attachment screws using a 6 mm
Allen key (2). Make sure that the arm cables are secured with cable ties.
Attach the OP delivery arm grounding cable to the pylon using a 3 mm Allen key (1).
S14.eps
1
2
2
S15.eps
1
