INSTALLING THE PYLON AND ARMS
68 Planmeca Sovereign
Installation manual

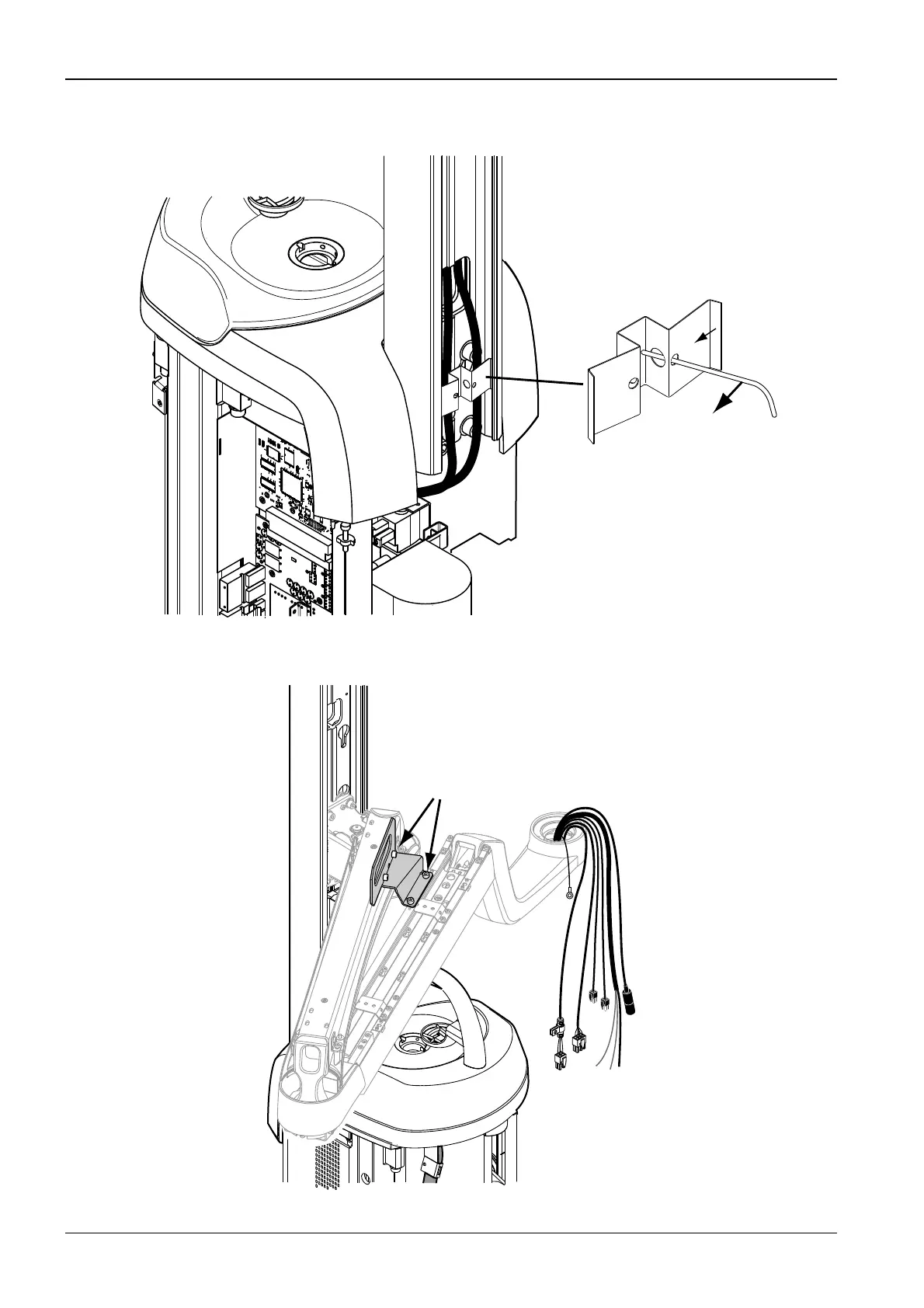

Route the arm cables into the cuspidor. Secure the cables with a cable support as follows.
Bend the support lugs inside with e.g. Allen key and press the support to its position.
Unscrew the OP delivery arm transport plate attachment screws (first the lower two, then the
upper two) and remove the transport plate.
S18_1.eps
S133_1.eps
