Planmeca Sovereign 91
INSTALLING THE PYLON AND ARM ACCESSORIES
Installation manual

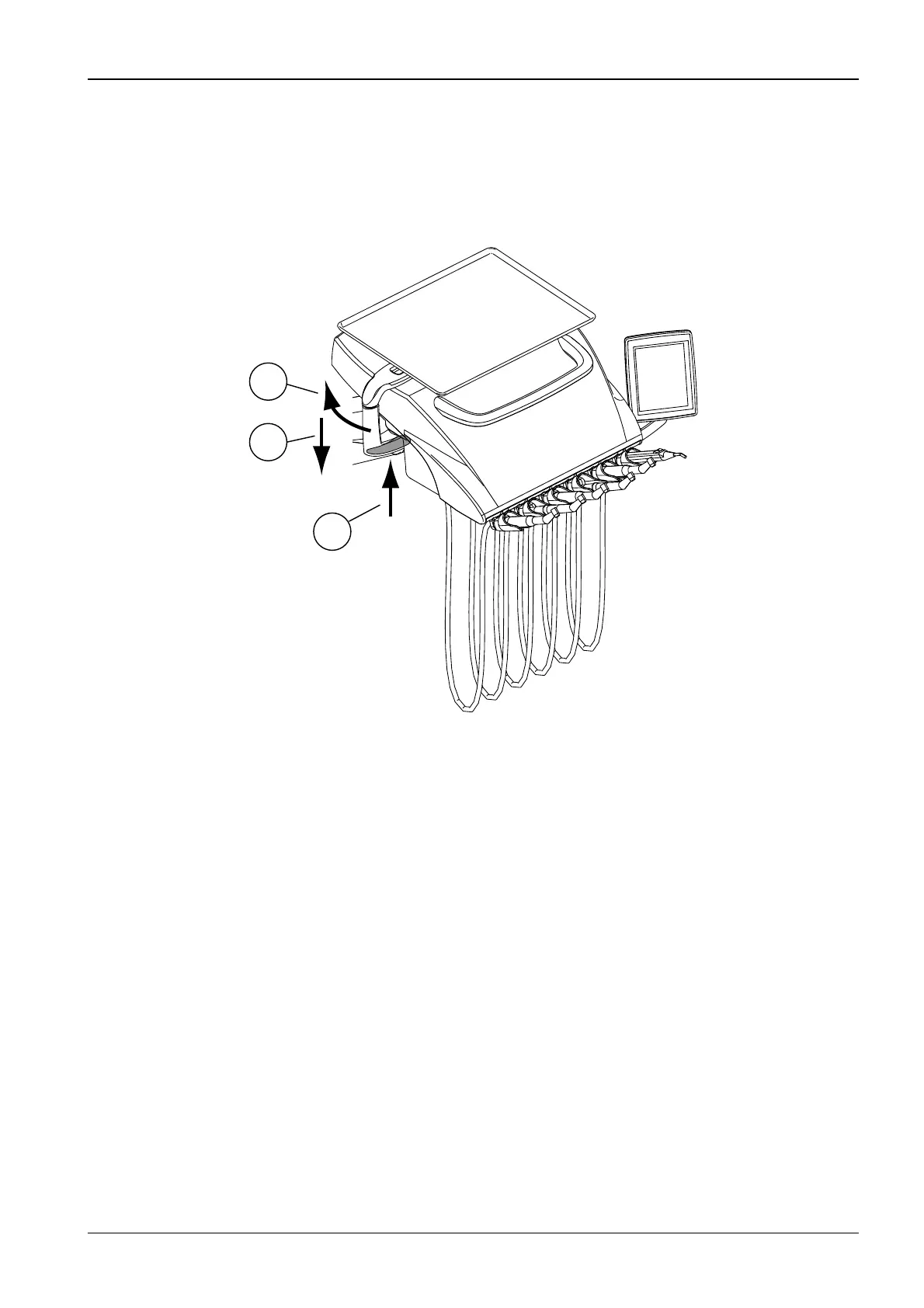

To detach the tray table, press the locking button located underneath the tray mounting arm
(1) and turn the tray mounting arm approximately 30° clockwise (2) (when the tray table is
placed on the left side of the console) or counterclockwise (when the tray table is placed on
the right side of the console).
Detach the tray by pulling the arm out from the instrument console (3).
S203.eps
1
3
2
