INSTALLING THE PYLON AND ARM ACCESSORIES
92 Planmeca Sovereign
Installation manual

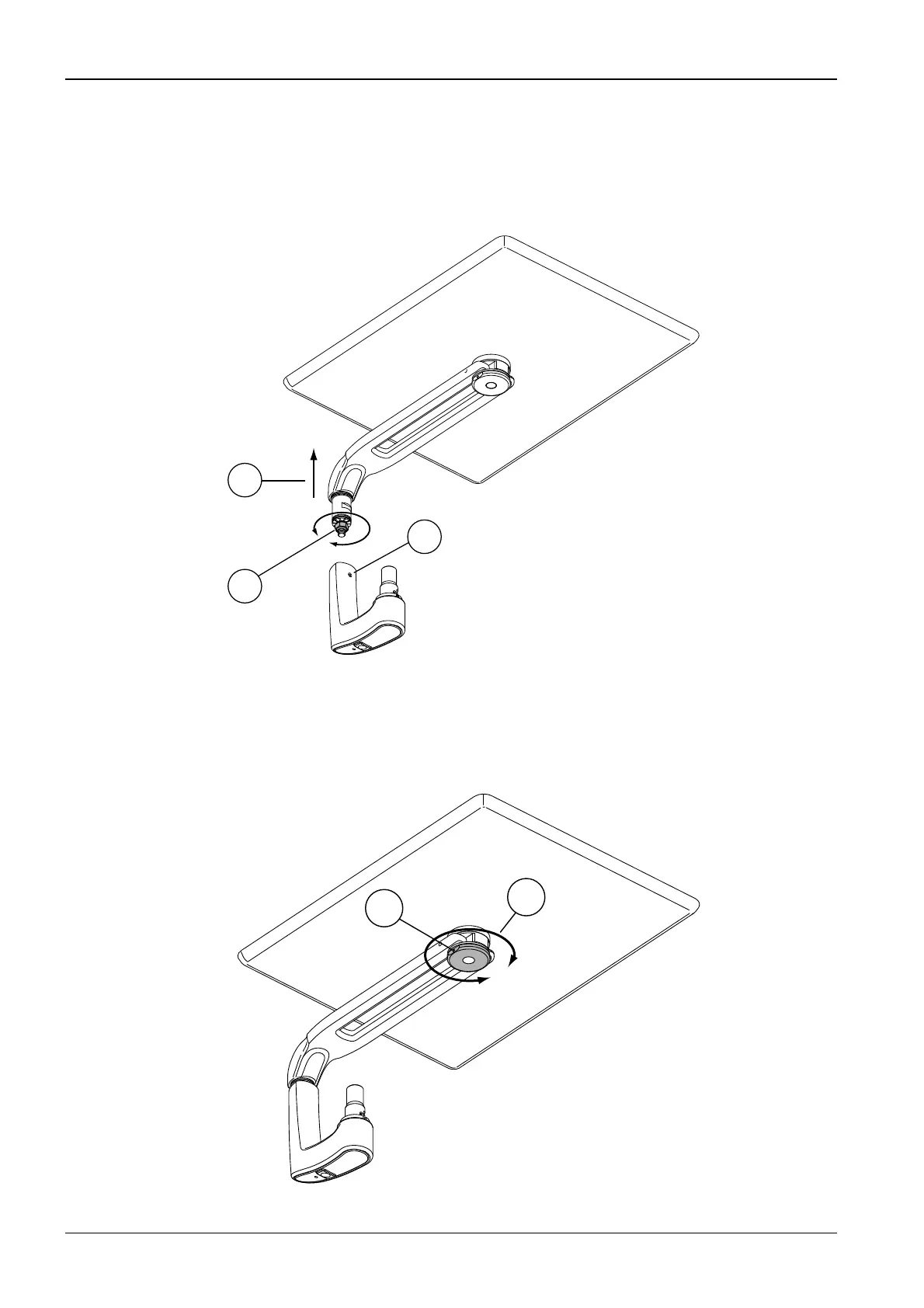

Adjusting rotational friction of the tray arm
Loosen the tray handle locking screw using a 3 mm Allen key (1). Detach the tray assembly from the
handle by lifting it up (2). Adjust the rotational friction of tray arm by tightening/loosening the adjust-
ment nut with a 13 mm fork spanner (3). Tightening the nut increases the friction. Attach the handle
and tighten the locking screw.
Rotational friction of the tray table
Loosen the tray joint locking screw using a 1.5 mm Allen key (1). Adjust the rotational friction of tray
table by turning the attachment plate with pliers (2). Turning the plate clockwise increases the fric-
tion. Tighten the locking screw.
1
2
3
S200.eps
1
2
S201.eps
