INSTALLING THE PYLON AND ARM ACCESSORIES
94 Planmeca Sovereign
Installation manual

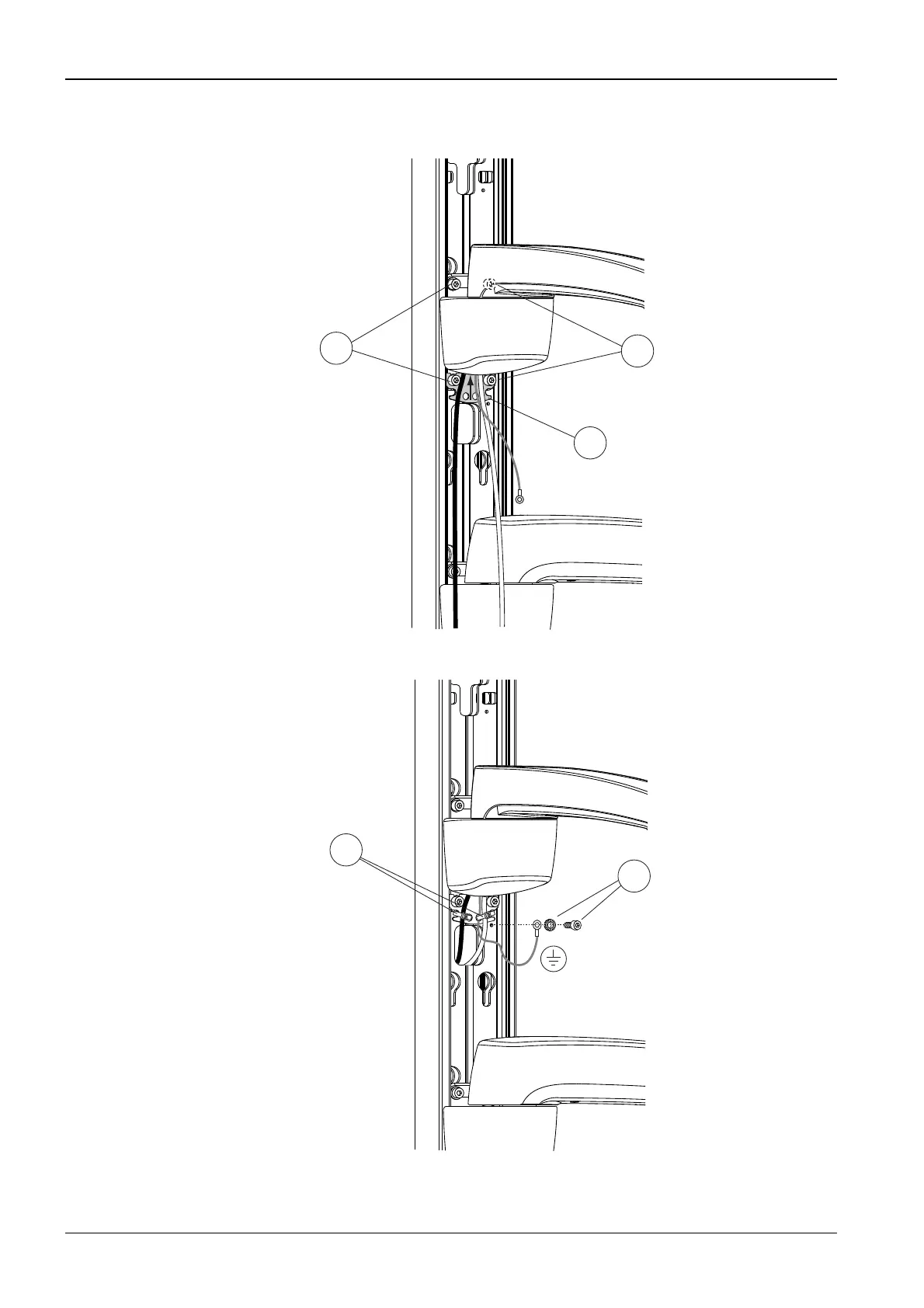

Attach the monitor arm to its position. First slide the cable support plate under the lower
attachment screws (1). Tighten the attachment screws (2).
Secure the cables with cable ties (1). Attach the grounding cable to the pylon (2).
The monitor cables are attached to the monitor arm at the factory with a cable tie. Cut the
cable tie.
2
2
1
S30_1.eps
S31_1.eps
2
1
