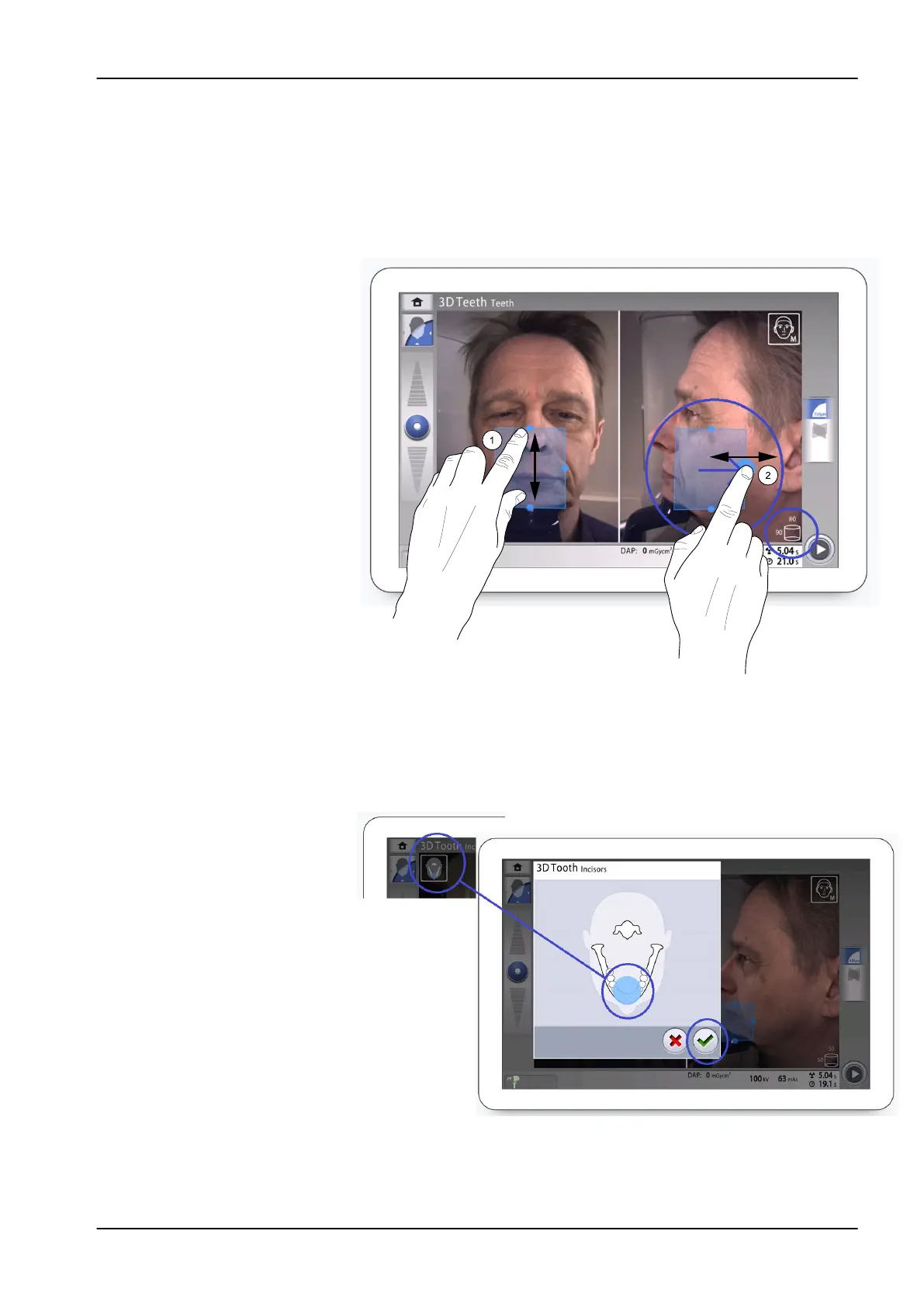

finger (touch screen) on one of the small blue balls and moving the ball
to enlarge or reduce the volume size (2).
The ball turns red when you reach the limit value, i.e. when the volume
diameter or height cannot be further adjusted in that direction.
The selected volume size (diameter and height) is shown in the bottom
right corner of the screen.
NOTE
With Tooth program you can alternatively use the button shown below
when you select the image volume position. Select the position from the
pop-up window that appears and confirm by selecting the green check
mark button.
11 3D exposure
User's manual Planmeca Viso 59
