6.4
CLUTCH SYSTEM

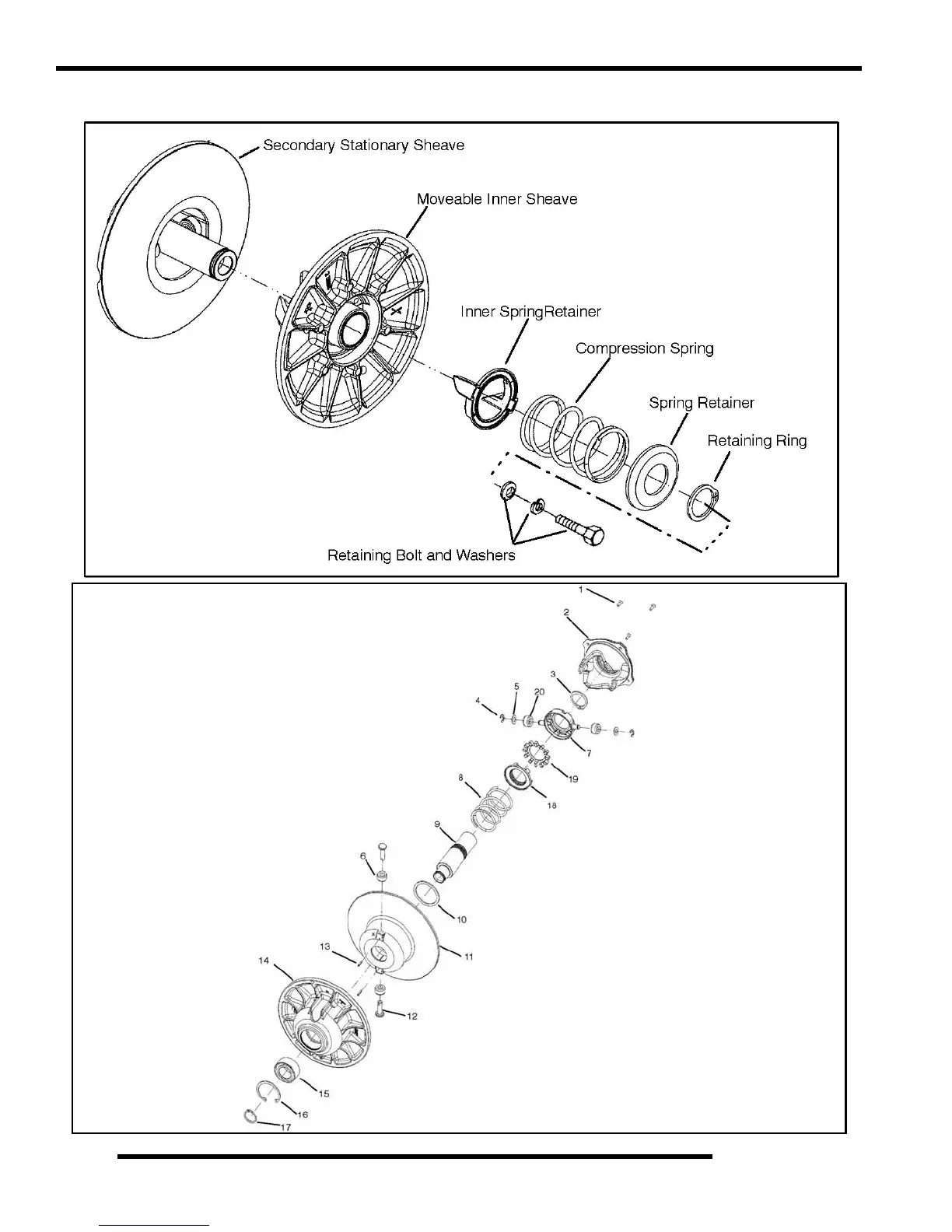

Driven Clutch Exploded Views (Standard and Deluxe)
STANDARD - NON EBS
1. Torx Screw
2. Cam Assembly
3. Retaining Ring
4. E-clip
5. Washer
6. Roller
7. Outer Spider
8. Spring
9. Shaft
10. Thrust Washer
11. Moveable Sheave
12. Roller Pin
13. Spring Pin
14. Stationary Sheave
15. Bearing
16. Retaining Ring
17. Retaining Ring
18. Inner Spider Plate
19. Spider Dampener
20. Clutch Roller
DELUXE - EBS
