CLUTCH SYSTEM
6

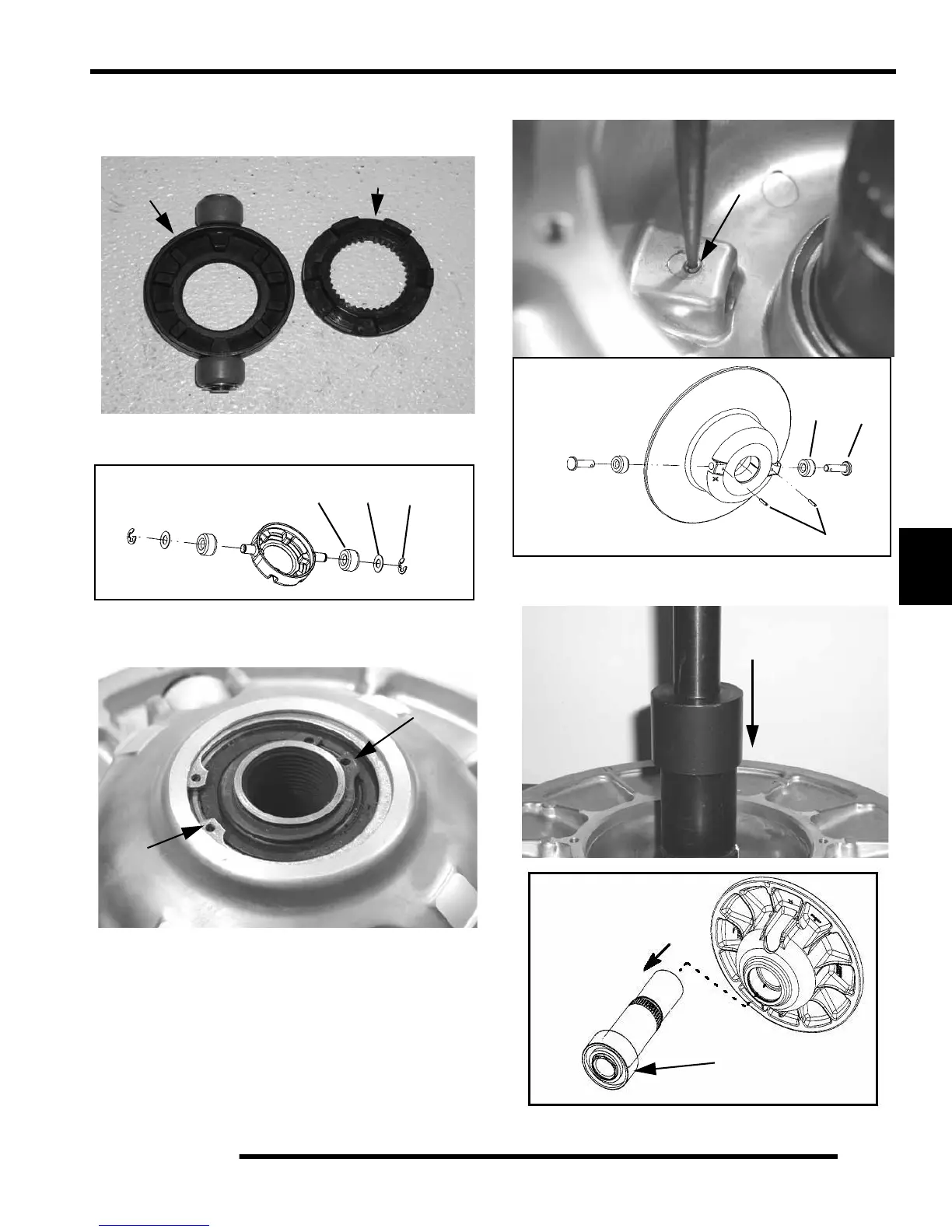

6. Remove the inside spider plate (D) and spider dampener
(E). Inspect the spider dampener (E) for wear and replaced
if needed.
7. Remove the E-clip (F), washer (G), and the clutch rollers
(H). Inspect the rollers for wear replace if worn.
8. Remove the clutch assembly from the holding tool.
Remove the large outer retaining ring (I) and the inner
retaining ring (J).
9. Press out the spring pins (K) in the inner sheave.
10. Pull out the clutch roller pins (L) and rollers (M).
11. Press the shaft and bearing out of the outer sheave using a
press.
E
D
H
G
F
I
J
K
K
M
L
Press Shaft & Bearing Out
Inspect Bearing
