6.26
CLUTCH SYSTEM

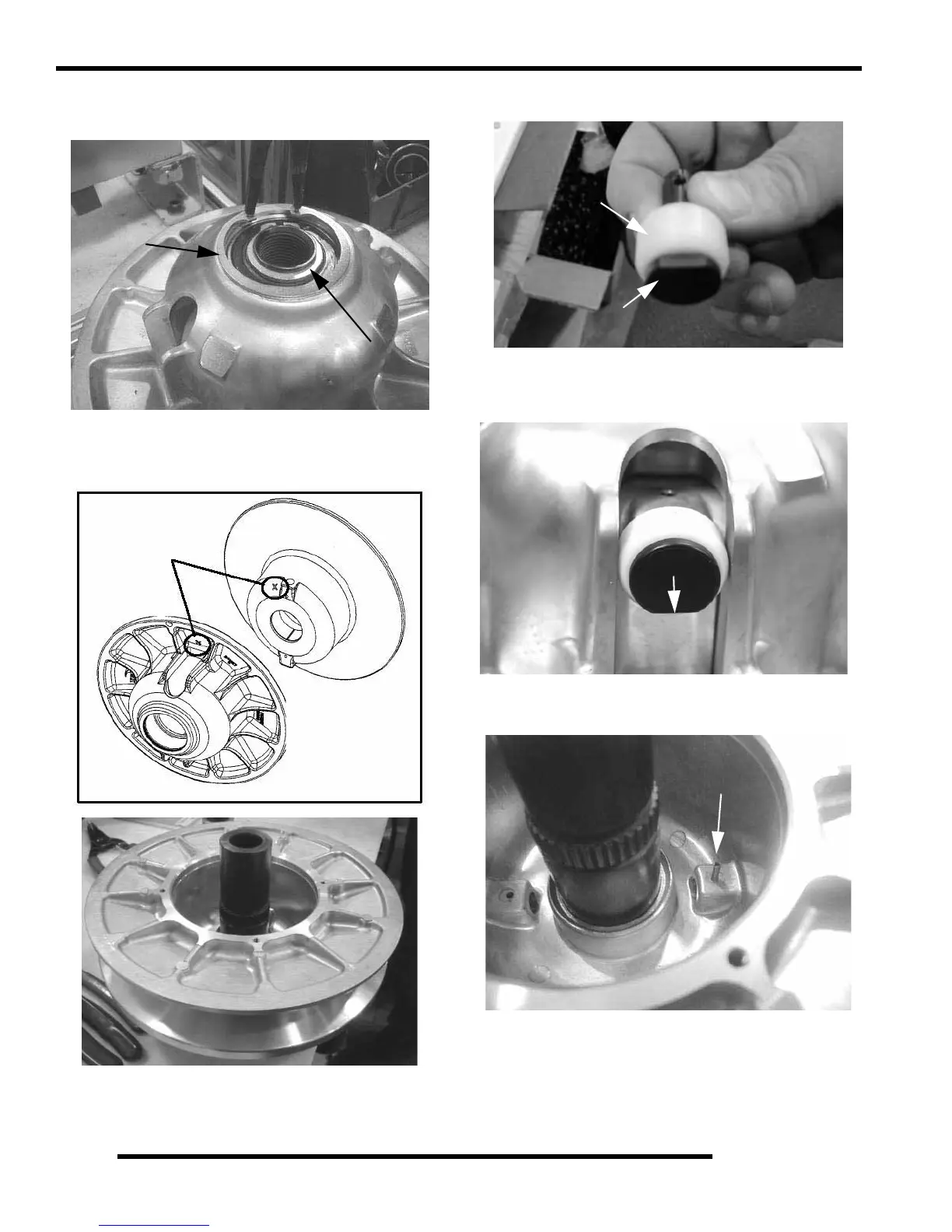

3. Install the small and large retaining rings into the outer
sheave above the bearing.
4. Line up the “X” on the moveable sheave with the “X” on
the stationary sheave or use the marks previously used. Put
the sheaves together.
5. Install the roller (A) onto the roller pin (B). (Both Sides).
6. Install the roller pin into the sheave assembly. (Both sides).
The flat side of the roller pin faces downward when the
shaft side is laying flat on the bench.
7. Install the spring pins (C) to secure the roller pins. Install
until flush with sheave surface.
Align X’s
A
B
Flat Side Down
C
To Next Page
