6.33
CLUTCH SYSTEM
6

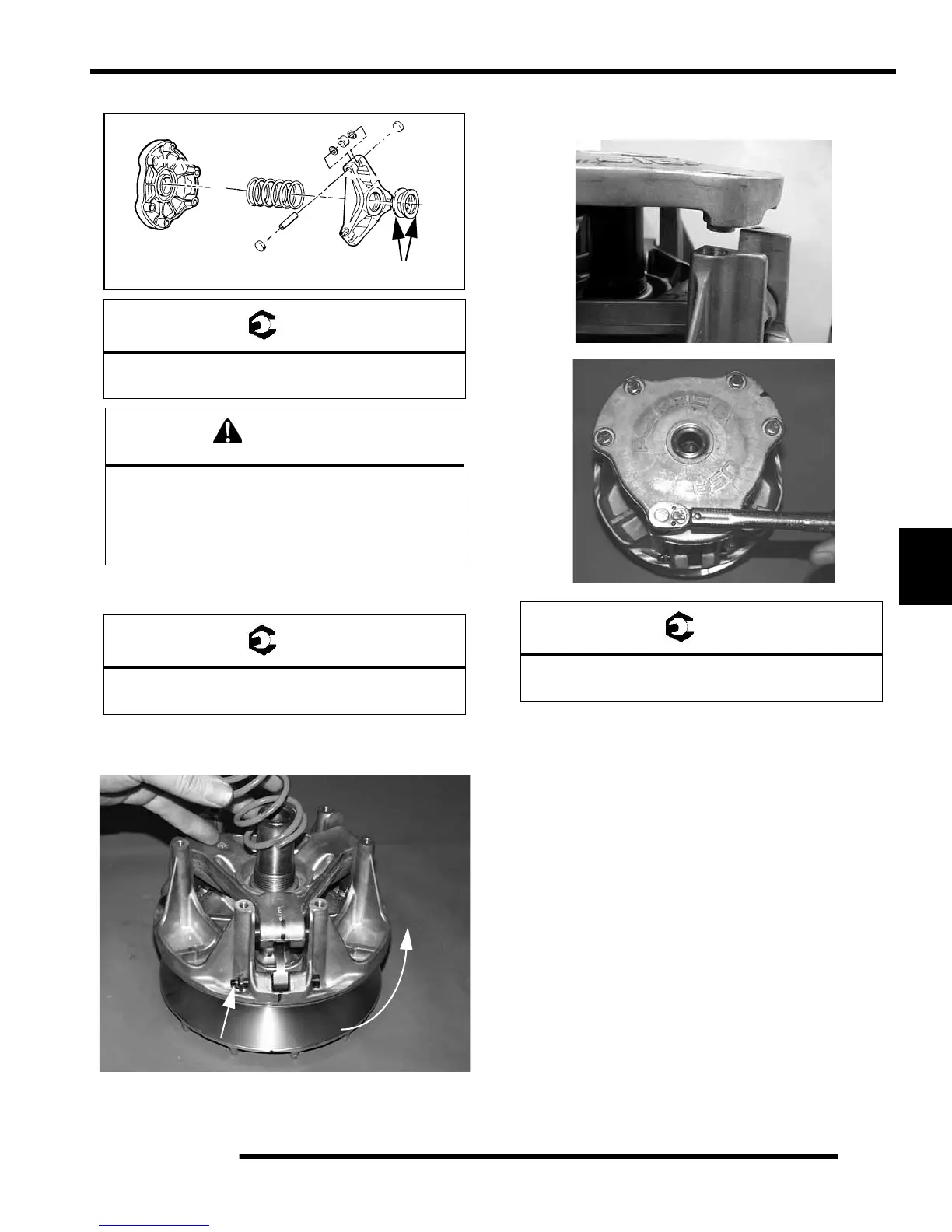

5. Install limiter nut on top of spider using the Clutch Spider
Nut Socket (PN 2870338). Torque to specification.
6. Reinstall shift weights using new lock nuts on the bolts.
7. Reinstall clutch spring.
8. Reinstall cover, aligning bosses on the tower and cover.
Torque cover bolts evenly to specification.
= T
Spider Torque:
200 ft. lbs. (271 Nm)
CAUTION
Verify spider spacer washers are
fully seated in the recessed area of the spider.
Any misalignment will alter clutch balance.
Inverting the clutch while initially tightening the
spider will help position the washers.
= T
Spider Limiter Nut Torque:
15 ft. lbs. (20 Nm)
Spacer Washers
Engine
Rotation
Nut on trailing side
= T
Cover Screw Torque:
90 in. lbs. (10.4 Nm)
To Next Page
