FINAL DRIVE

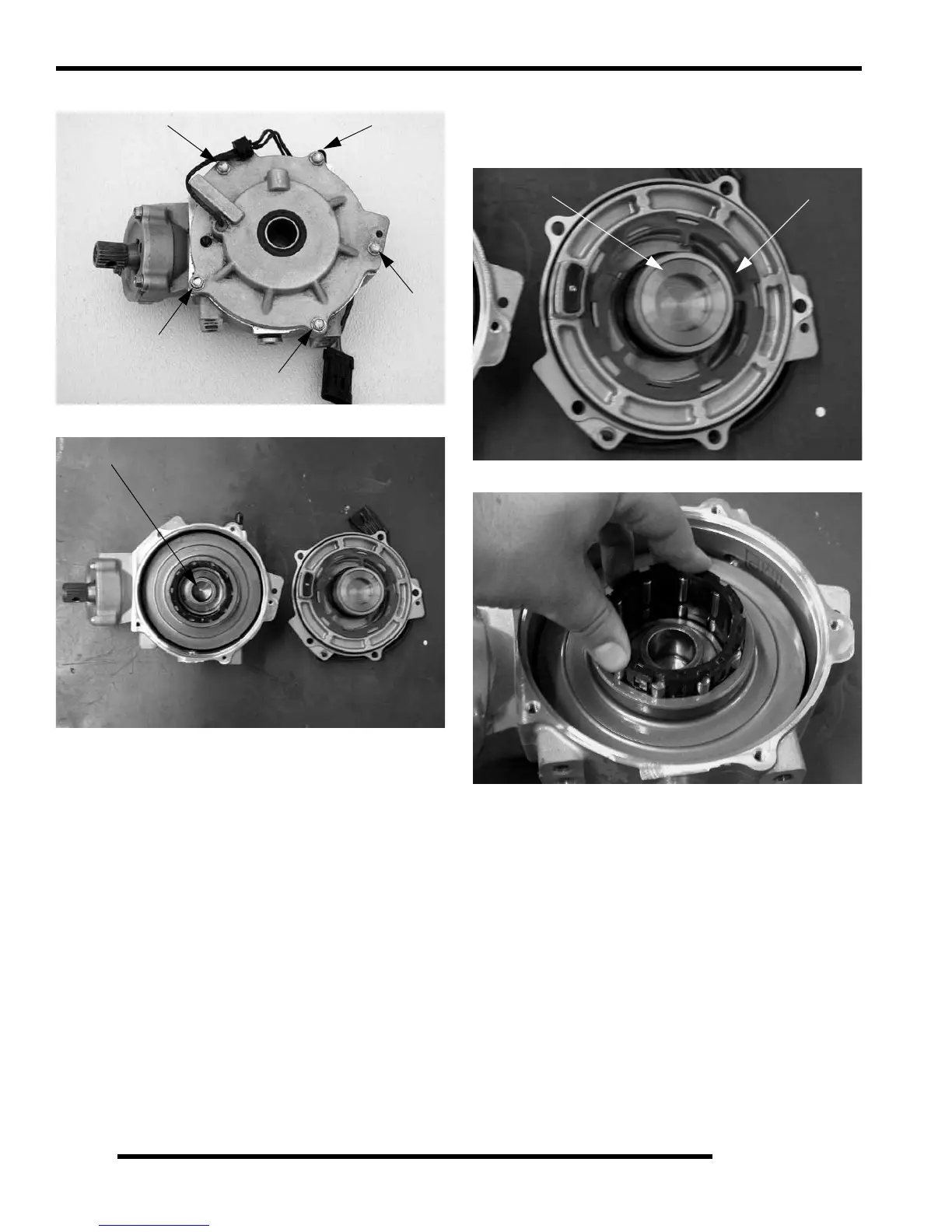

2. Remove bolts retaining the outer cover plate assembly.
3. Remove the outer cover plate assembly.
NOTE: Thrust bearing located between the two
output hubs is pressed into assembly.
4. Remove the armature plate and RH output hub assembly
from the outer cover plate. Inspect the bearing and contact
surfaces of the output hub for signs of wear or damage.
Replace component if found to be worn or damaged
5. Remove the roll cage assembly, rollers, and ring gear.
Thrust Bearing
Armature Plate
Output Hub Assembly
