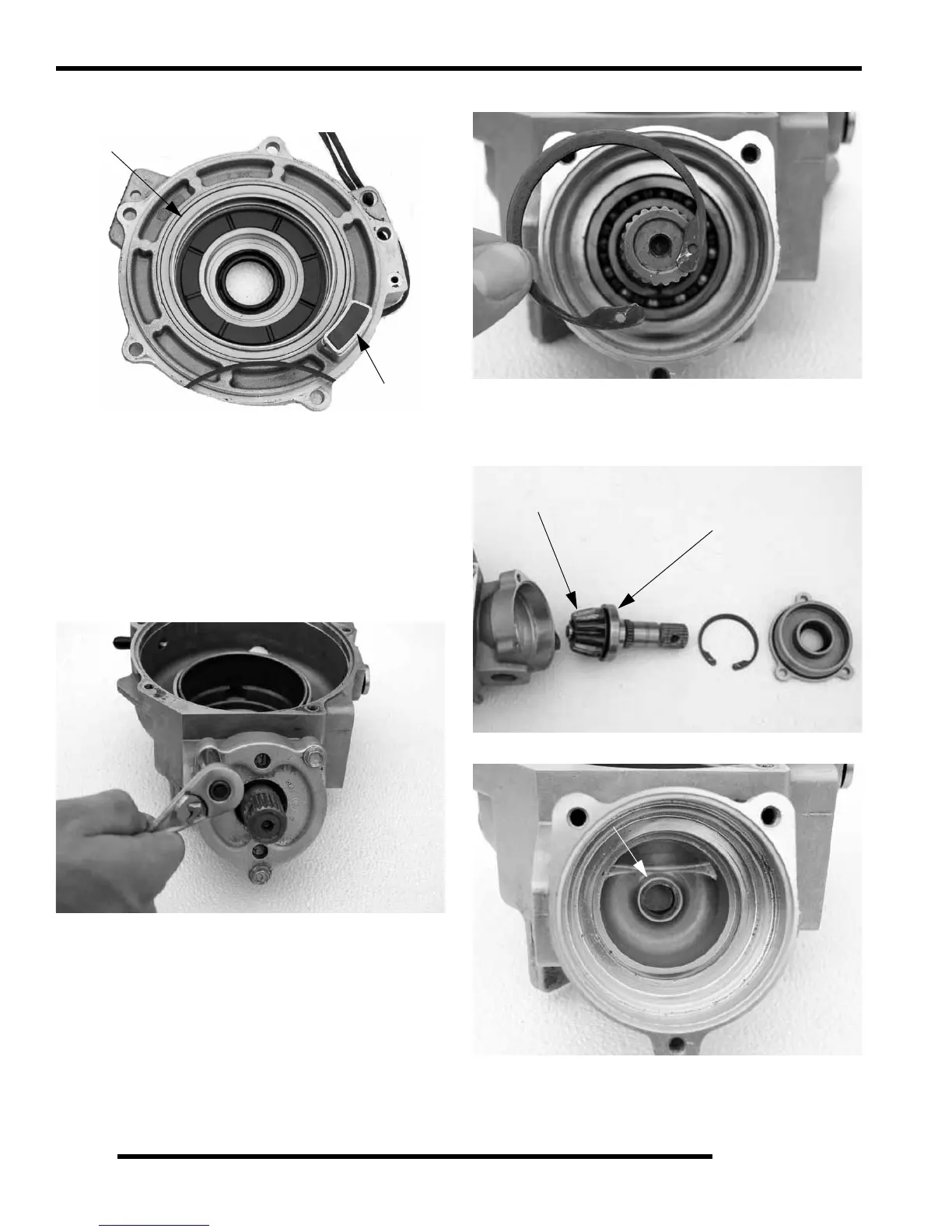

11. Inspect the magnetic coil (A) in the outer cover plate
assembly. Inspect the backlash pad (B) for excessive wear.
NOTE: See “FRONT GEARCASE DIAGNOSIS” later
in this chapter for more details on the coil.
NOTE: The backlash for the centralized hilliard is set
at the factory. No adjustment is required, unless the
front cover needs to be replaced, or the back lash
pad screw is removed. See the “FRONT GEARCASE
ASSEMBLY” procedure later in this chapter for
details on backlash setting.
12. Remove the bolts retaining the input shaft cover and pinion
gear assembly.
13. Remove the snap ring retaining the input shaft assembly.
14. Remove the input shaft assembly. Inspect the pinion gear
(C) for chipped, broken, or missing teeth. Inspect the input
shaft bearing (D) for signs of wear. Replace the input shaft
cover O-ring prior to reassembly.
15. Inspect the input shaft bushing.
16. Thoroughly clean the gearcase components before
beginning reassembly.
