7.31
FINAL DRIVE
7

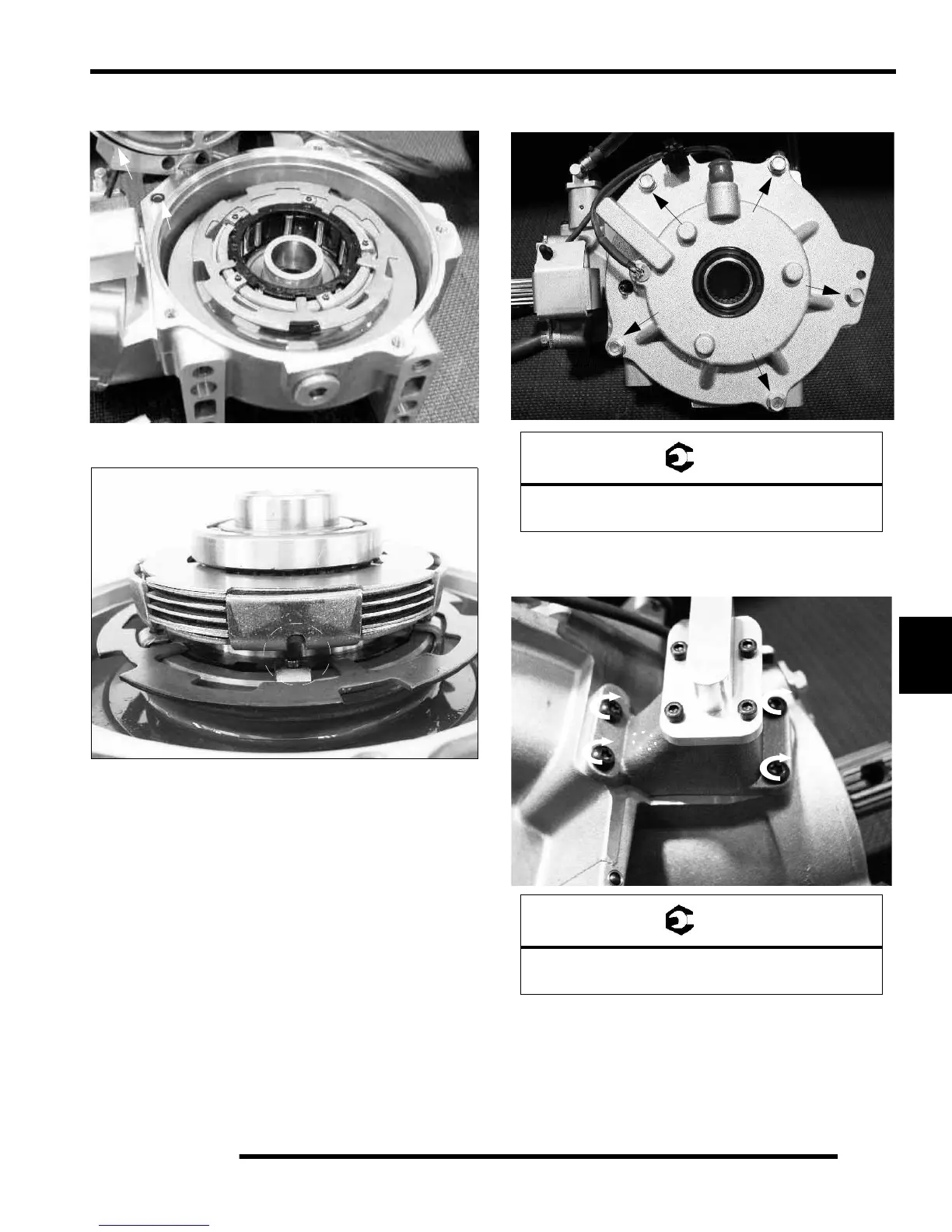

13. Install new cover o-ring (1) on the cover plate assembly
and a new passage o-ring (2) on the gear case.
14. Install the remaining output clutch assembly.
NOTE: Align locating pins / holes for installation.
15. Place cover assembly on Install bolts (arrows) retaining the
outer cover plate assembly and torque to specification.
16. Install a new passage o-ring (dotted circle) on the gearcase
and install the piston pump assembly. Torque the screws to
specification.
NOTE: See “Gearcase Installation” on page 7.20.
1
2
= T
Input Cover Bolt Torque:
7-11 ft. lbs. (9.4-14.9 Nm)
= T
Pump Assembly Screw Torque:
17-23 in. lbs. (1.9-2.5 Nm)
