8.14
SPORTSMAN TRANSMISSION

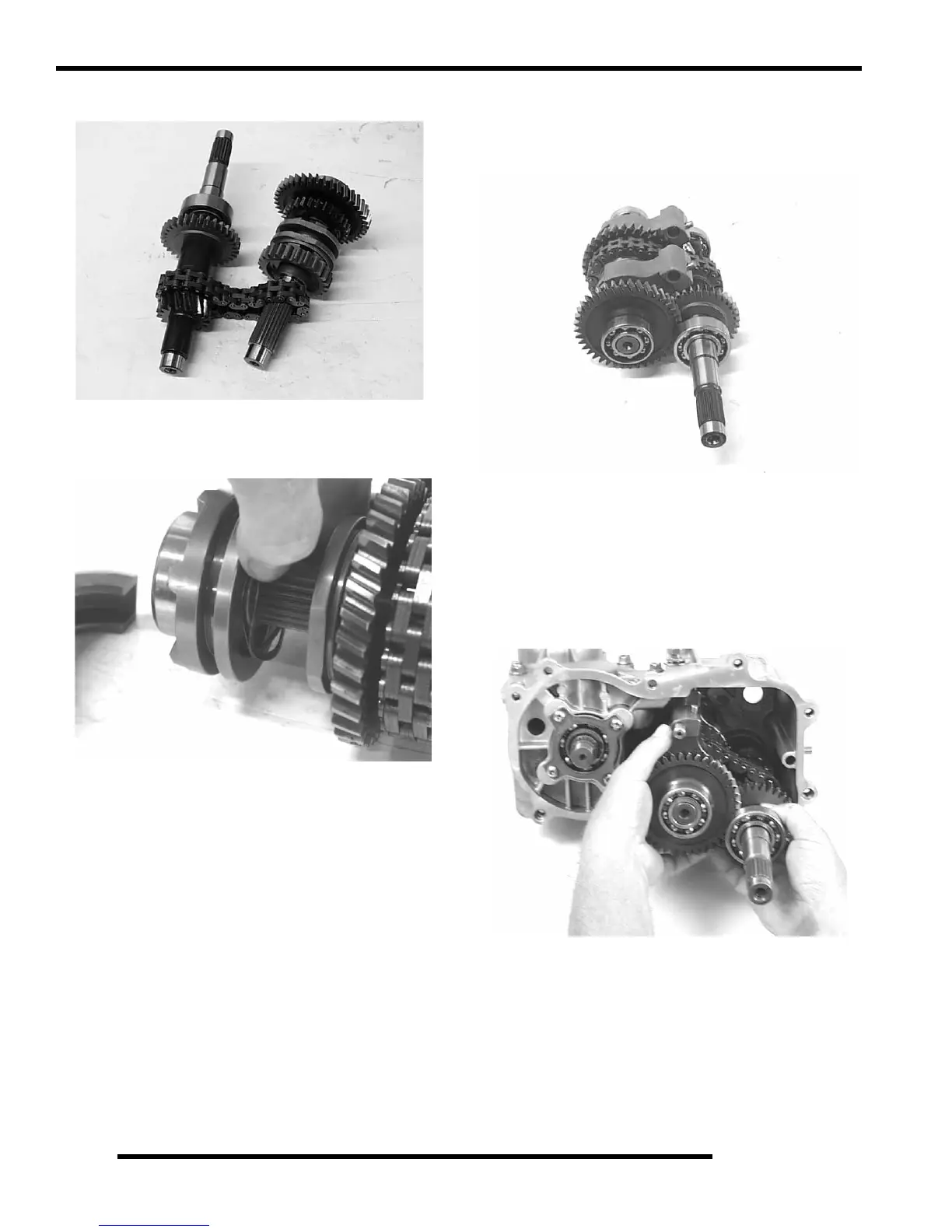

10. Slide the reverse shaft assembly through the silent chain.
11. Install a new needle bearing, the low gear, the thrustwasher
and the snap ring. A new snap ring is recommended.
12. Install the engagement dogs, wave springs, and bearing.
13. Install the ball bearing onto the end of the input shaft.
14. As the engagement dogs are installed onto the shaft, place
the wave springs into the spring groove. Keep the spring
in place while the fork is being installed on the shaft and
while placing the shafts into the case.
NOTE: Use caution when installing the fork, as the
spring can easily fall out.
NOTE: Installing the shift rail will aid in keeping the
shift forks, shift dogs, and the springs in place.
15. Carefully install the shaft assembly and gear cluster as a
unit into their respective bearing case recesses. Tap with a
soft face hammer to seat shaft assemblies.
