8.24
Sportsman X2 Transmission
8. Remove both rear drive shafts. Brake caliper removal is
required. Do not let calipers hang by the brake line. (See
Chapters 7 and 9)
9. Remove both upper shock absorber mounting bolts and
swing shocks away from the transmission.
10. Remove the torsion bar mountings from the control arms.

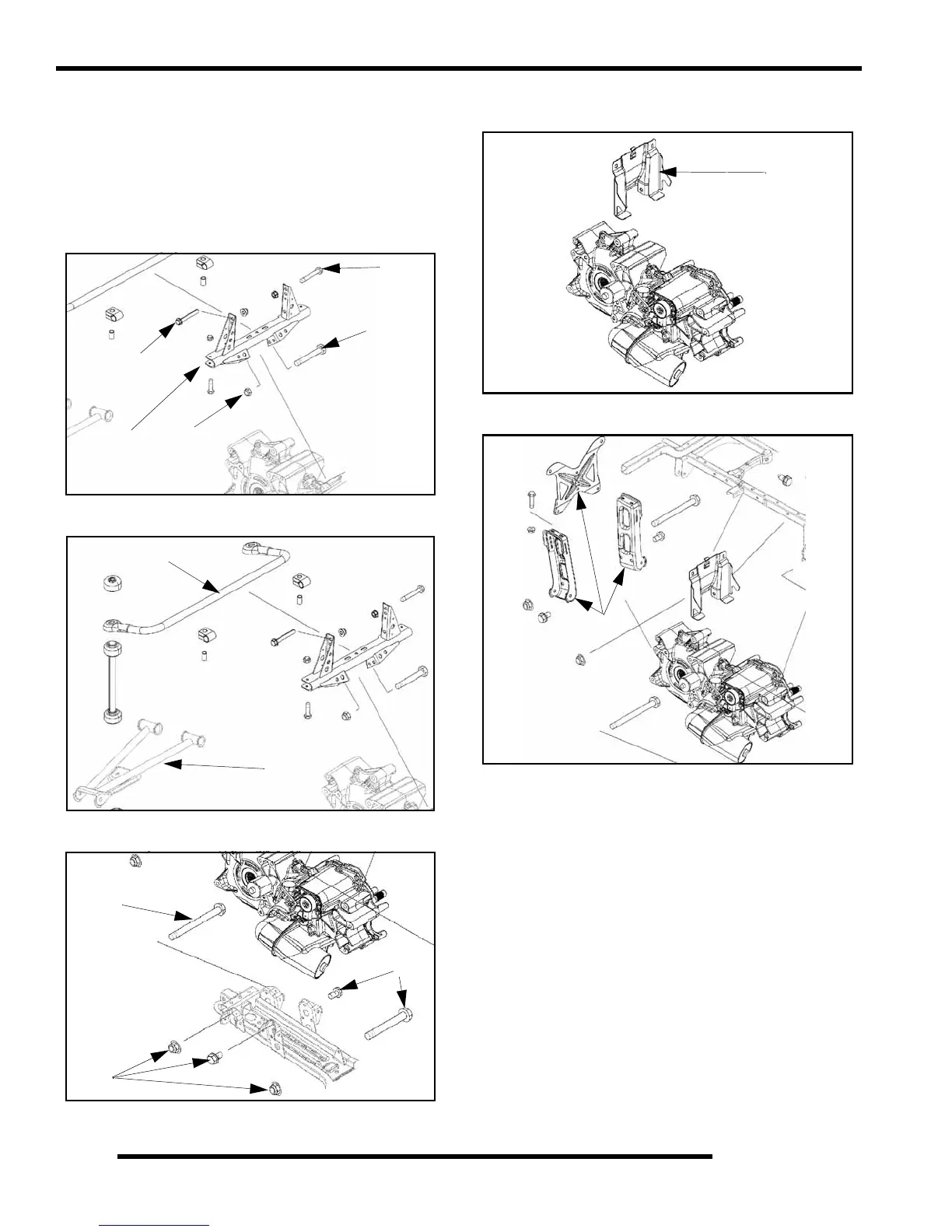

11. Remove all fasteners (X) attaching the torsion mount, and
completely remove the mount (Z) from the ATV.
12. Remove both upper control arms (I). Refer to Chapter 7 for
more details.
13. Remove all lower transmission mounting fasteners (J) from
each side.
14. Remove the middle transmission support bracket (K)
completely from the ATV.
15. Remove the rear transmission support brackets (L)
completely from the ATV.
16. Lift and remove transmission out right side of frame while
pulling the output shaft from the propshaft yoke.
X
X
X
X
Z
H
I
J
J
J
K
L
To Next Page
