3.4
ENGINE

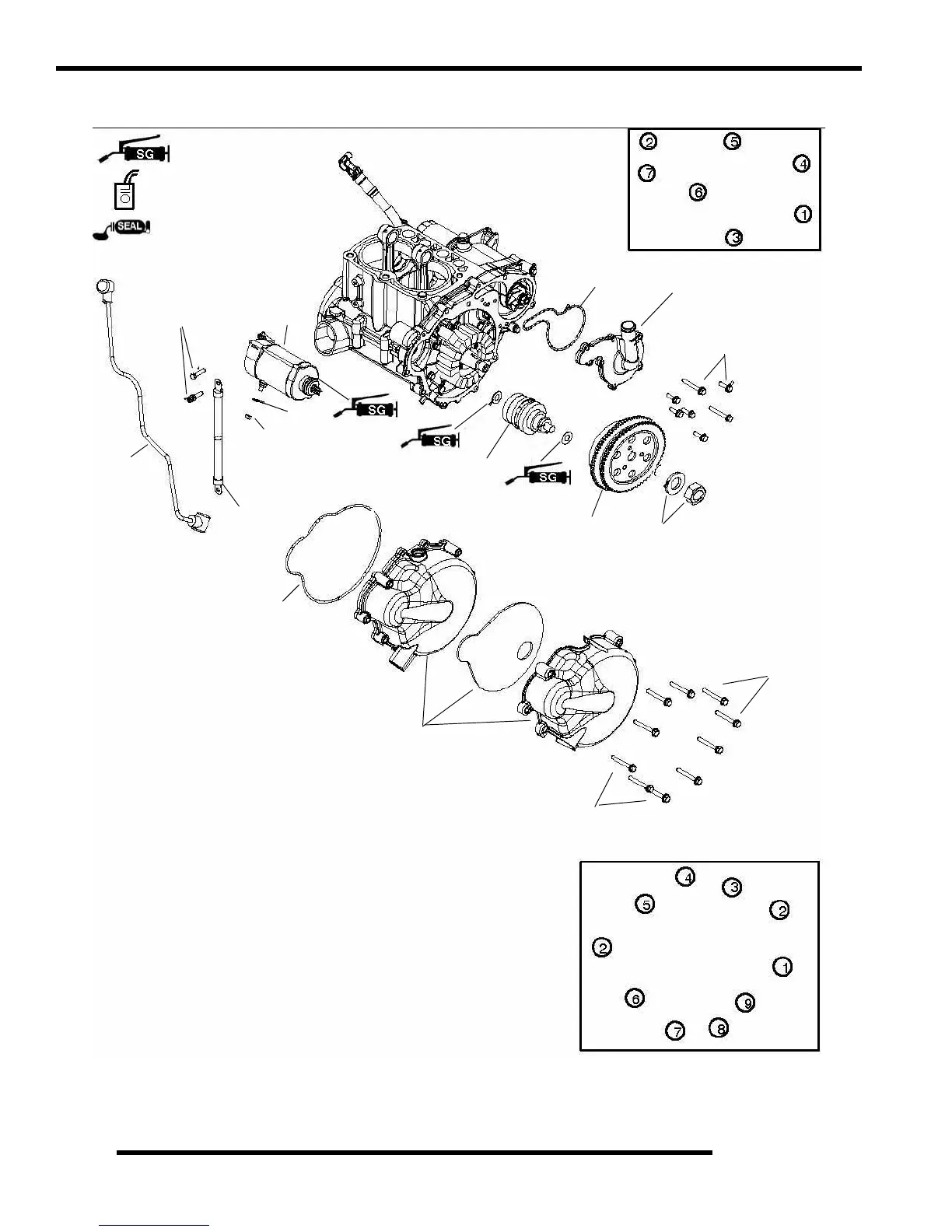

Starter / Flywheel / Water Pump Exploded View
A. Bolts
B. Starter
C. Washer
D. Nut
E. Positive Cable
F. Negative Cable
G. Gasket
H. Clamp
I. Bolts
J. Gasket
K. W at e r P u mp C o ver
L. Bolts
M. Crank Nut/Washer
N. Flywheel
O. Bendix
Apply Polaris
Starter Grease
Apply Polaris 0W-40
oil to seal
Loctite Pipe Sealant
(PN 2871956)
A
1
2
Tighten Top Bolt First
84  8 ft.lbs. (9.5 0.9 Nm)
No Grease or Oil
B
C
D
E
F
G
H
I
J
K
L
M
N
O
108  12 ft.lbs.
(12  1.35 Nm)
96  12 in.lbs.
(10.85 1.35 Nm)
65  7 ft.lbs.
(88  9.5 Nm)
96  12 in.lbs.
(10.85  1.35 Nm)
Water Pump Cover
Bolt Tighten Sequence
Stator Cover Bolt
Tighten Sequence
