BODY / STEERING / SUSPENSION

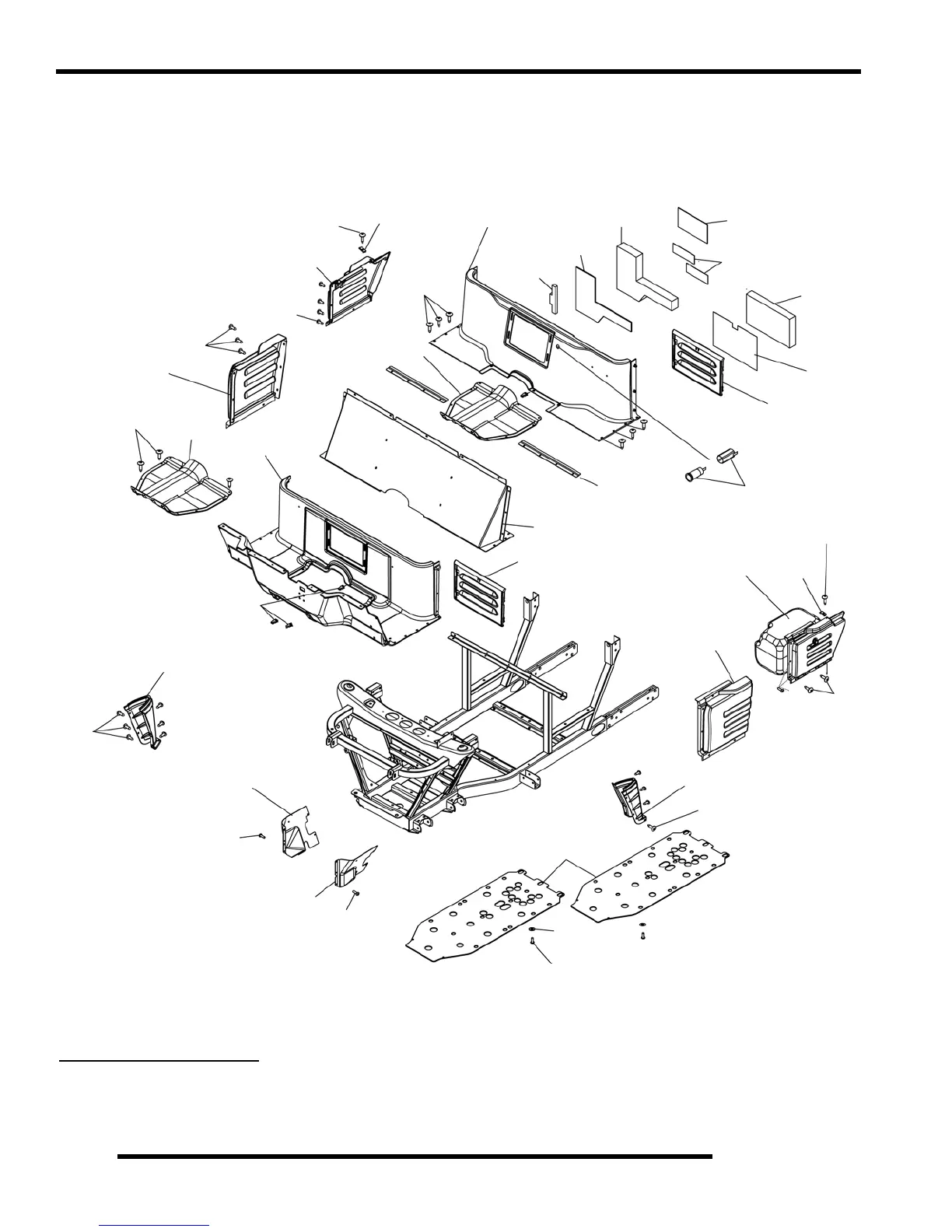

Lower Body, Floor and Fenders (4x4 CREW)
Floor
Main Floor
Foam
Foil
Dog House
Storage
Front Fender
Wheel Well
Skid Plate
Rear Fender
Rear Floor
Rear Floor Ext.
Floor
Mid Fender
12V
T-27
U-Type Nut
Washer
T-25
Speed
Foil
Foil
Cover
Receptacle
Foil
Foam
Foam
Dog House
Cover
Front Fender
Mid Fender
Panel
Wheel Well
Panel
Box
Nut
T-27
Cover
T-27
Bracket
T-27
T-27
T-27
T-25
Self-tapping
Screws
T-27
Speed
Nut
T-27
T-27
TORQUE SPECIFICATIONS
Skid Plate Screws: 6-8 ft. lbs. (8-10 Nm)
T-27 Screws: 4-5 ft. lbs. (5-6 Nm)
T-25 Screws: 20-30 in. lbs. (2-3.5 Nm)
