Polaris 2009 RANGER 700 - Chassis; Main Frame (4 X4 Crew)

5.11
BODY / STEERING / SUSPENSION
5
CHASSIS / MAIN FRAME (4X4 CREW)

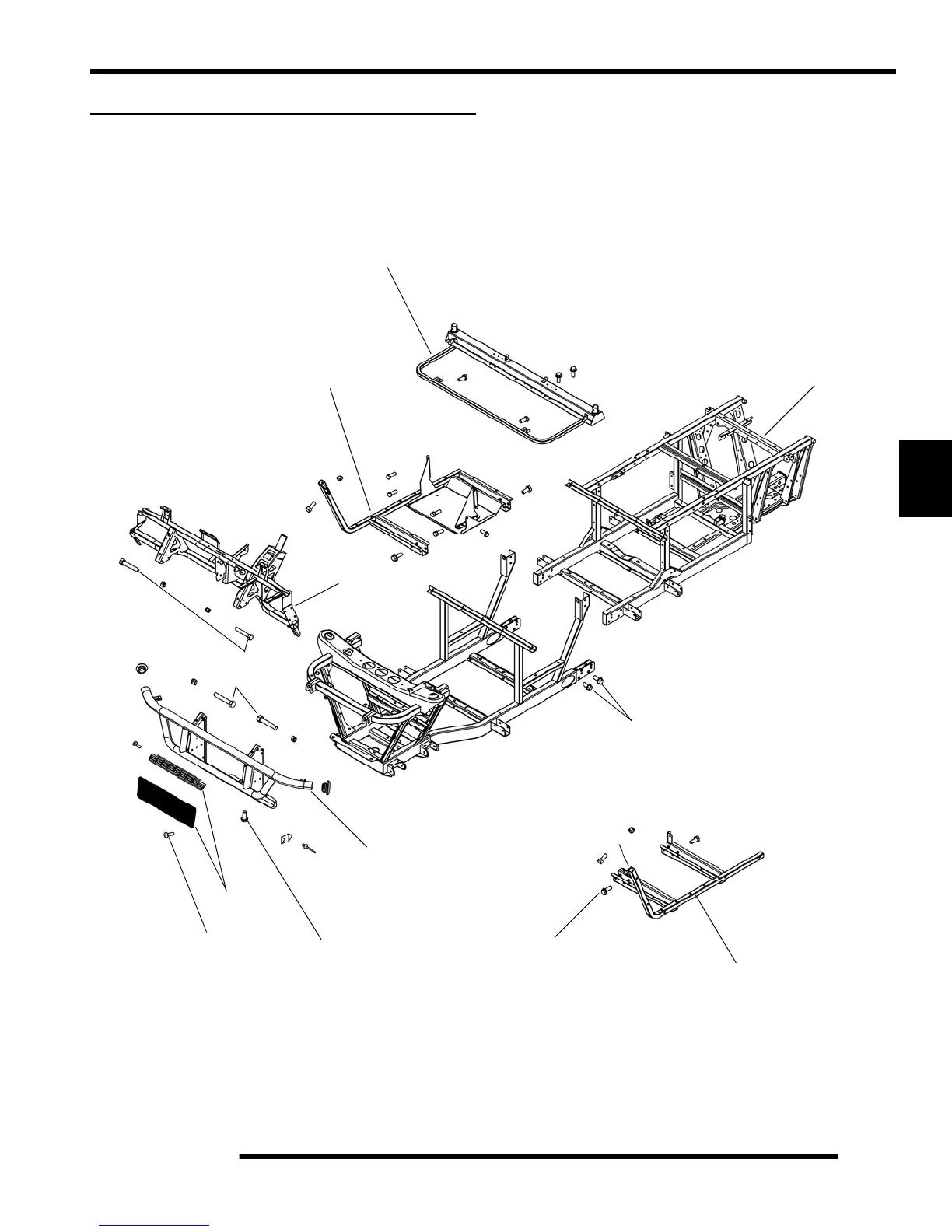

Exploded View
(2) Seat Base
Front Cab Support
Bumper
Grills
(2) LH Floor Support
(2) RH Floor Support
28-32 ft. lbs.
(38-43 Nm)
28-32 ft. lbs.
(38-43 Nm)
13-15 ft. lbs.
(17-20 Nm)
Main Frame
T-27
4-6 ft. lbs.
(6-8 Nm)
35 ft. lbs.
(47 Nm)
