7.26

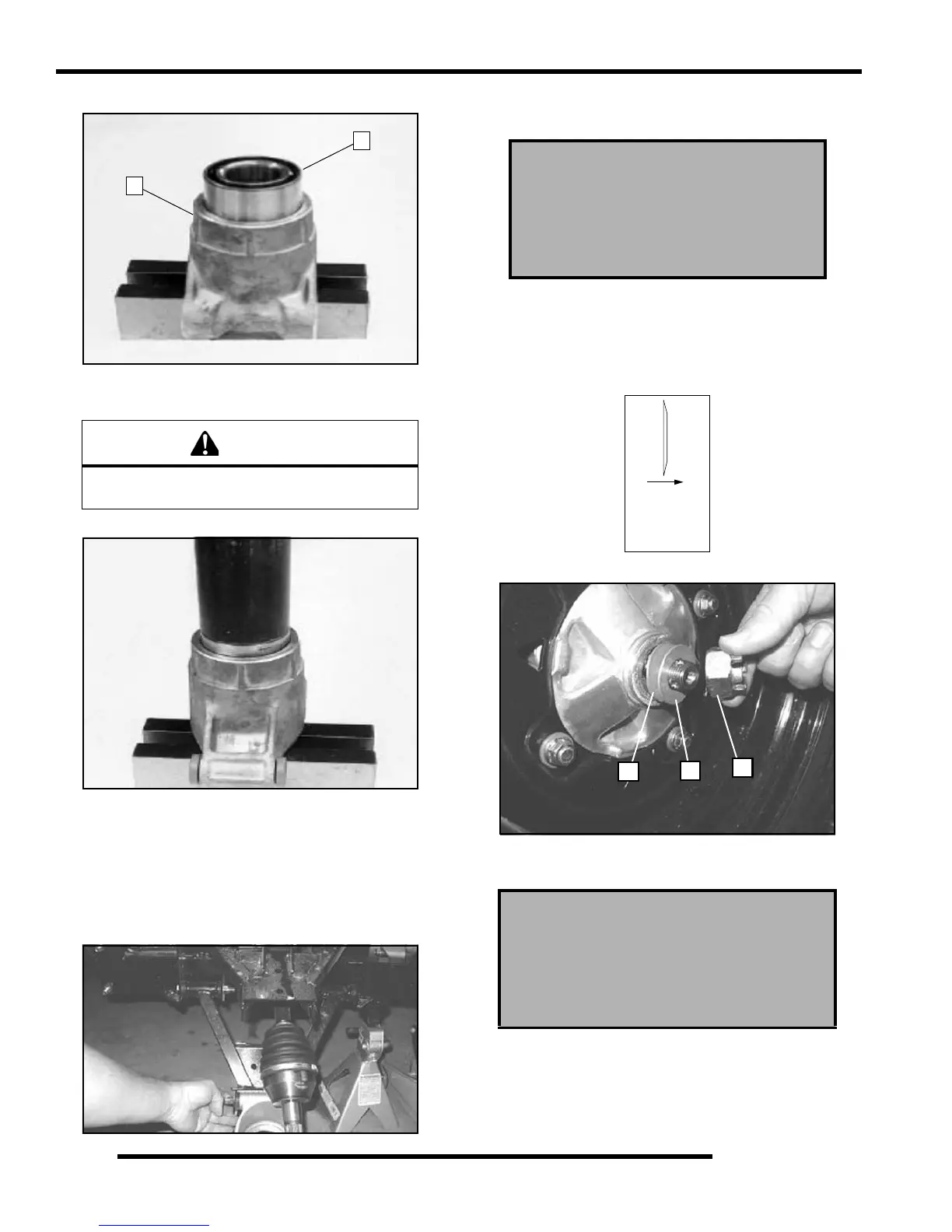

FINAL DRIVE
2. Start bearing (B) in housing (A).
3. Press bearing into place until outer race bottoms on
housing.
4. Install snap ring into groove.
Hub Installation
1. Install hub carrier to lower A-arm. Hand tighten lower A-
arm bolt.
2. Slide mid drive shaft through the hub carrier.
3. Install upper A-arm bolt and torque both upper and lower
bolts.
4. Pull drive shaft outward and install hub onto drive shaft
splines. Apply Anti-Seize compound to the axle splines.
5. Install the flat washer (A) and cone washer (B) with domed
side facing outward. (Refer to next photo)
6. Install the castle nut (C), wheel, and wheel nuts.
7. Remove jackstand and torque mid hub nut to 110 ft. lbs.
(149 Nm) and wheel nuts to 35 ft. lbs. (47 Nm).
8. Install a new cotter pin. Tighten nut slightly to align holes
if required.
9. Install hub cap.
CAUTION
Use an arbor and press only on the outer race,
as bearing damage may occur.
B
A
Lower Control Arm Bolt Torque:
35 ft. lbs. (47 Nm)
Upper Control Arm Bolt Torque:
35 ft. lbs. (47 Nm)
Mid Hub Nut Torque:
110 ft. lbs. (149 Nm)
Mid Wheel Nut Torque
35 ft. lbs. (47 Nm)
Out
Cone
Washer
A
B
C
