BODY / STEERING / SUSPENSION
STEERING AND SUSPENSION

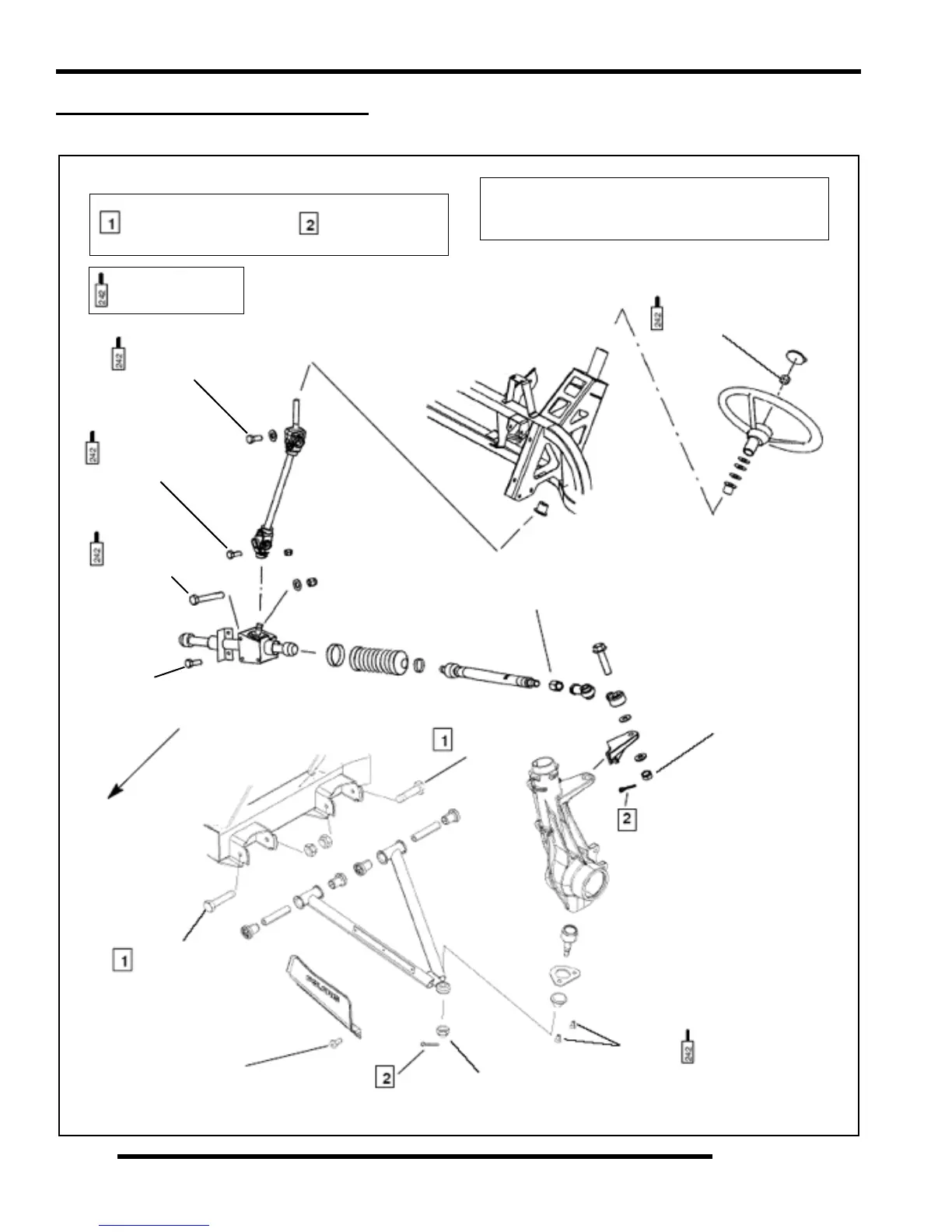

Exploded View
Always use new bolts
upon reassembly
Always use new
cotter pins upon
reassembly.
NOTE: To avoid damage to the tie rod ends and
other steering components, be sure to install tie
rod end bolts in the proper direction.
Apply Loctite
TM
242
17 ft. lbs.
(23 Nm)
30 ft. lbs.
(41 Nm)
Front
12-14 ft. lbs.
(16-19 Nm)
30 ft. lbs.
(41 Nm)
30 ft. lbs.
(41 Nm)
28 ft. lbs.
(38 Nm)
40 ft. lbs.
(54 Nm)
30 ft. lbs.
(41 Nm)
8 ft. lbs.
(11 Nm)
20-30 ft. lbs.
(2-3.5 Nm)
16 ft. lbs.
(22 Nm)
16 ft. lbs.
(22 Nm)
