7.54
FINAL DRIVE

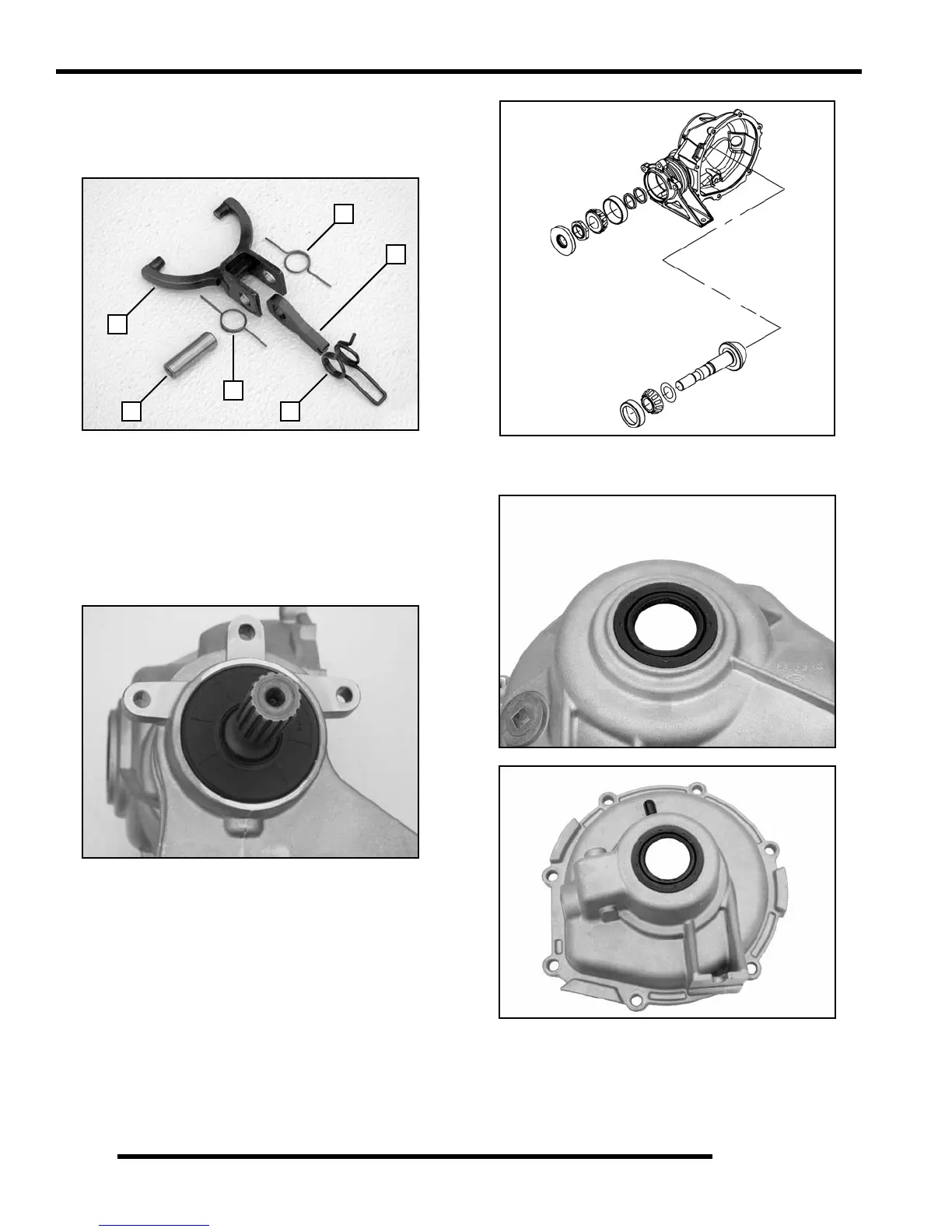

15. Inspect the shift lever (A), shift lever spring (B), shift return
springs (C), shift yoke (D), and lock pin bushing (E).
Inspect the components for excessive wear or damage and
replace as needed.
Rear Gearcase Assembly
NOTE: Grease all seals and O-rings with Polaris All
Season Grease (PN 2871322) upon assembly.
1. Remove the pinion shaft oil seal using a seal puller and
replace with a new seal.
NOTE: The pinion gear assembly is NOT intended to
be disassembled from the case, as it requires
special OEM tooling in order to properly reassemble.
If there is any damage to the pinion gear, bearings or
case, the assembly must be replaced.
2. Replace the drive shaft oil seals located in the main
gearcase and gearcase cover
3. Replace all worn components.
A
B
C
C
D
E
Do Not Disassemble.
Replace as an assembly
if damaged or worn.
