FINAL DRIVE
When the clutch gear is unlocked the rear drive shafts are
dependent on the differential allowing tighter turns. When it’s
locked it becomes a solid rear axle increasing traction.

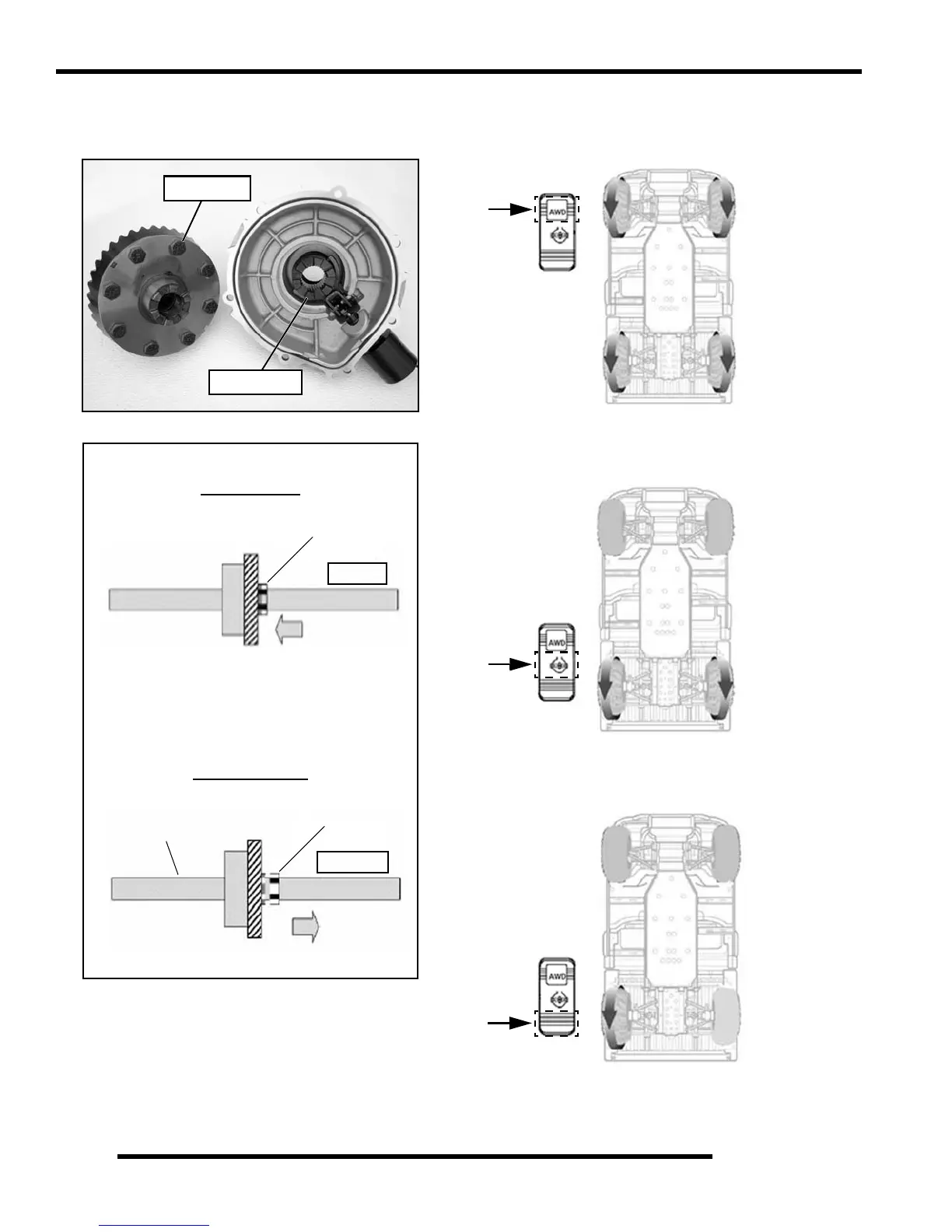

Operation Modes
Clutch Gear
Differential
IRS Axle
Clutch Gear
Unlocked
Locked Mode
Unlocked Mode
Axle Shaft
Clutch Gear
Locked
Axle Shaft
Axle Shaft
Axle Shaft
Differential Locked
Differential Unlocked
AWD Mode
Both rear wheels rotate at same speed.
Rear wheels can rotate at different speeds.
(Allows for sharper turning)
Rear Wheels rotate at same speed.
Front Wheels rotate at same speed when AWD activated.
