7.15
FINAL DRIVE
7
FRONT GEARCASE / CENTRALIZED HILLIARD

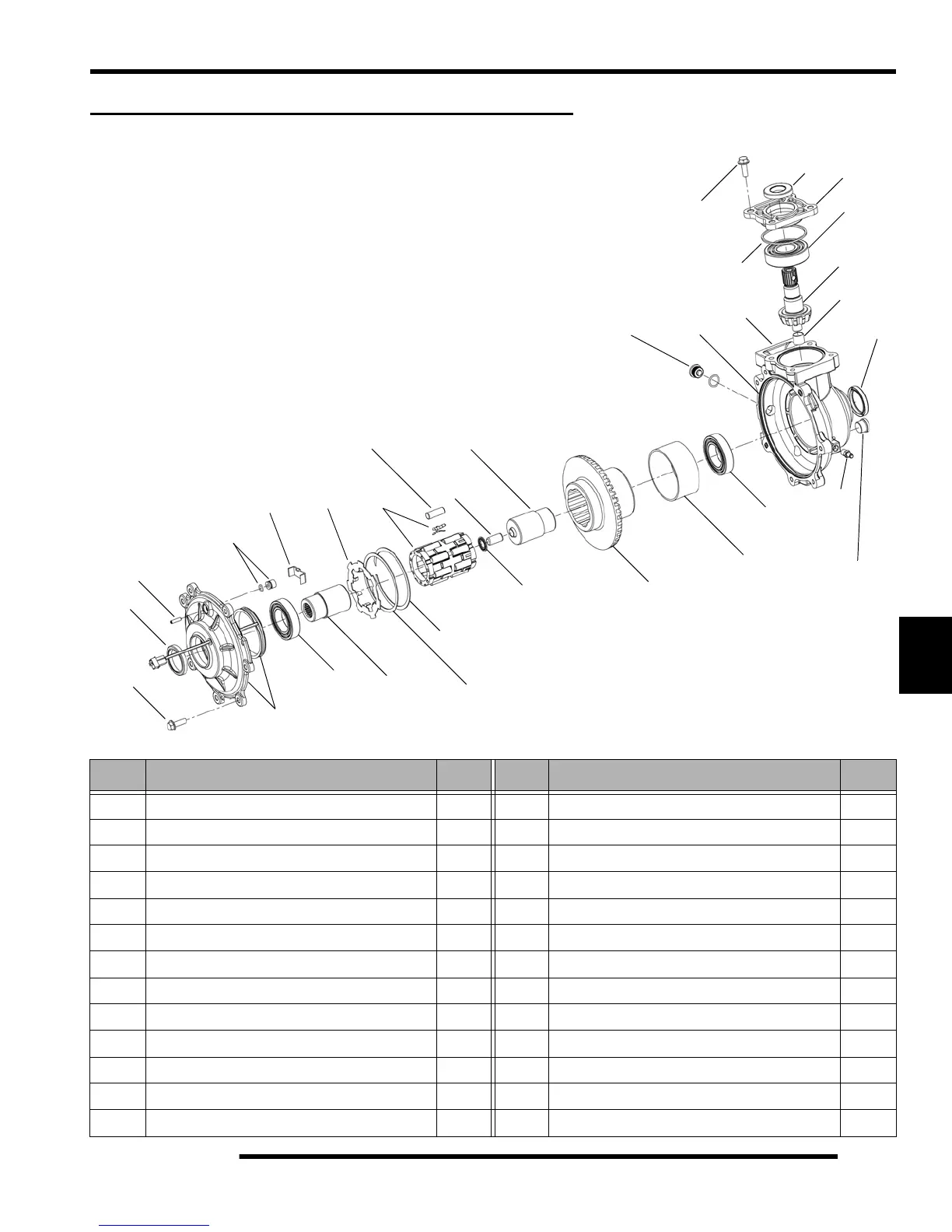

Centralized Hilliard Exploded View
REF# DESCRIPTION QTY REF# DESCRIPTION QTY
1 Thrust Button Asm. w/O-ring 1 14 Seal Kit (Includes O-rings and Seals) 1
2 Screw (5/16-18) 11 15 Roller Ball Bearing 1
3 Dowel Pin 1 16 Bushing 1
4 Roller Ball Bearing 2 17 Cover Plate Asm. w/Coil 1
5 Thrust Needle Bearing 1 18 Gearcase LH 1
6 Internal Retaining Ring 1 19 Input Cover 1
7 Clutch Housing / Ring Gear 1 20 Magnetic Drain Plug Asm. 1
8 Thrust Plate 1 21 Bushing 1
9 Roll Cage Asm. (Includes H-Springs) 1 22 Pinion Shaft Asm 1
10 Rollers 14 23 Fill Plug 1
11 Set Screw 1 24 Gear Spacer 1
12 Race / Output Hub Asm. 2 25 Vent Fitting 1
13 Armature Plate 1
1
2
3
4
5
8
9
10
11
12
13
16
17
18
19
21
22
23
15
14
7
24
25
6
10 ft. lbs.
(14 Nm)
8-30 ft. lbs.
(11-41 Nm)
17 ft. lbs.
(23 Nm)
4
12
14
14
14
14
2
17 ft. lbs.
(23 Nm)
20
