2.32
MAINTENANCE
BRAKE SYSTEM

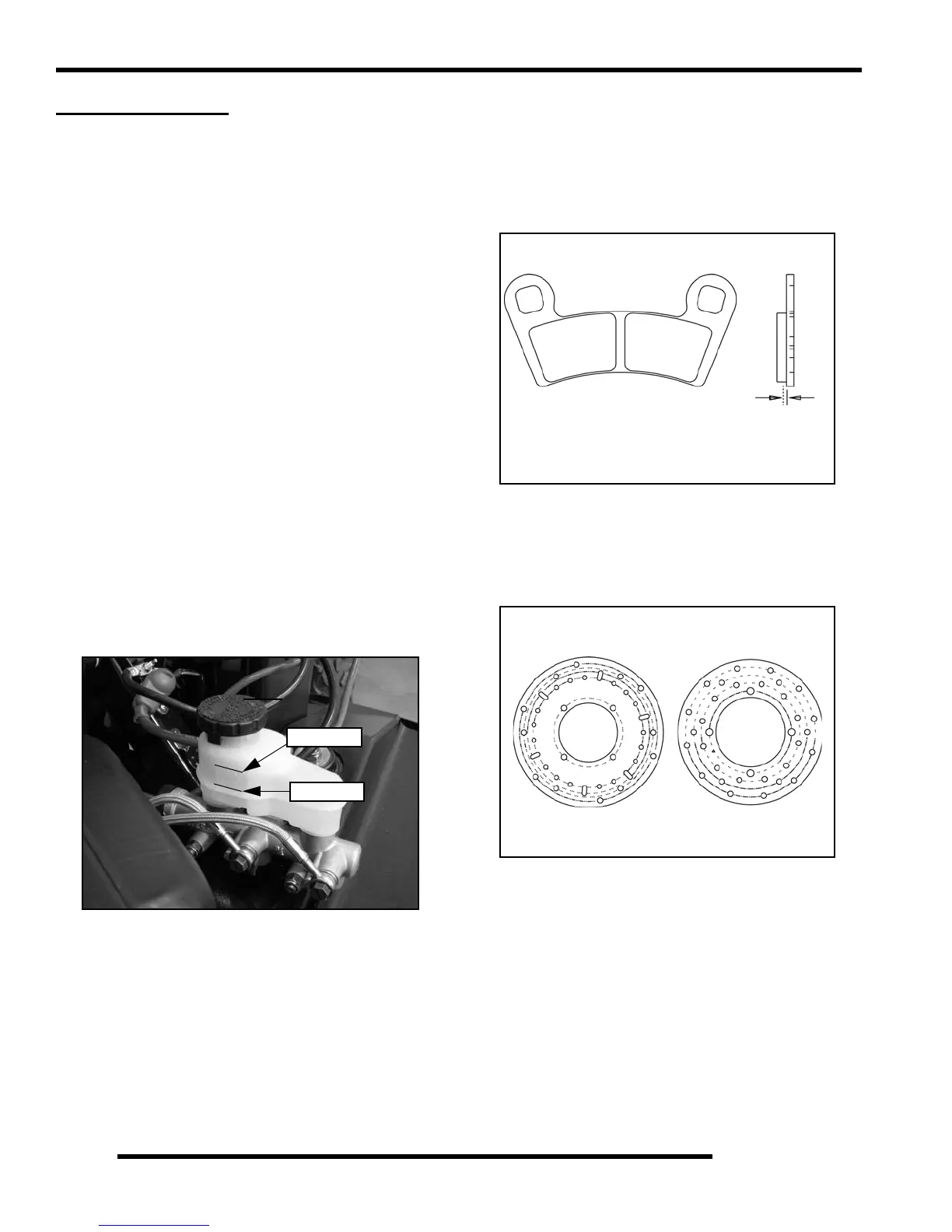

Brake Fluid Inspection
Always check the brake pedal travel and inspect the brake fluid
reservoir level before each operation. If the fluid level is low,
add DOT 4 brake fluid only.
Brake fluid should be changed every two years. The fluid
should also be changed anytime the fluid becomes
contaminated, the fluid level is below the minimum level, or if
the type and brand of the fluid in the reservoir is unknown.
The brake fluid master cylinder reservoir can be accessed by
lifting up the front hood.
1. Position the vehicle on a level surface.
2. Place the transmission in Neutral (N) and set the parking
brake.
3. View the brake fluid level in the reservoir. The level should
be between the MAX and MIN level lines.
4. If the fluid level is lower than the MIN level line, add brake
fluid until it reaches the MAX level line.
5. Install the reservoir cap and apply the brake pedal
forcefully for a few seconds and check for fluid leakage
around the master cylinder fittings and the brake caliper
fittings.
Brake Hose and Fitting Inspection
Check brake system hoses and fittings for cracks, deterioration,
abrasion, and leaks. Tighten any loose fittings and replace any
worn or damaged parts.
Brake Pad / Disc Inspection
1. Check the brake pads for wear, damage, or looseness.
2. Inspect the brake pad wear surface for excessive wear.
3. Pads should be changed when the friction material is worn
to .040” (1 mm).
4. Check surface condition of the brake discs.
5. Measure the thickness of the front and rear brake discs.
6. The disc(s) should be replaced if thickness is less than the
specified service limit (see Chapter 9 for specifications).
Parking Brake Cable Adjustment
When the parking brake is fully engaged and the parking brake
indicator is illuminated, engine speed is limited to 1300 RPM in
all gears, including neutral. If throttle is applied, this limiting
feature prevents operation, which protects the parking brake
pads from excessive wear.
NOTE: Inspect the parking brake cable tension after
the first 25 hours of operation and every 100 hours
of operation afterwards to ensure proper cable
tension.
Minimum
Maximum
Measure Pad Material
Service Limit:
.040" (1 mm)
Thickness
Measure Brake Disc Thickness
Front
Disc
Rear
Disc
