3.15
ENGINE
3

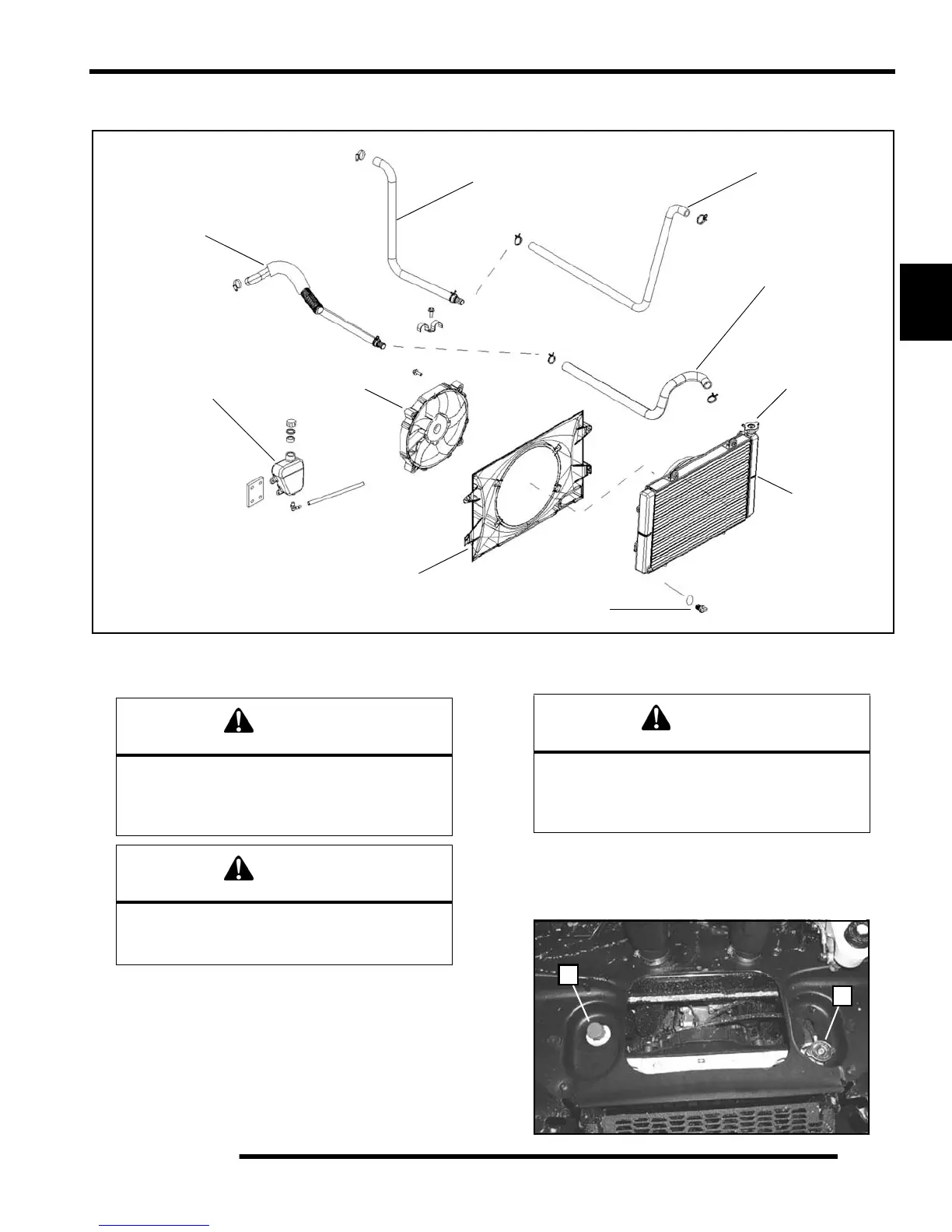

Cooling System Exploded View
Cooling System Bleeding Procedure
NOTE: If the coolant level is LOW in the radiator, or
if there are leaks in the system, the coolant system
will not draw coolant from the reservoir tank.
NOTE: Use this procedure when a unit overheats
and no apparent leaks in the cooling system are
found.
1. Place the vehicle in Neutral and set the parking brake.
2. Remove radiator cap (A) and top off coolant.
3. Remove surge tank fill cap (B) and fill the surge tank to the
full line.
Surge Tank
Engine Inlet Hose
Engine Outlet Hose
Radiator Inlet Hose
Radiator Outlet Hose
Shroud
Drain Plug
Radiator
Radiator Cap
Fan
WARNING
Always wear safety glasses and proper shop
clothing when performing the procedures in this
manual. Failing to do so may lead to possible
injury or death.
CAUTION
Use caution when performing these procedures.
Coolant may be hot and may cause
severe injury or burns.
CAUTION
Be sure the engine has cooled and there is no
pressure built up in the cooling system before
removing the radiator cap. The coolant may be
hot and could cause severe injury or burns.
A
B
To Next Page
