5.13
BODY / STEERING / SUSPENSION
5
STEERING ASSEMBLY

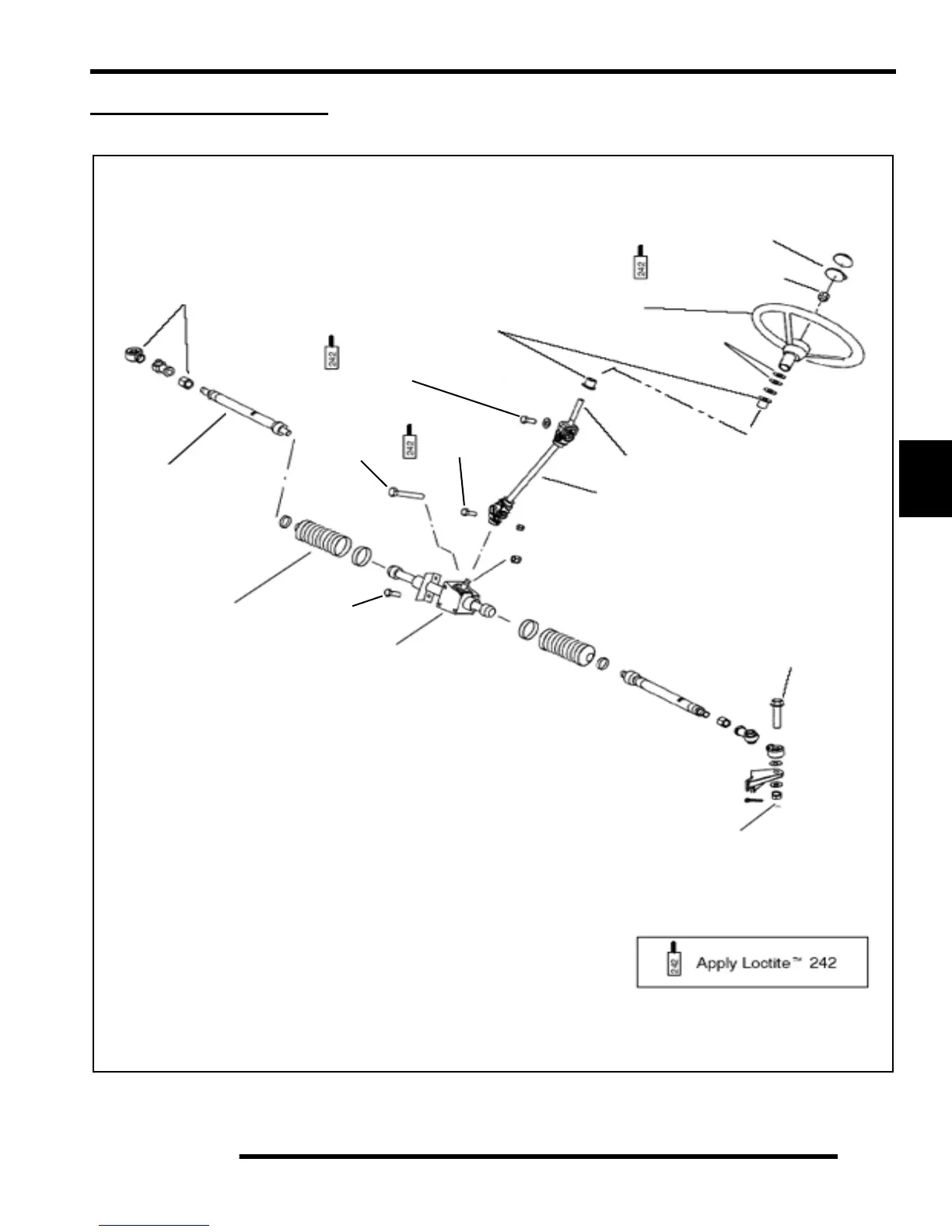

Exploded View
Rod End & Jam Nut
Boots
Steering Box
Tie Rod
End Bolt
Lower Steering Shaft
Upper Steering Shaft
Cap
Nut
Steering Wheel
Wave Washers
Bushing
28 ft. lbs.
(38 Nm)
30 ft. lbs.
(41 Nm)
17 ft. lbs.
(23 Nm)
40 ft. lbs.
(54 Nm)
16 ft. lbs.
(22 Nm)
16 ft. lbs.
(22 Nm)
Tie Rod
