FINAL DRIVE
7

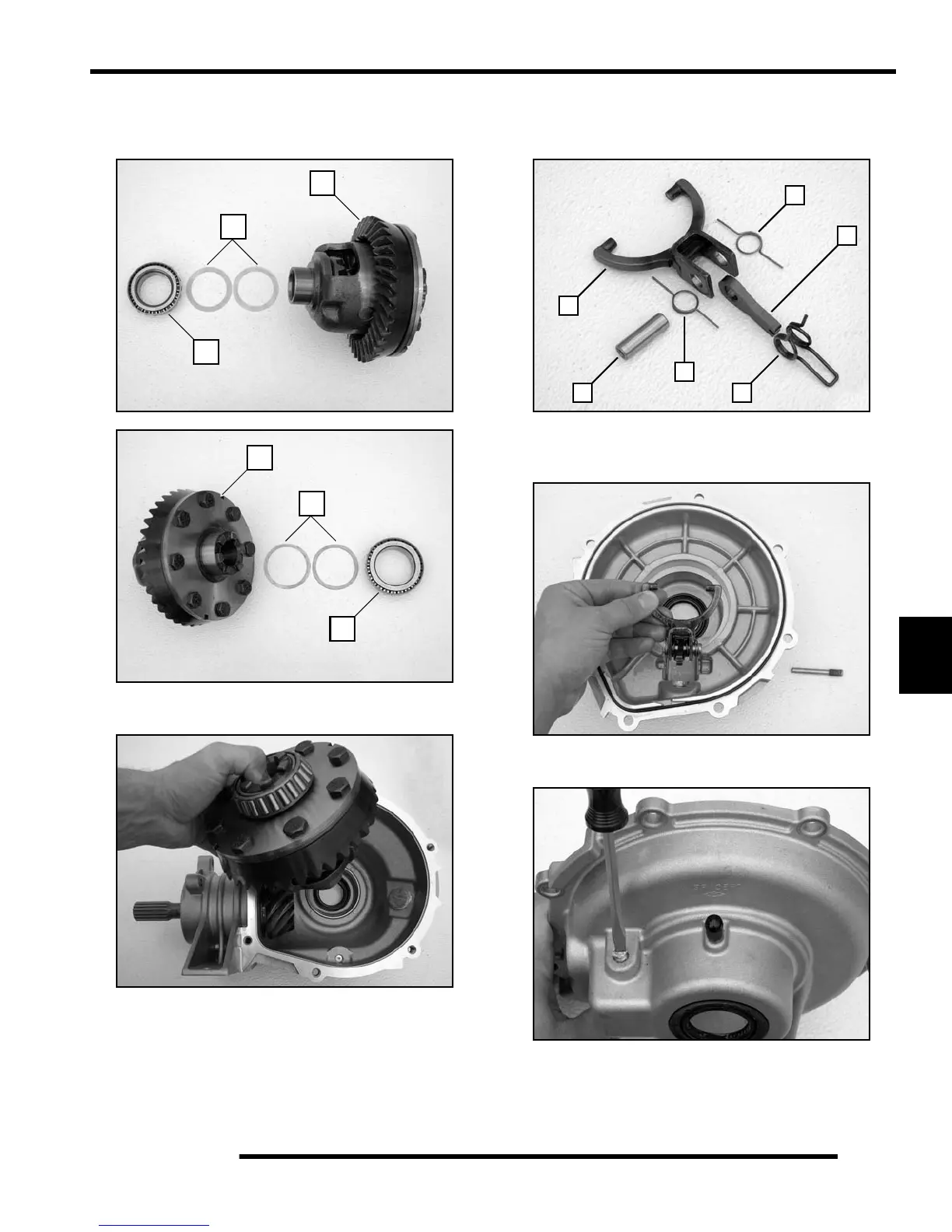

4. Install the original shims (A) onto the differential assembly
(B) on both sides. Install the bearings (C), replace with new
bearings if needed.
5. Install the differential assembly into the carrier housing.
6. If previously removed; assembly the shift lever (A), shift
lever spring (B), shift return springs (C), shift yoke (D), and
lock pin bushing (E).
7. Carefully install the shift yoke assembly into the gearcase
cover.
8. Install the lock assembly pin and tighten.
