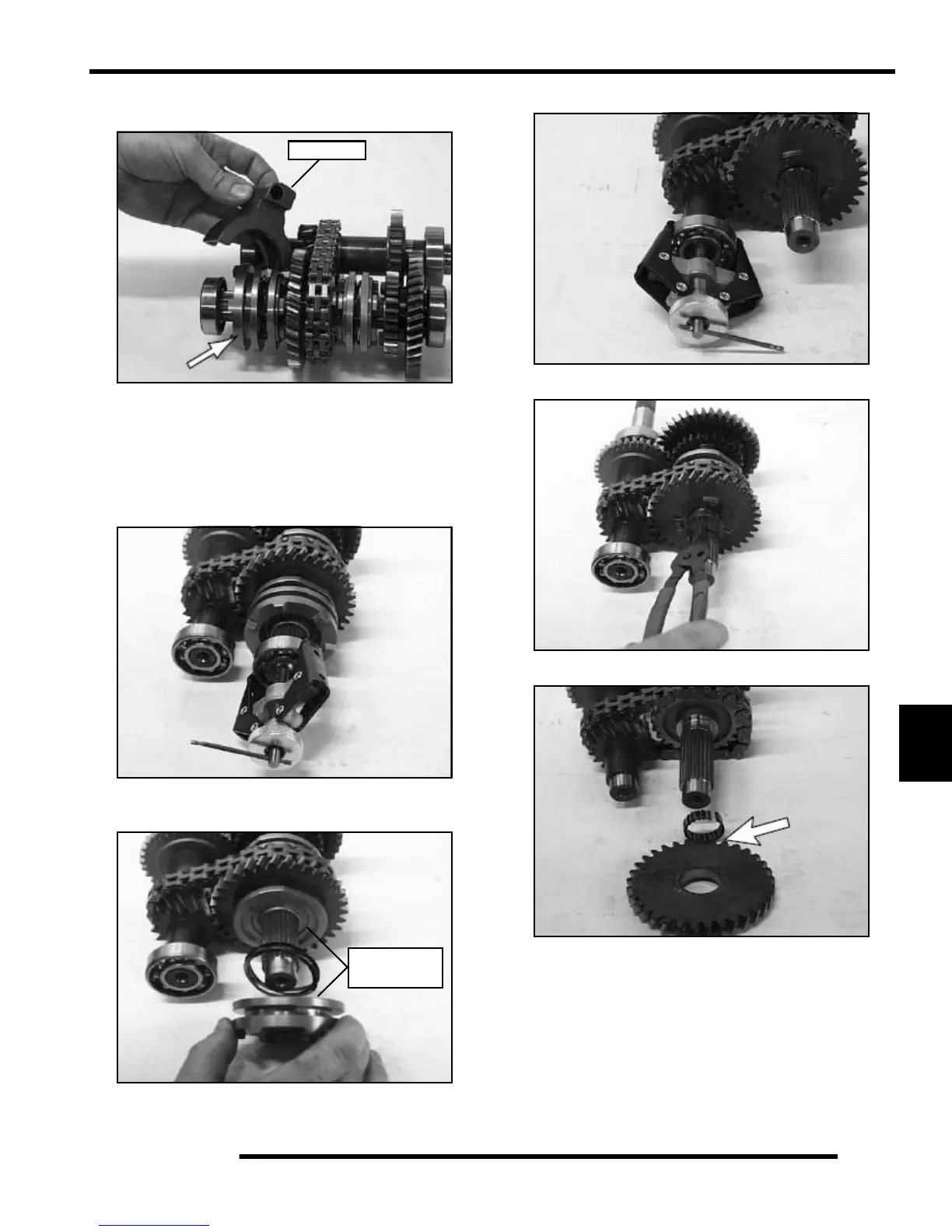

14. Remove the shift forks from the assembly. Note the correct
position of each fork.
NOTE: The picture above depicts a transmission
with a “Park” engagement dog on the end of the
shaft instead of a regular engagement dog. The
transmission will have a regular engagement dog in
the location indicated by the arrow in the photo.
15. Remove the bearing from the reverse shaft with a puller.
16. Remove the engagement dog. Remove the wave spring and
reverse engagement dog.
17. Remove the bearing from the input shaft with a puller.
18. Remove the snap ring and washer from the reverse shaft.
19. Remove low gear (33T) and the needle bearing.
20. Remove the reverse gear shaft.
Shift Fork
Engagement
Dogs
