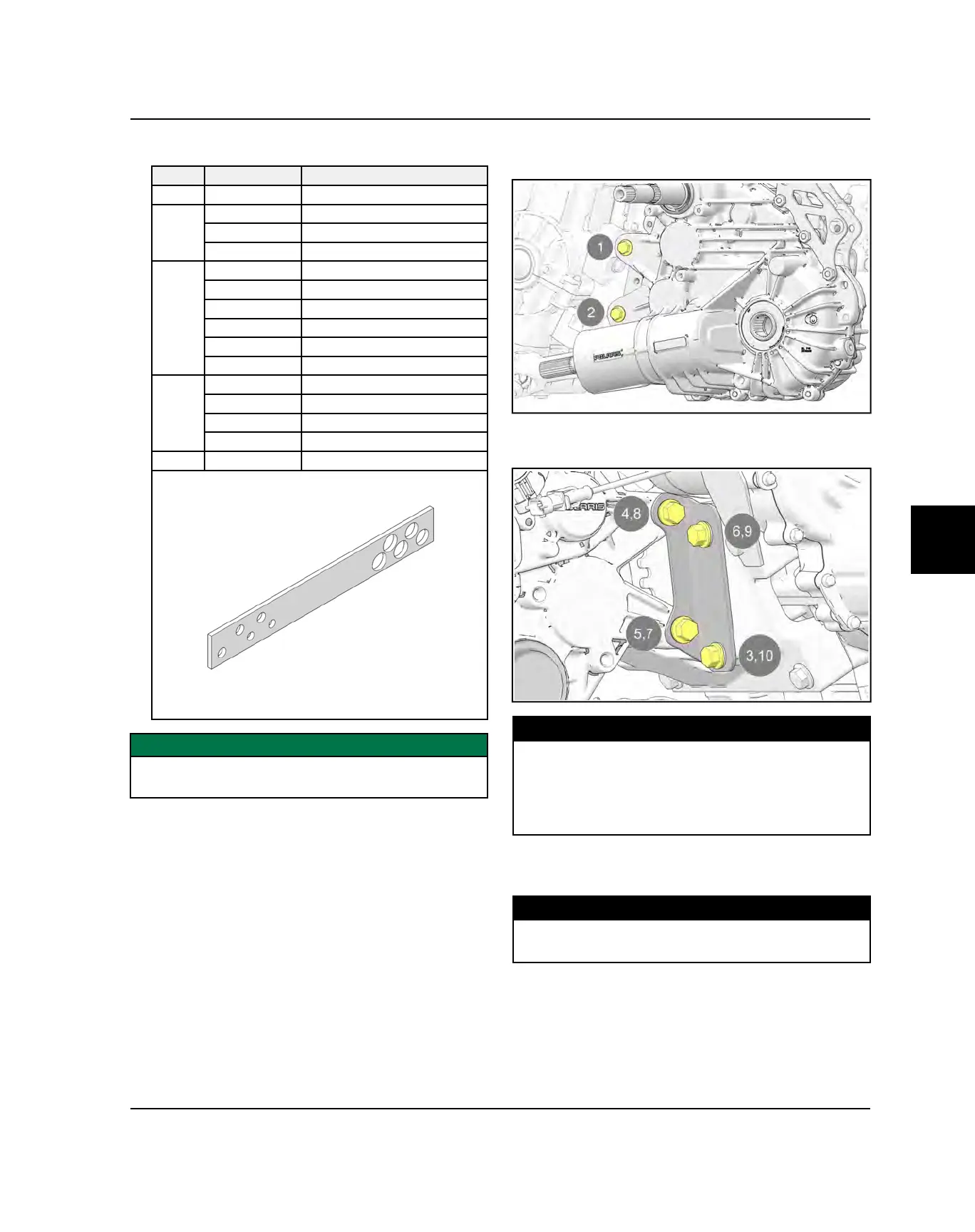

6.15
PU-50658–A
HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013
RANGER 900
3
2014-16 ACE
2015-19
ACE 570
2015-16 RGR ETX
2013–19 RZR 570
2014–19
RANGER 500/570
2015-19 RANGER 570 Full-Size
4
2014-19
RANGER 900/1000
2015-19 RZR 900
2016-19 RZR 1000
2016–19
ACE 900
5 2015-18 RANGER Diesel
i.e. 2015 RZR 900 uses the holes marked with a 4
IMPORTANT
Tool should bottom out on the transmission input shaft
and lay flush on the crankshaft.
7. Tighten the two longer bolts into left side mounting
holes. Top first, then bottom.
8. In sequence, torque the coupler bracket fasteners to
specification.
TORQUE
Engine / Transmission Mounting Bolts (In Sequence):
Step 1-2 Pre-Torque 5 ft-lbs (7 Nm)
Step 1-2 45 ft-lbs (61 Nm)
Step 3-6 Pre-Torque 5 ft-lbs (7 Nm)
Step 7-10 45 ft-lbs (61 Nm)
9. Torque the rear transmission mount fastener to
specification.
TORQUE
Rear Transmission Mount Bolt:
40 ft-lbs (54 Nm)
10.Remove the clutch center distance tool.
11. Remove the spacer or support between the vehicle
frame and engine.
TRANSMISSION
