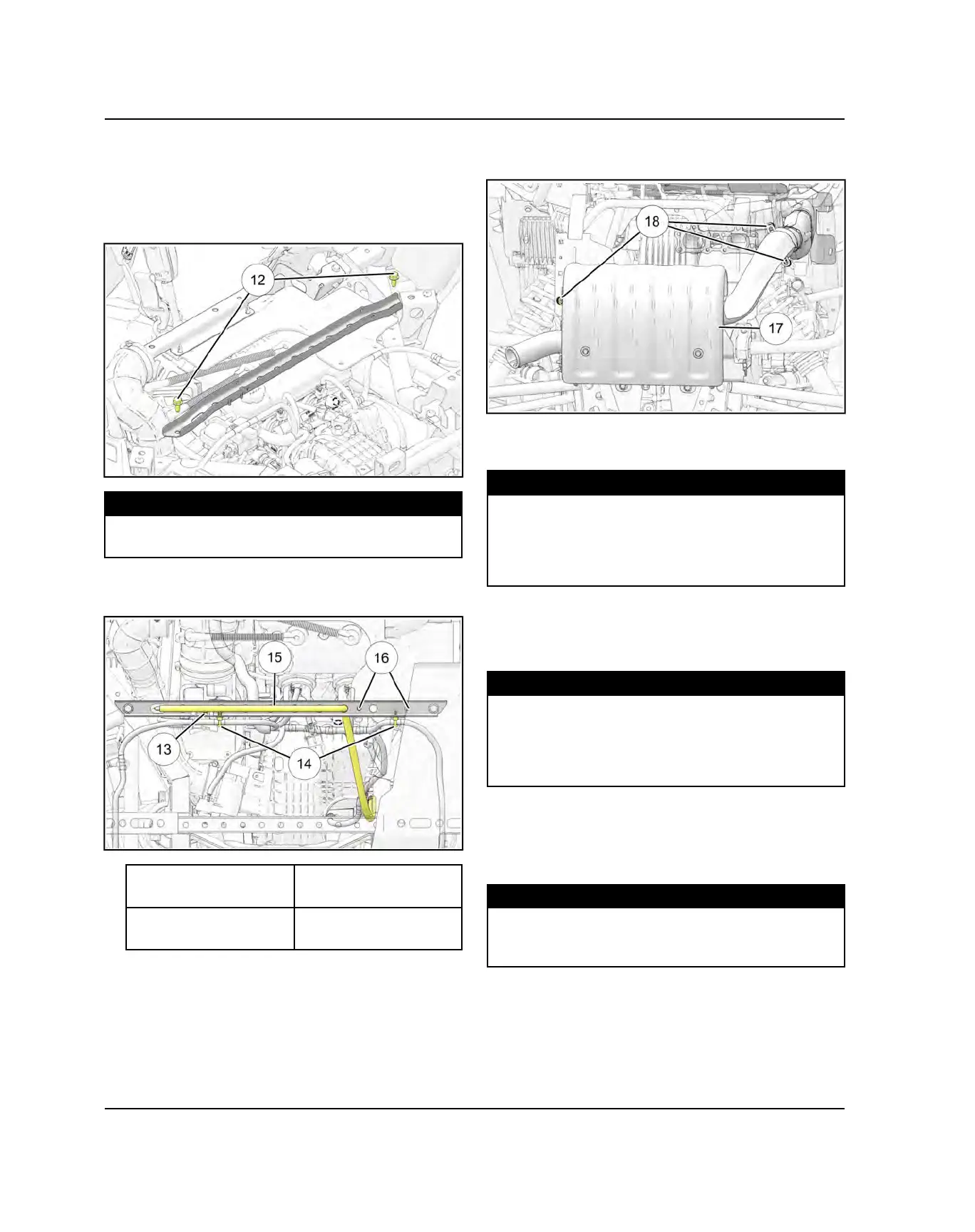

27.Properly lower the vehicle.
28.Install the air box assembly.
29.Install the rear frame brace. Torque screws
d
to
specification. Route the transmission vent hose
across the top of the brace.
TORQUE
Rear Frame Brace Screws:
14 ft-lbs (19 Nm)
30.Install or connect the following components to the
cargo box brace.
f
Ignition Coil Fastener
h
Transmission Vent
Line
g
Harness Retainers
j
Heat Shield Push
Rivets
31.Install the exhaust silencer
k
onto the exhaust pipe.
Secure with springs
l
.
32.Install the rear bumper and cargo box as an
assembly. Torque screws to specification.
TORQUE
Rear Bumper Upper Screws:
14 ft-lbs (19 Nm)
Cargo Box to Frame / Rear Bumper Lower Screws:
8 ft-lbs (11 Nm)
33.Connect the (-) negative battery cable.
34.Reinstall the rear ROPS tube assembly. Torque
fasteners to specifications.
TORQUE
ROPS Tube Fasteners:
30 ft-lbs (41 Nm)
Side Bolster Screws:
14 ft-lbs (19 Nm)
35.Install the engine compartment panel and seat.
36.If transmission lubricant was drained, fill the
transmission with the specified amount of Polaris
AGL
FLUID CAPACITY
Recommended Transmission Lubricant:
AGL (PN 2878068) (Quart)
Capacity: 44 oz. (1300 ml)
TRANSMISSION
