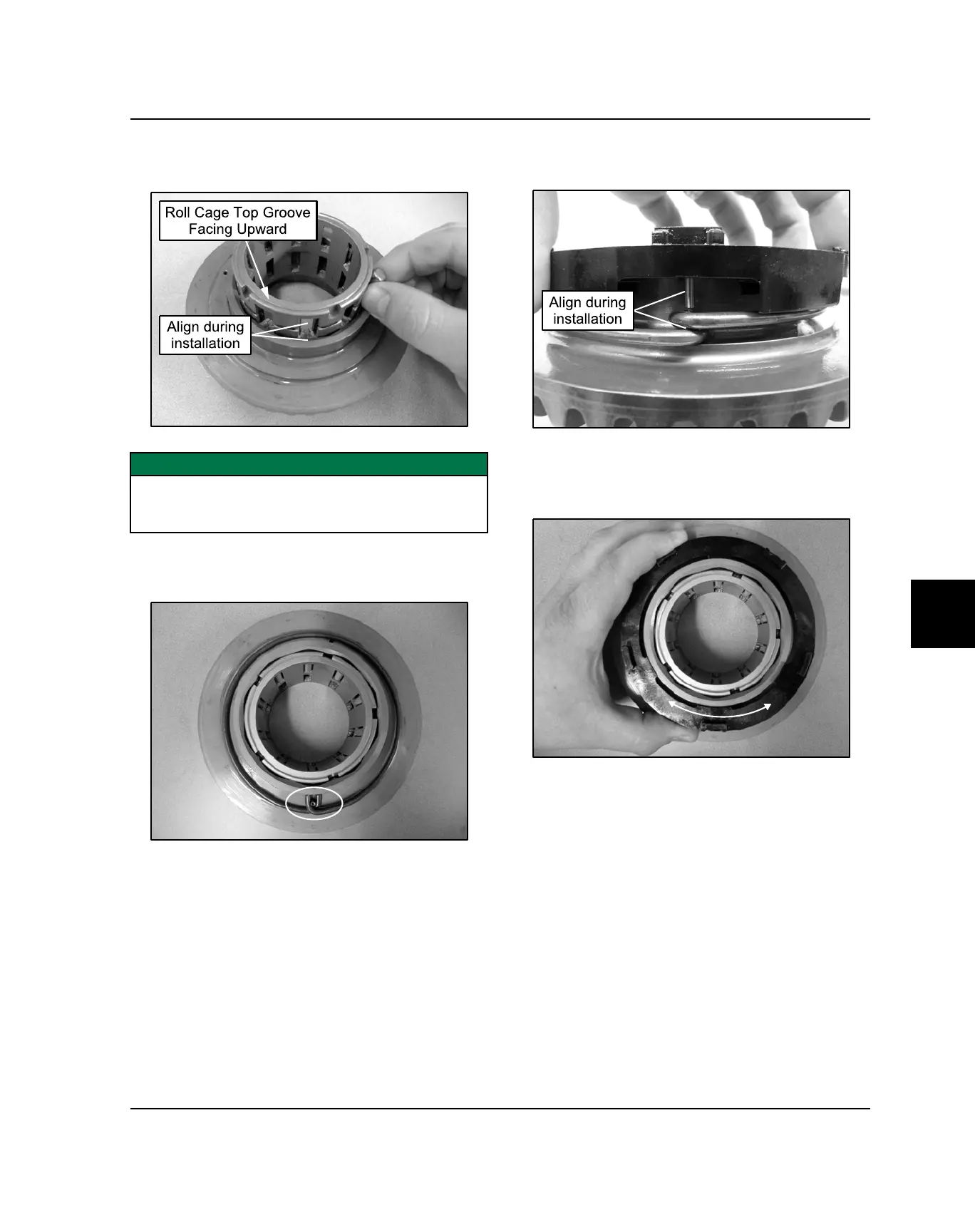

5. Carefully install the rollers into the roll cage assembly
while installing the assembly into the clutch housing.
IMPORTANT
Install roll cage so that the ring gear grooves line up
with the roll cage windows (see below). Be sure role
cage top groove is facing upward.
6. Install the torsion spring by wrapping each leg of the
spring around the dowel pin on the ring gear.
7. Align spring retainer dowel pin with ring gear dowel
pin and install the retainer on top of the torsion spring.
8. Check the action of the torsion spring by rotating in
both directions to ensure the spring and retainer are
installed properly.
