7.54
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.

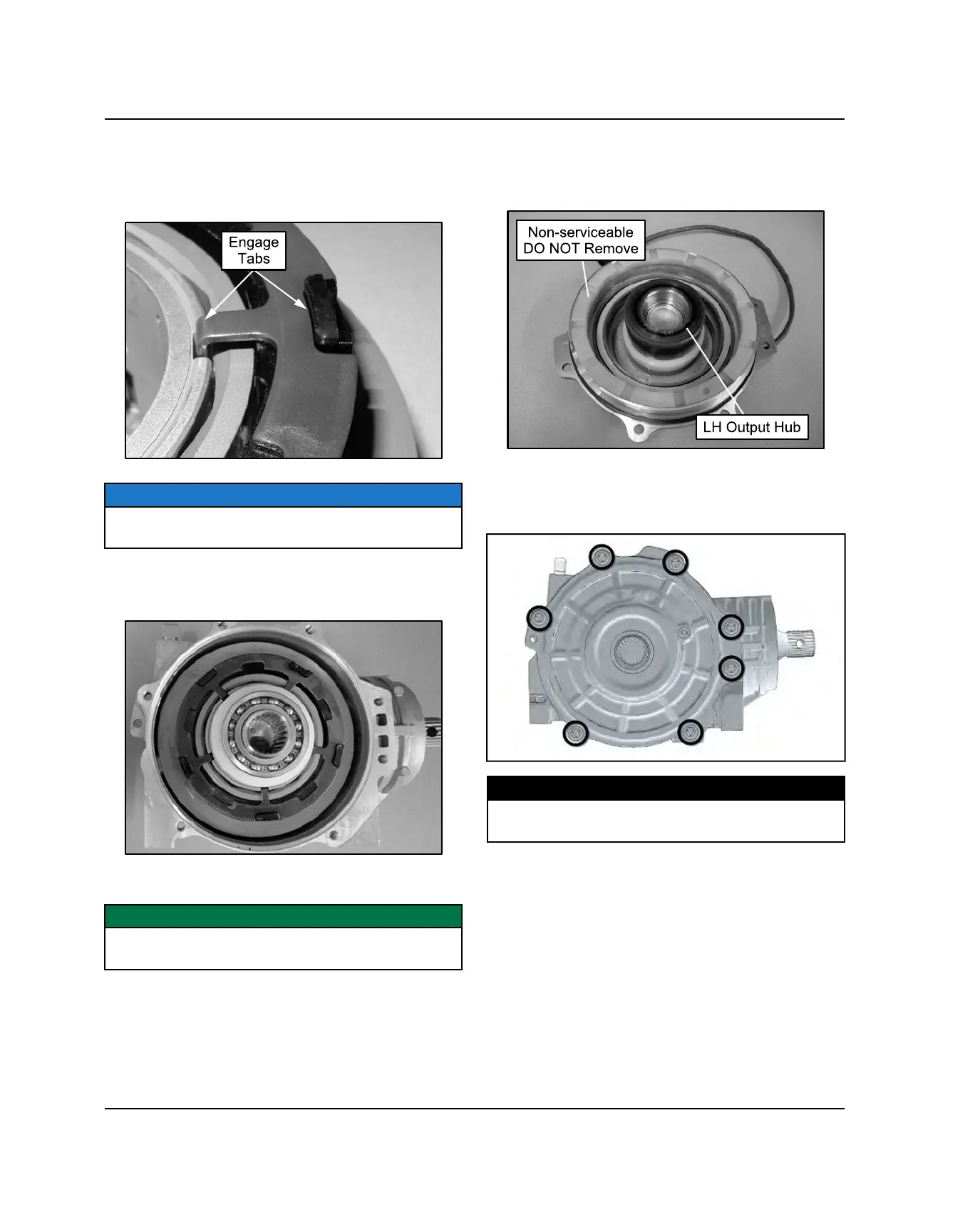

9. Install armature plate. Be sure all of the armature
plate tabs are fully engaged into the roll cage
assembly and that it is resting properly on the torsion
spring retainer.
NOTICE
Verify armature plate tabs are in the roll cage slots and
that it rests properly on the spring retainer.
10.Carefully install the ring gear and roll cage assembly
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
IMPORTANT
Be sure the square O-ring is placed flat on the cover
surface. If the O-ring is twisted fluid leakage may occur.
12.Carefully install the LH output hub assembly into the
cover plate. Take care not to damage the new cover
plate seal while installing the output hub.
13.Install the output cover assembly onto the gearcase
housing. Install the seven cover plate screws and
torque to specification.
TORQUE
Cover Plate Screws:
9 ft-lbs (12 Nm)
FINAL DRIVE
