9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
8.47

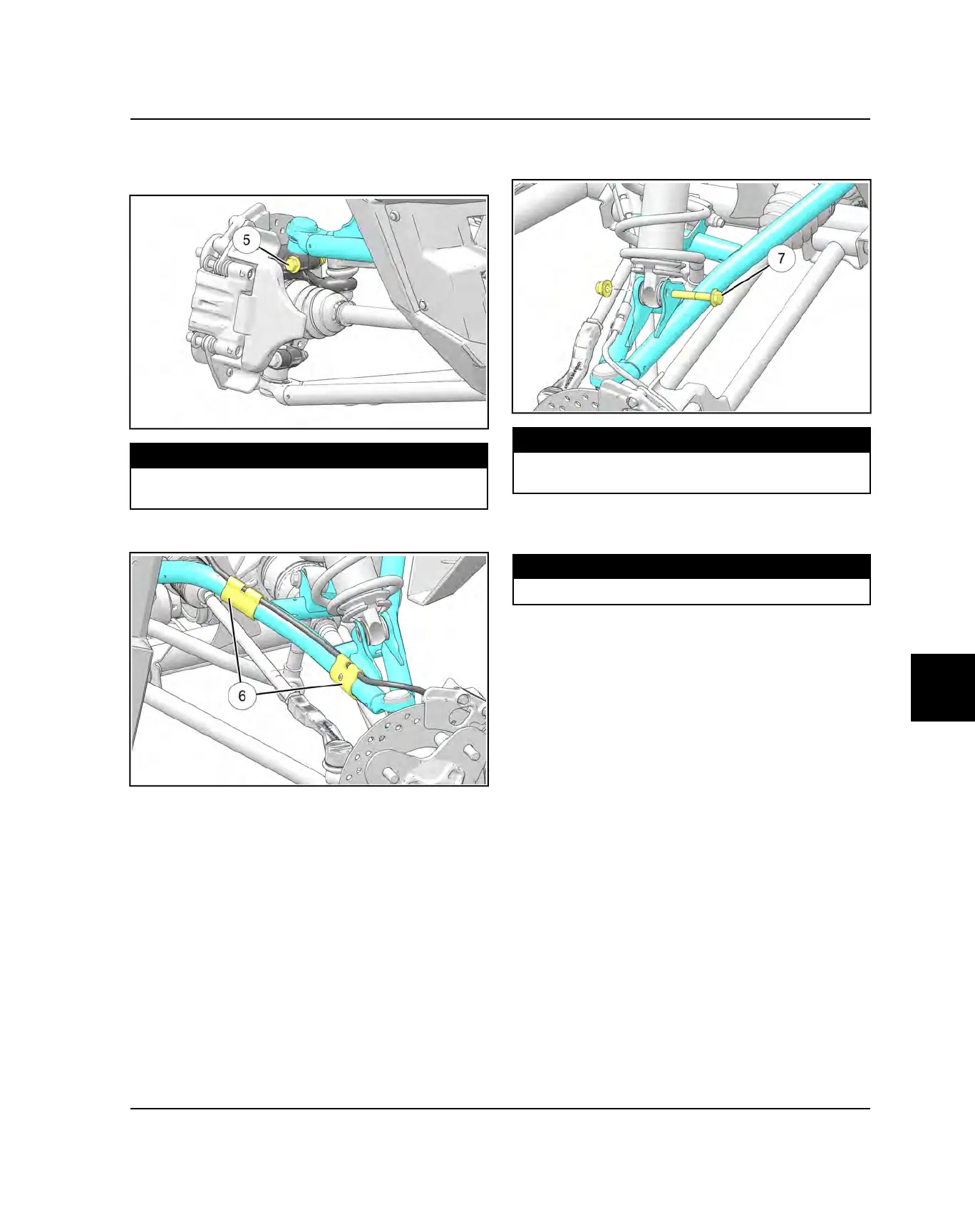

4. Insert upper control arm ball joint end into the bearing
carrier. Install upper ball joint pinch bolt
t
into the
bearing carrier and torque bolt to specification.
TORQUE
Ball Joint Pinch Bolts:
42 lb-ft (57 Nm)
5. Install brake line mounting brackets
y
.
6. Attach shock to control arm with fastener. Torque
lower shock bolt to specification.
TORQUE
Shock Mount Fasteners:
20 lb-ft (27 Nm) + 90°
7. Attach stabilizer link to control arm with fastener.
Torque to specification
TORQUE
Stabilizer Bar Link Fastener:(42 lb-ft (57 Nm))
8. Install NEW ball joint into control arm. Refer to “Ball
Joint Installation”page 8.56 procedure.
