LOWER CONTROL ARM

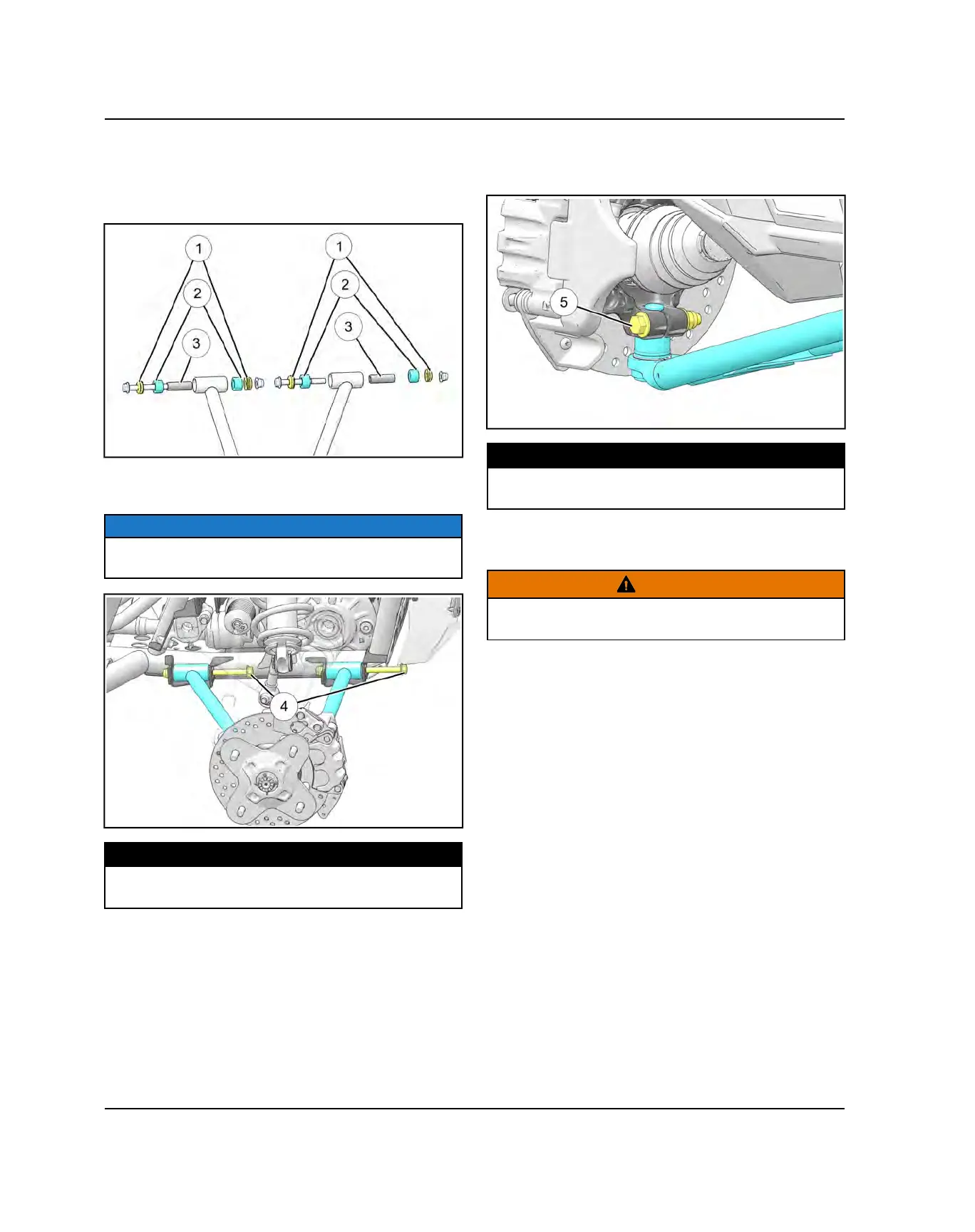

1. Insert NEW pivot caps
q
, control arm bushings
w
,
and pivot tube
e
into new control arm. A light press
force may be needed.
2. Install lower control arm assembly onto vehicle frame.
Torque NEW fasteners
r
to specification.
NOTICE
2019 models have M12 hardware.
2016–2018 models have M10 hardware.
TORQUE
Front Control Arm Fasteners:
42 lb-ft (57 Nm)
3. Insert lower control arm ball joint end into the bearing
carrier. Install lower ball joint pinch bolt into the
bearing carrier and torque bolt to specification.
TORQUE
Ball Joint Pinch Bolts:
42 lb-ft (57 Nm)
4. Install front wheels. Refer to “Wheel
Installation”page procedure.
WARNING
Upon control arm installation, test vehicle at low speeds
before putting into service.
