9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
10.33

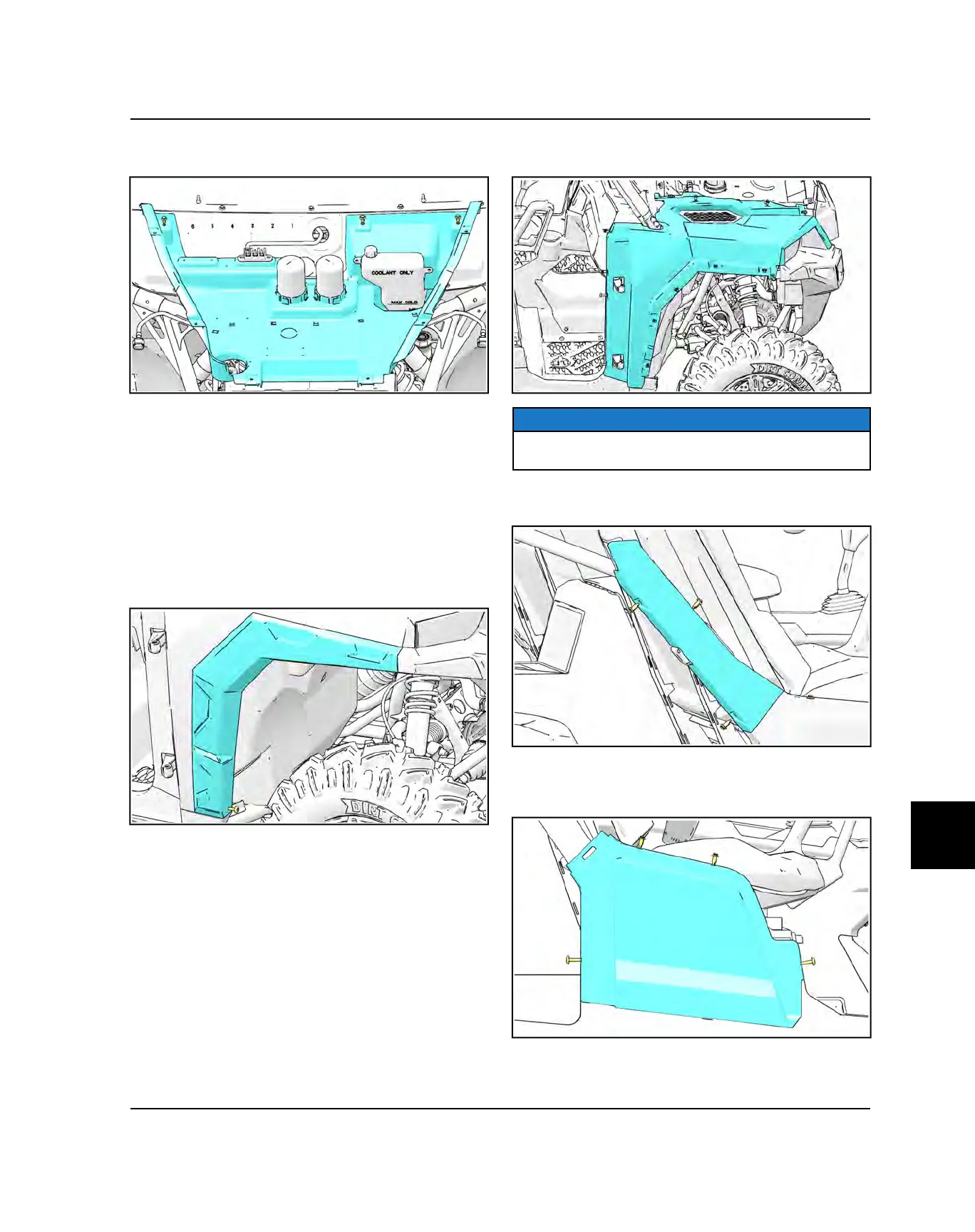

14.Remove the fasteners holding the hood liner to the
vehicle and remove the hood liner.
EXTERIOR BODY COMPONENT REMOVAL -
GENERAL 4 (2019)
1. Remove the hood from the vehicle. Refer to “Hood
Removal”page 10.25 procedure.
2. Remove the front bumper from the vehicle. Refer to
“Front Bumper Removal”page 10.26 procedure.
3. Remove the fastener holding the front fender flair to
the front fender. Pull the front fender flair from the
tabs holding it to the vehicle.
4. Remove the fasteners holding the front fender to the
vehicle. Pull the front fender off the vehicle.
NOTICE
Remove the front grill mesh to access the fasteners on
the front of the fender.
5. Remove the fasteners holding the center upper
fender to the vehicle. Pull the fender off the vehicle.
6. Remove the fasteners holding the center lower fender
to the vehicle. Pull the fender tabs up out of the
rocker panel.
7. Pull the cargo box handle and lift the cargo box out of
the way.
BODY / FRAME
