10.47

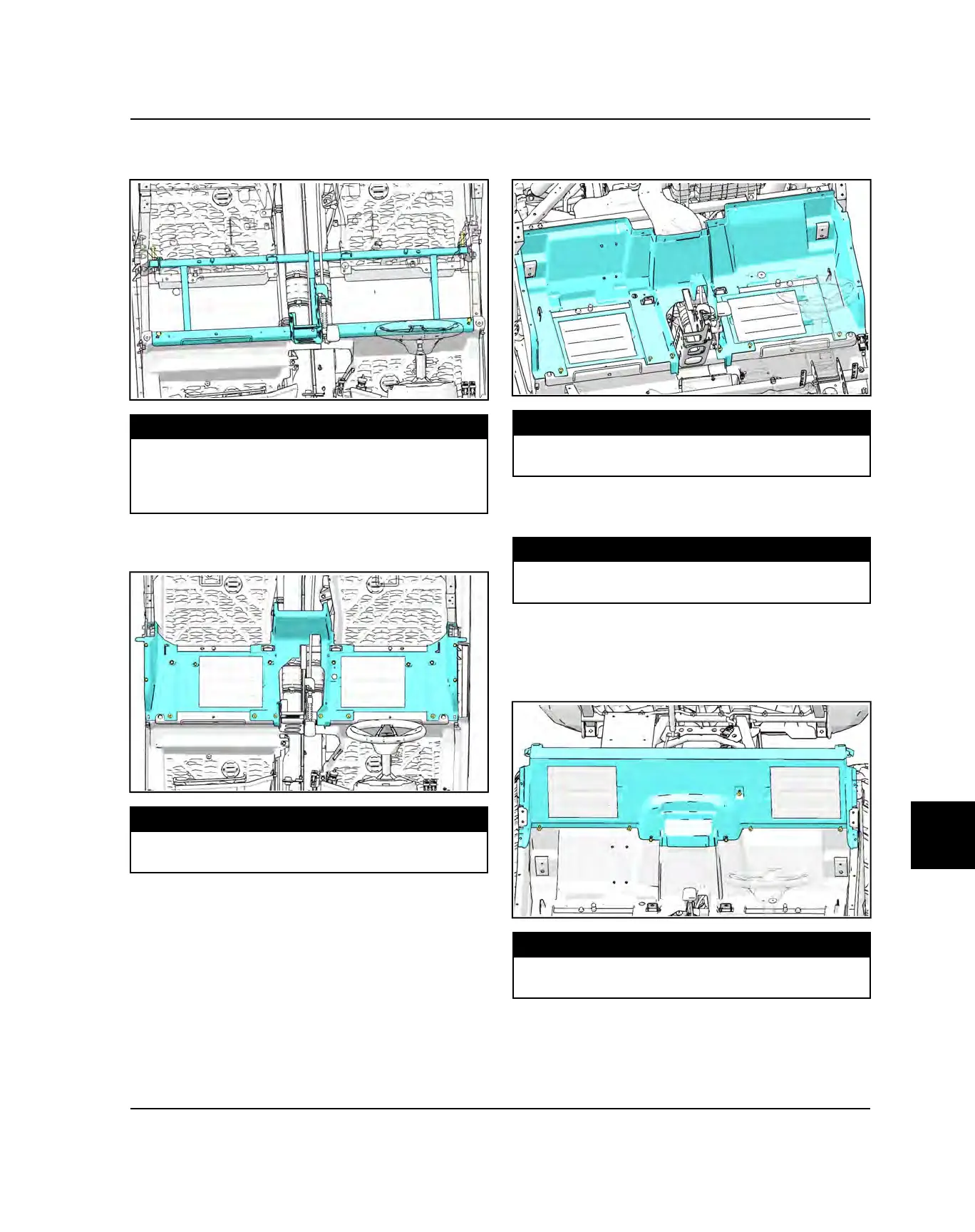

4. Install the fasteners holding the front seat base frame
to the vehicle. Torque fasteners to specification.
TORQUE
Front Seat Base Frame M8 Fasteners:
10 lb-ft (14 Nm)
Front Seat Base Frame M10 Fasteners:
40 lb-ft (54 Nm)
5. Install the fasteners holding the front close-of panel to
the vehicle. Torque fasteners to specification
TORQUE
Front Close-off Panel Fasteners:
3.5 lb-ft (4.7 Nm)
6. Install the fasteners holding the rear lower close-off
panel to the vehicle. Torque fasteners to specification.
TORQUE
Rear Lower Close-off Panel Fasteners:
3.5 lb-ft (4.7 Nm)
7. Install the seat belt buckles and seat belt shoulder
strap mounts.
TORQUE
Seat Belt Fasteners:
40 lb-ft (54 Nm)
8. Install the fuse box. Refer to “Fuse Box
Replacementpage 11.61” procedure.
9. Install the fasteners holding the rear upper close-off
panel to the vehicle. Torque fasteners to specification.
TORQUE
Rear Upper Close-off Panel Fasteners:
3.5 lb-ft (4.7 Nm)
10.Install the ECU. Refer to “ECU Replacementpage
11.43” procedure.
BODY / FRAME
