4.18
FUEL SYSTEM / CARBURETION
FUEL TANK/FUEL DELIVERY SYSTEM

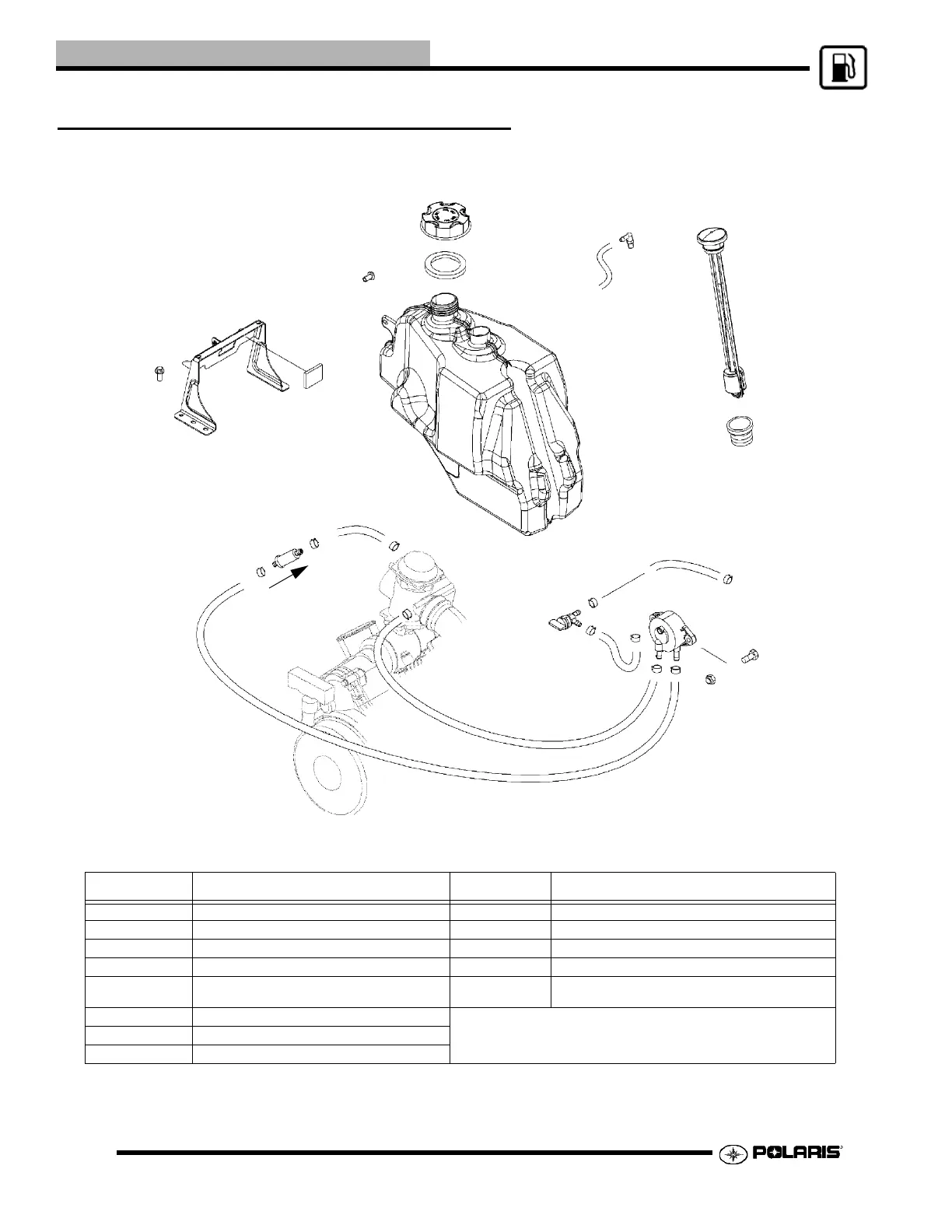

Fuel Tank / Fuel Delivery System
Table 4-5: Fuel Tank / Fuel Delivery System
Reference Description Reference Description
A Fuel Cap J Hose (Fuel Tank-To-Supply petcock)
B Fuel Cap O Ring K Fuel Pump
C Fuel Level Gauge L Hose (Fuel Pump-To-Carburetor)
D Fuel Tank Vent M Hose (Fuel Pump-To-Carburetor Vacuum Impulse)
E Fuel Tank Hold-Down Bracket / Pad N
Fuel Filter (Arrow points in direction of fuel flow to
carburetor.)
FFuel Tank
G Fuel Supply Petcock
H Hose (Supply Petcock-To-Fuel Pump)
A
B
C
D
E
F
G
H
J
K
L
M
N
