BODY AND STEERING
STEERING POST REMOVAL

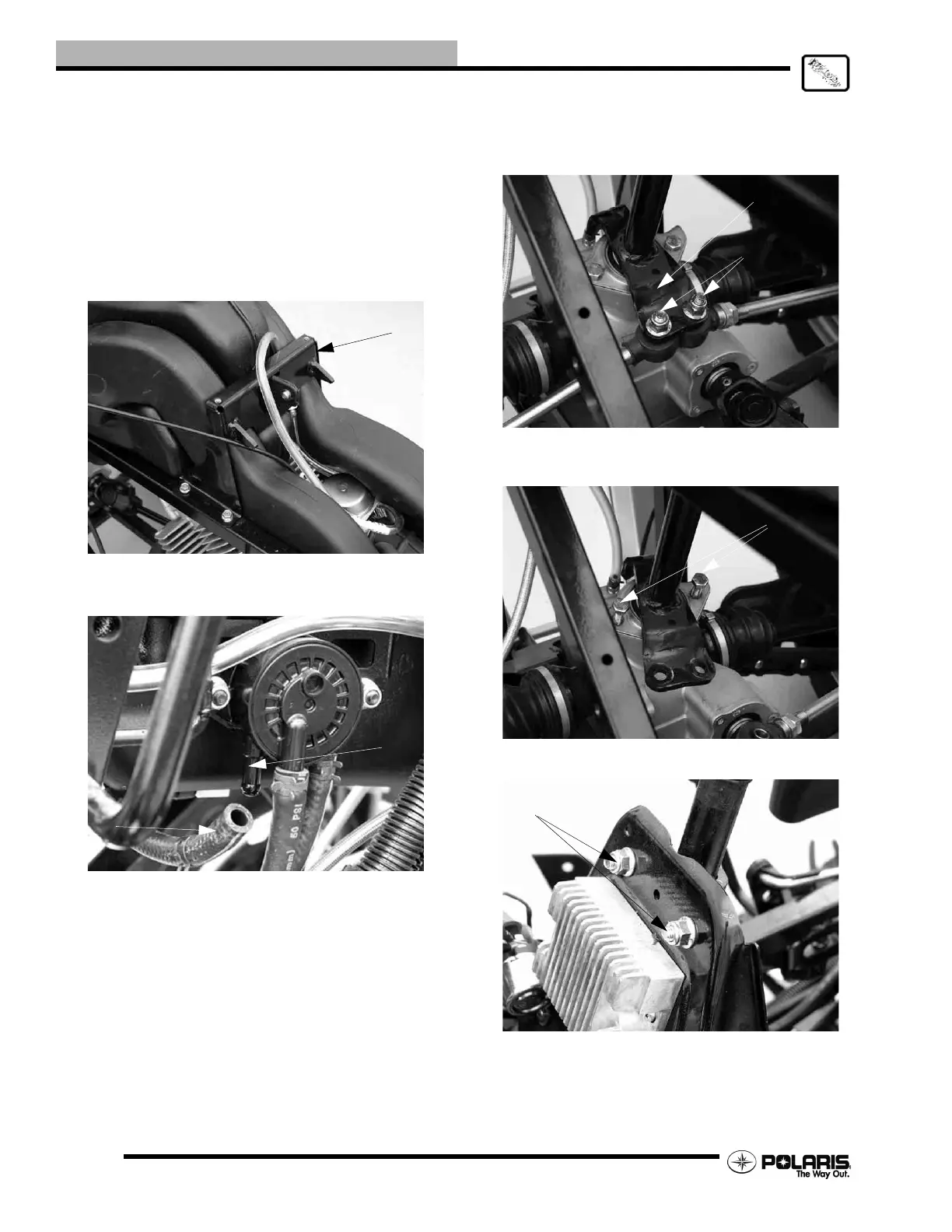

1. Remove the front cab. See “FRONT CAB/FENDER” on
page 5.3.
2. Remove the handle bar pod. See “POD/KEY SWITCH/
CHOKE/SPEEDO CONNECTION REMOVAL/
INSTALLATION” on page 5.8.
3. Remove the handle bar. See “HANDLEBAR
REMOVAL” on page 5.8.
4. Remove the fuel tank bracket (A).
5. Turn the fuel valve to the “OFF” position
6. Remove the fuel line (B) from the fuel pump (C).
7. Remove the vent line from the frame that comes from the
top of the fuel tank. Note the vent line routing.
8. Remove the fuel tank from the frame.
9. Remove the steering tie rod ends (D) from the steering
bracket (E). Note the orentation of the fasteners and
bracket on the steering assembly.
10. Remove the steering post bracket (F) at the front gear case
(4x4 shown)/plate (2x4).
11. Remove the top steering bracket (G).
12. Remove the steering post.
A
C
B
D
E
F
G
