5.4
BODY AND STEERING
FRONT CAB/FENDER REMOVAL
For this procedure please refer to the diagram on page 5.3.
1. Remove the seat.
2. Remove the fuel tank cover (4).
3. Remove the side panels (1,3).

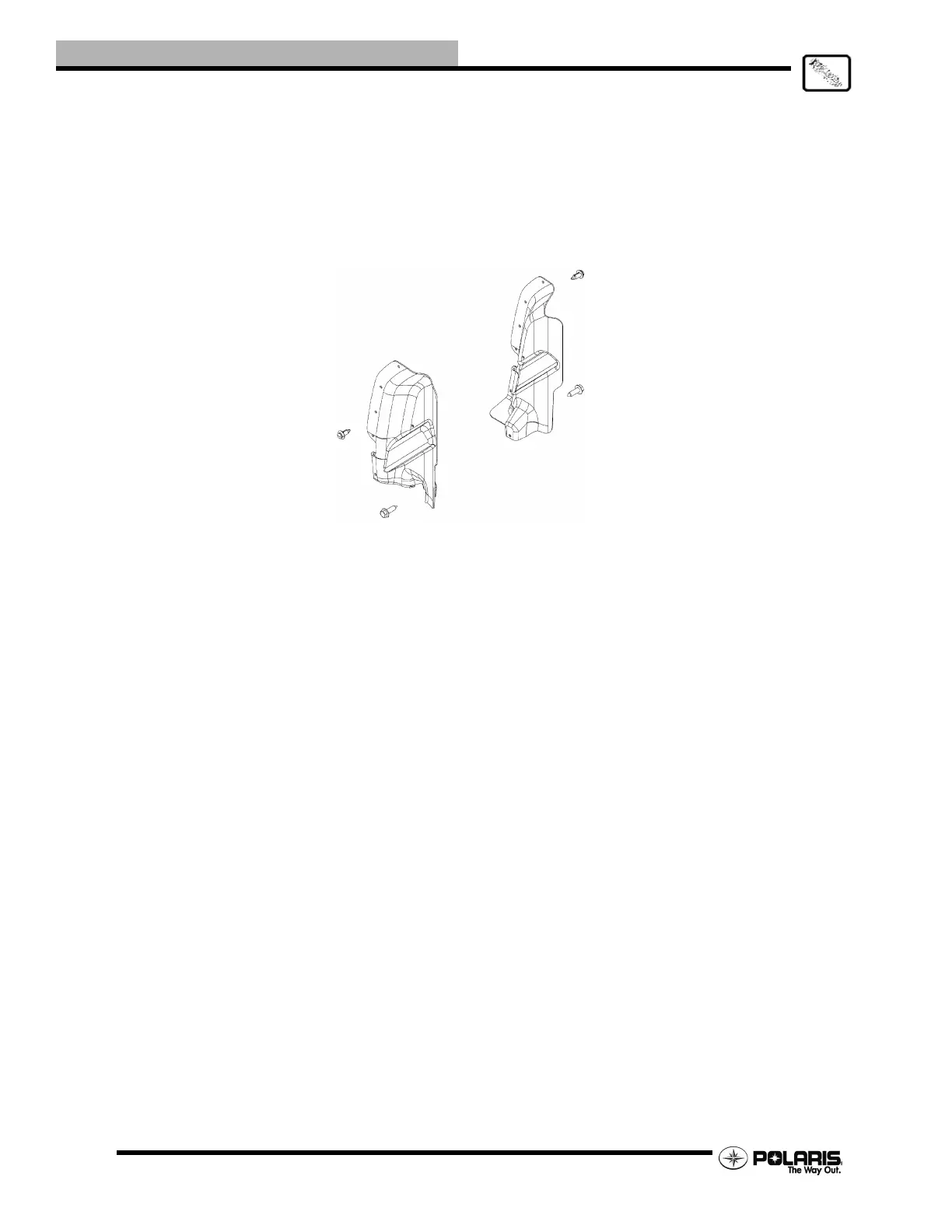

4. Remove the plastic rivets on the mud guards (below) and remove them from the front cab assembly.
5. Remove the battery connections (negative first).
6. Remove the battery from the battery compartment.
7. Route the battery cables through the front compartment.
8. Remove the front cab fasteners (8).
9. Remove the plastic rivets from the footwells.
10. Carefully lift off the front cab.
FRONT CAB/FENDER INSTALATION
For this procedure please refer to the diagram on page 5.3.
1. Carefully place front of the cab onto the frame.
2. Route the battery connections through the cab and into the battery box.
3. Insert the mud guards and plastic rivets.
4. Replace the fuel tank cover (4).
5. Replace the plastic rivets into the footwells.
6. Install the front cab fasteners.
7. Install the battery.
